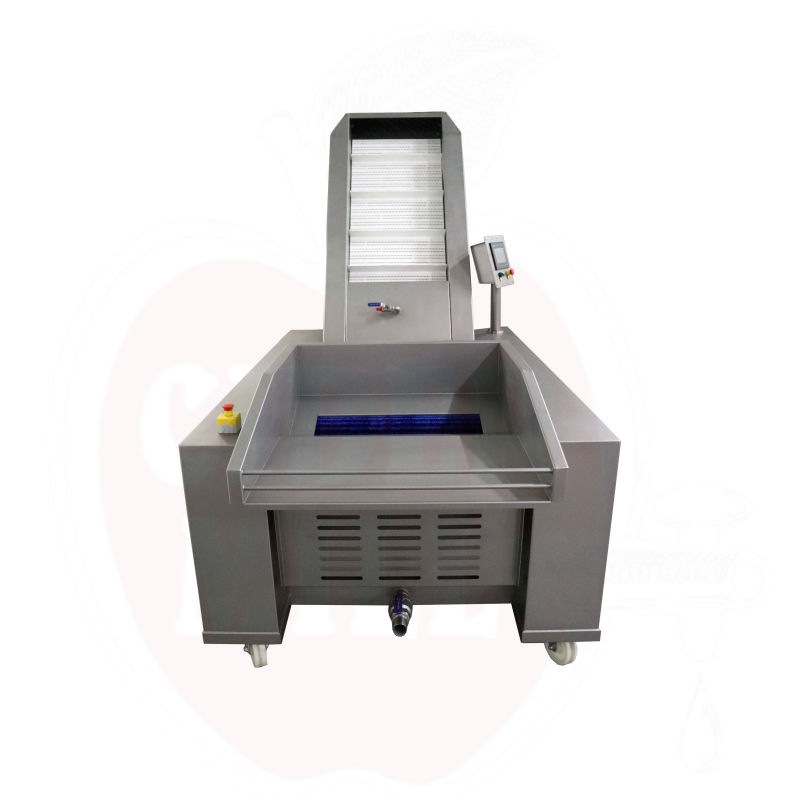

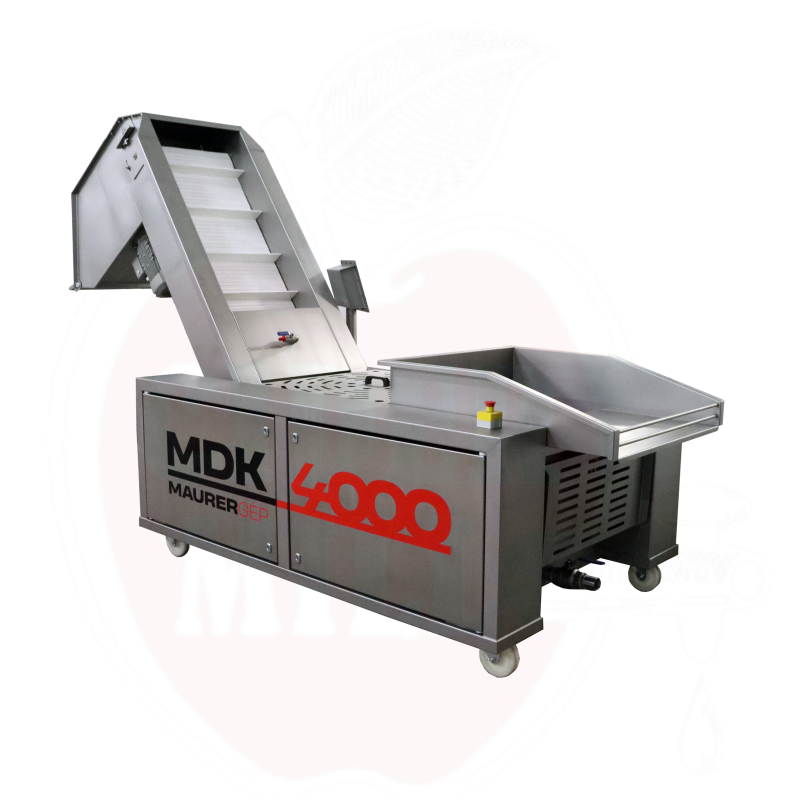

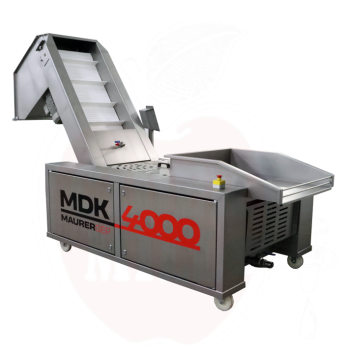

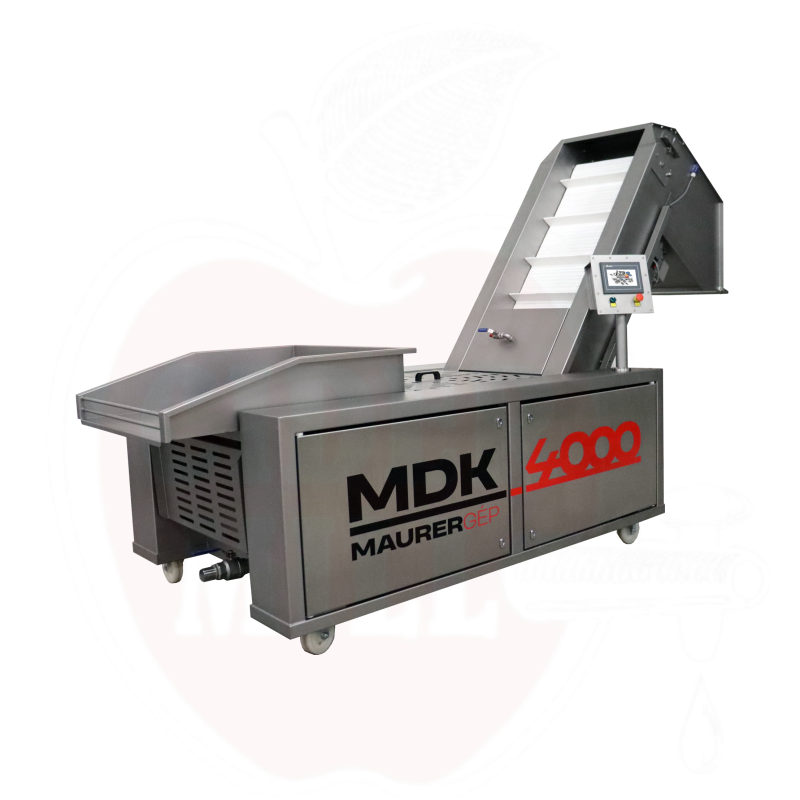

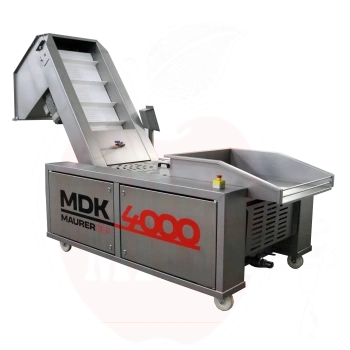

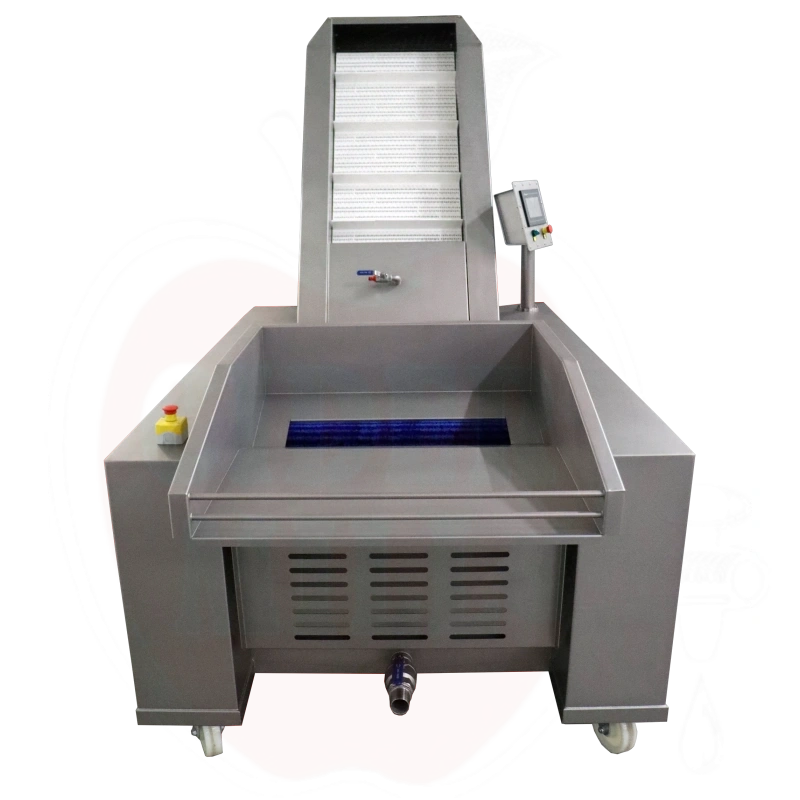

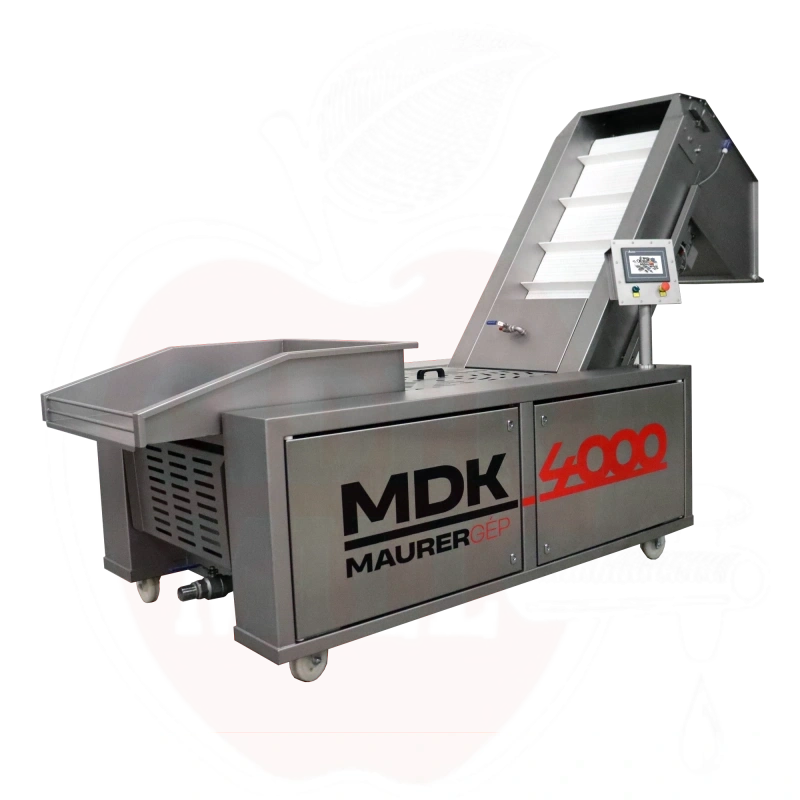

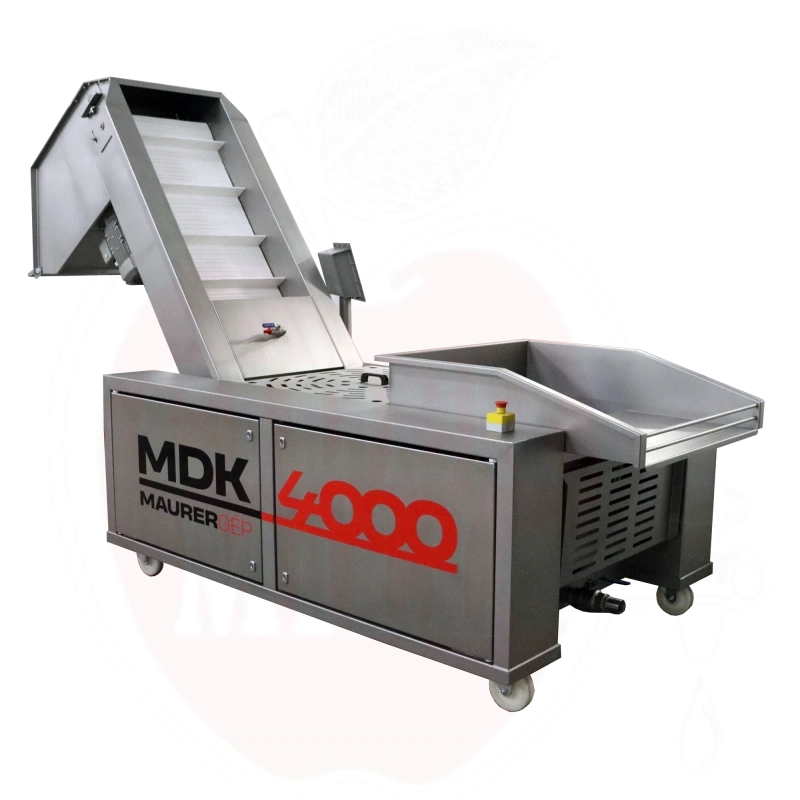

Washer belt with brusher and openable grinder MDK4000

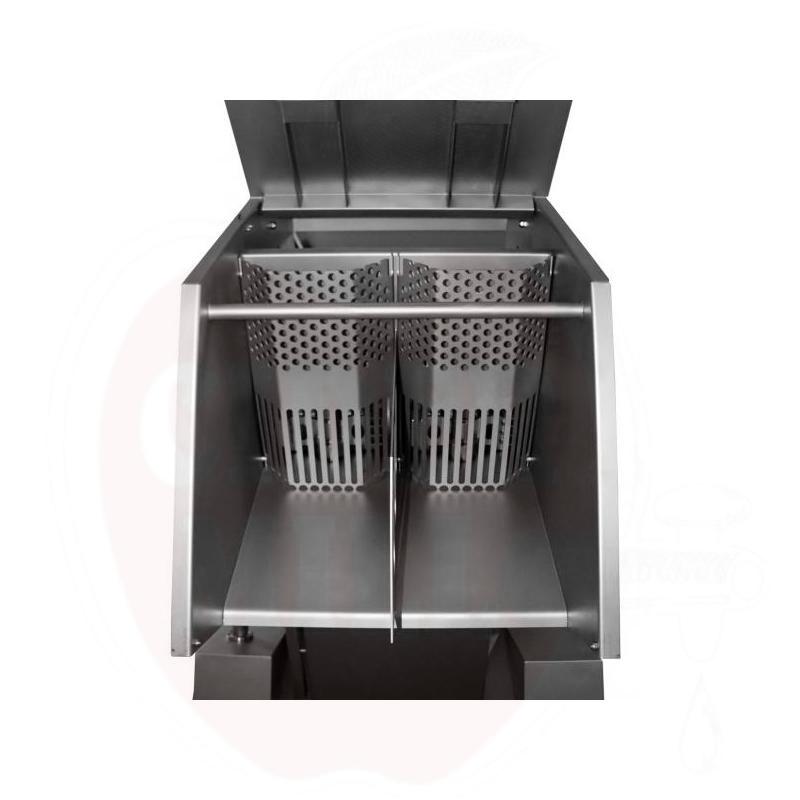

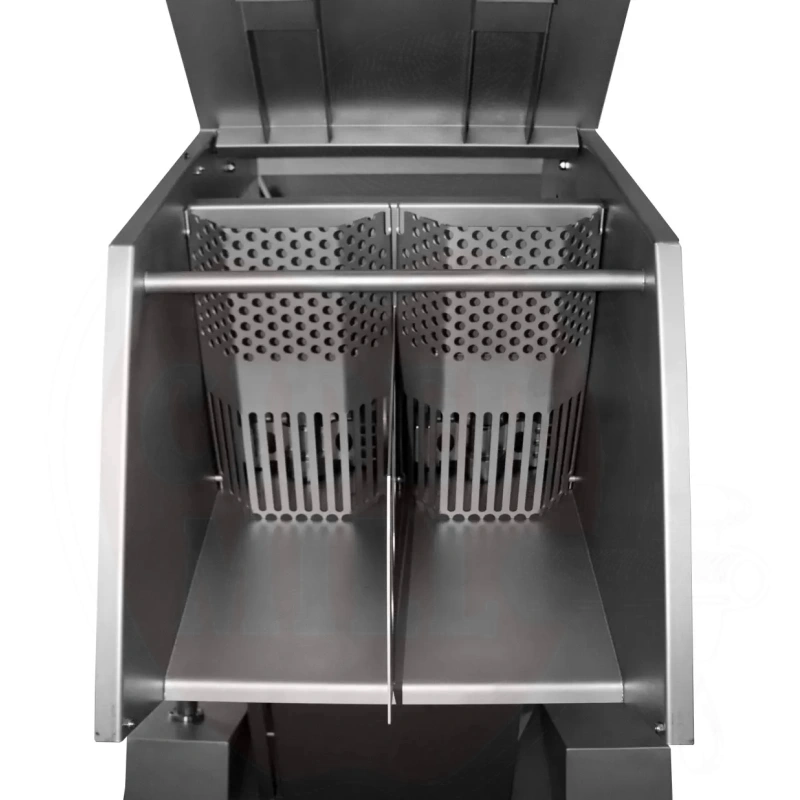

The fruits get via the input hopper through the brushes to the soaking stage. From there the elevator towards the fruit under the secondary clearwater sprays. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both directions. Mounted on 2ea. swivel, 2ea. lockable wheels or on adjustable Anti-vibration feet. Requires minimal maintenance.Specifications:• Performance: 3000 kg/h• Electric demands: 5 kW, 400 V, 16 A, triphase• Material: WNr. 1.4301, AISI 304 stainless steel• Dimensions: 950x3660x2120mm• Output height: 1270 mm• Weight: 360 kg• Tub water capacity: 440 L/shift• Washing water supply: (100-200L/h depending on the setting)• Water connection: 3/4“ quick connector• IP65 certified electronics• Grinder with a massive crushing hammer (available for beetroot and quince)• The grinder can be bypassed by swinging to the side so in this case the machine is used to process stone fruits.• Noise emission: 60-70 dB• 4 pcs of strong, counter-rotating brushes for the intense cleaning• Rotating paddle, that pushes the fruits towards the elevatorAvailable options:– Changeable diameter sieve: for changing the texture of the mash– Stop ‘n’ Go system: membrane sensor, which synchronizes the fruit washer/grinder and the belt press to work together– Adaptive freshwater spray – fresh water spray nozzles are active only when the elevator is going– Air-blow module – built-in air nozzles in the tub area powered by a turbo-fan for the intense washing or sinking fruits – Air-knife module – the air-knife removes the water droplets on the surface of the fruits, thus reducing the amount of water reaching the end product.– Circulating water pump with raw filter
