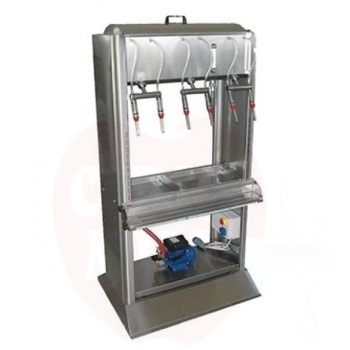

Trolley type 6 filling heads (hot filling)

High-quality self-priming pump with Italian rubber membrane (EPDM membrane) for pumping various feed liquids (NBSB). CE certified for food products, liquid temperature up to +90C; productivity up to 1000l/h; Motor power 0.37kw/3F or 1F; with NBR seal, Dimensions: 330x180x280 mm; Weight 6 kg. Corolla or BSP 3/4 connection included, other connections at extra cost..

Standard bottling nozzle cone seals for Enoitalia bottling equipment.

Stainless bottling device for 4 bottles. Made in Italy. Bottling nozzles 15mm; adjustment of the amount of liquid on the bottle tips; stainless drain valve; productivity 700l/h; Size: 580x1070x500 mm; Weight 38 kg. Additional equipment: mechanical or electronic volume sensor, pump, electronic input valve, foam reduction valve (e.g. when bottling beer), bottling nozzles 17mm..

Stainless bottling device for 4 bottles. Made in Italy. Bottling nozzles 15mm; adjustment of the amount of liquid on the bottle tips; stainless drain valve; productivity 700l/h; Size: 580x1070x500 mm; Weight 38 kg. Additional equipment: mechanical or electronic volume sensor, pump, electronic input valve, foam reduction valve (e.g. when bottling beer), bottling nozzles 17mm..

Stainless gravity cold bottling device for 6 bottles. Made in Italy. Bottling nozzles 15mm; electronic volume sensor to control the pump, setting the amount of liquid on the bottle tips; stainless drain valve; device movable, i.e. on wheels with brakes, productivity 980l/h; Size: 860x1800x900 mm; Weight 80 kg. Additional equipment: pump, foam reduction valve (e.g. when bottling beer), bottling nozzles 17mm, filter, CO2 dosing into an empty bottle..

Stainless gravity cold bottling device for 4 bottles. Made in Italy. Bottling nozzles 15mm; adjustment of the amount of liquid on the bottle tips; stainless drain valve; device movable, i.e. on wheels with brakes, productivity 670l/h; Size: 580x1800x500 mm; Weight 45 kg. Additional equipment: pump, electronic input valve and volume sensor, foam reduction valve (e.g. when bottling beer), bottling nozzles 17mm, filter, CO2 dosing into an empty bottle..

Stainless bottling device for 4 bottles. adjustment of the amount of liquid on the bottle tips; stainless drain valve; productivity 700l/h; Size: 550x500x1000 mm; Weight 16kg, container 23l. Additional equipment: bottling nozzle for large bottles 43/53 holes.

Stainless gravity hot bottling device for 6 bottles. Technical data: Connections DN25, built-in pump controlled by level sensors in the tank, only for low-density materials (liquids), semi-automatic operation, Very easy to clean, Requires minimal maintenance, productivity up to 600l/h, electrical power 0.2kw/230V, dimensions 1250x700x1650mm , weight 75 kg.

Volumetric cylinder dispenser. Doses 250-5000ml..

Ideal for bottling wine, juice (up to +80C), beer, milk, syrup (+80C) or cooking oil. Device max. bottling capacity/viscosity is the viscosity of cooking oil. Suitable bottles opening 16-28mm and height 250-330mm. Productivity: wines - up to 250 bottles/hour; gaseous liquids - up to 200 bottles/hour; edible oil - 150 bottles/hour. The set includes additional equipment for bottling wine and juice, which can withstand heat up to +85 C. Additional equipment at an additional cost: bottling of milk and gaseous liquids, filling of large bottles, etc. ACCESSORIES (at extra cost): stainless durable bottle filling nozzle / filtering unit / Kit Kristal kit - for bottling small bottles (bottle mouth min. 12mm) / Kit JAR kit - for bottling jars (jars with a mouth of 33-120mm) / Kit Mignon kit - for bottling small bottles (bottle mouth . 7.5mm) / Set milk kit - for bottling bottles with a large neck like a.la milk bottles (bottle mouth 45-65mm) / Set oil kit - set for bottling oil / Set tomatoe kit - an attachment for bottling tomato juice with a seed filter. In the set "Frutta kit" - standard e.g. for bottling wine or juice (withstands +80C heat)..

Stainless bottling device for 4 bottles. adjustment of the amount of liquid on the bottle tips; stainless drain valve; productivity 700l/h; Size: 550x500x1000 mm; Weight 16kg, container 23l. Additional equipment: bottling nozzle for large bottles 43/53 holes.

Sterile bottler for wines, juices and other liquids. Professional and adjustable bottling valves, the bottle filling process starts automatically when the bottle is pushed under the valve, the filling stops automatically when the desired filling height is reached, the bottle height, bottle diameter and filling height can be easily adjusted, with a stainless steel container. The device can be adjusted according to the height and diameter of the bottle. The filling system can also be used to fill special bottles by changing bottle centering plates, which can be ordered separately. The upper part of the TA8VA models (juice tank with valves) rotates with an electric motor at an adjustable speed. The flow of juice to the intermediate storage tank is controlled by the piping inside the central stem, the connecting valve is located in the lower part of the unit. Technical data: power consumption 60W/230V, dimensions 500x500x1800mm, weight 50kg, bottling nozzles 8pcs, productivity/throughput 1000l/h, tank size 50l, bottle diameter 76-90mm, max. bottle height 500mm. Additional equipment: automatic filling of the container (26l) with a pump, diameter of bottles 40-120mm.

The device has been used once for testing! The bottling device with self-priming pump, timer, foot switch and bottling nozzle is convenient and efficient. Can be used to fill a variety of liquid liquids, including water, shampoo, liquid cream, etc. Silicone hoses. Stainless steel housing, pump and motor made of anti-corrosion materials are separated from each other. The stainless steel body is rust and shatter resistant. The waiting time between the bottling time and the automatic bottling cycle can be adjusted on the screen display of the bottle filling machine. With automatic counting function. You can choose between manual and automatic mode. The two bottling heads work independently and the height is adjustable. The bottling nozzles are drip free. Intake filter mesh (for filtering) included. bottling nozzle with switch - with filling speed adjustment. It is convenient to use the device with a self-priming function and a foot switch. Technical information: Voltage: 220V, Filling volume range: 5ml-3500ml, bottling accuracy <0.5-2% depending on the viscosity of the drink, Maximum flow rate: 3.2L/min (depends on the product and the employee), Maximum suction distance: 2 m. Country of manufacture: China..
