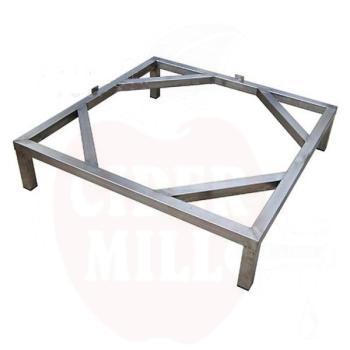

stand for 200l

The essential oil extractor consists of a 120 liter heating tank, equipped with a removable internal filter; a lid with clamp closure, and a cooling tank with a capacity of 25 litres, equipped with tube and coil; the equipment also includes an analogue thermometer and an integrated safety valve. The operation of the essential oil extractor is simple: fill the tank with water up to the edge of the filter and insert the plants, compacting them to avoid spaces for steam outlet. Fill the cooling tank with cold water. Close the clamp cover and insert the pipe for the cooling circuit. Heat the water in the plant collection tank. Once reached the temperature of 100° C, the steam begins to capture the essence contained in the plant; crossing the serpentine circuit it cools and physically separates from the essential oil. In the last phase the essential oil extractor releases the finished product directly from the cooling tank pipette. After about an hour from the start of the extraction, check the quantity of essential oil coming out and, in case of absence, stop water heating. Heating tank features: Material: 18/10 AISI 304 stainless steel. Capacity: 120 L. Internal diameter: 500 mm. Height: 750 mm. Conical clamp closed lid. Analog thermometer. Safety valve. Bottom: flat, rounded and welded. Wall and bottom thickness: 1.2 mm. External tank finish: flower-patterned. Internal tank finish: Mirror polished. External tank welding finish: Satin. Cooling tank features: Material: 18/10 AISI 304 stainless steel. Capacity: 25 L. Internal diameter: 302 mm. Height: 365 mm. Wall thickness: 1 mm. Bottom thickness: 1.5 mm. Cooling coil. Handles. Water overflow pipette. Mirror polished internal finishes. Flower-patterned external finish. Dimensions: mm 1200x540x870h

Stainless open cone bottom (10 degree) container with mixer. The size of the tank is 700L; Diameter: 955mm; Height: 1020mm, total height 1700mm; valve DN50; Stainless steel Aisi 304 - 18/10; Stainless legs with a height of 320 mm; Mixer 0.37kw/380V, Extras: cooling/heating jacket, insulation, adjustable mixer rotations, control center, which includes lid-mounted sensors, closing when opening the mixer lid. Larger mixing tanks 700l, 1000l, 1500l and mixing motors of different capacities are available..The size of the tank can vary up to max. +/-10%

Boiler / mixing tank stainless base with dimensions 720 x 720 x 260 h.

Mixer tank cover with fixing screws and without mixer connection..

Mixing tanks on wheels with fitting for agitator. Mixing tanks are used for wine making processes and other applications. They can be equipped with a mixer that allows slow mixing, blending or stirring of the contents. Stainless Steel AISI304 (1.4301), mirror polished inside (BA/IIId), circle polished outside.Advantages: Multipurpose use, Detachable mixer, Ergonomic height, Easy maneuvering in place. Standard equipment: four wheels, bottom outlet with ball valve DN50, fitting DN40 for agitator with reinforced plate, handle, dust cover.Options: • sack support • cooling jacket • level gauge DN15 - Ø16mm • sample tap DN15 • lower tap ¾’’ • ball or butterfly valves – DN, WG,garolla, TC, macon • blind nut with chain • fitting for agitator Gr. 37 • agitator. Dimensions: diameter 1113mm, high 1300mm

Electric motor three-phase, 1,1 Kw/0,8 Kw. Panel control with emergency stop 24V circuit and transformer (except MIX 90). Mechanical seal Grafite/NBR max 12 BAR. Removable stainless steel shaft lenght 48 cm. Folding helix, automatic opening width 15 cm. Inox valve for dosing. Connection fitting to be indicate at the minimum way 36mm diameter. Engine HP (Kw): 1,5 (1,1). Speed: 1400 RPM. Tank max. capacity: 300hl.
