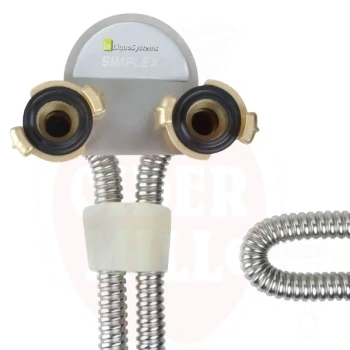

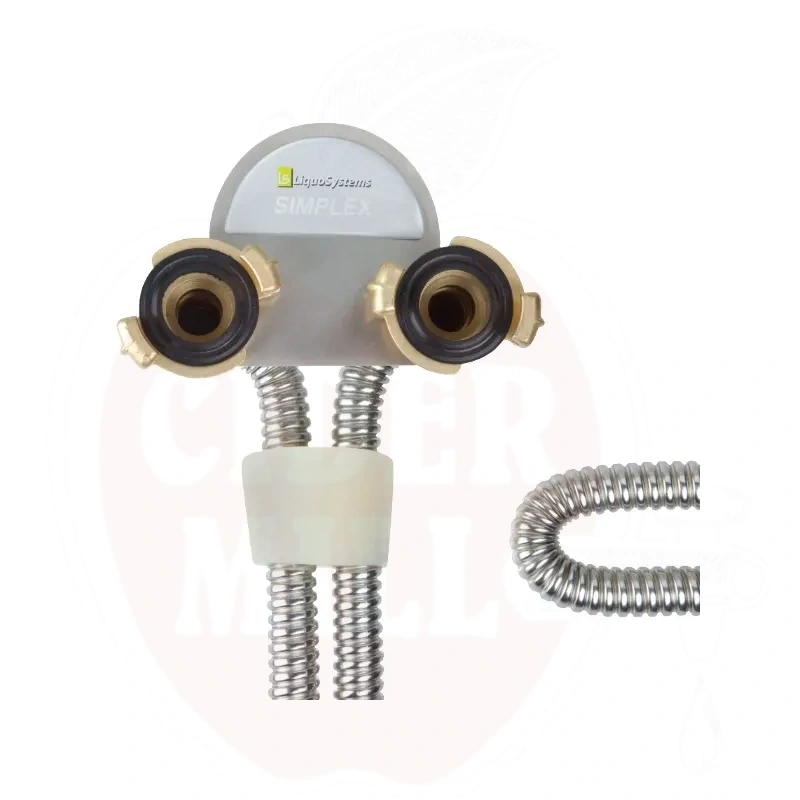

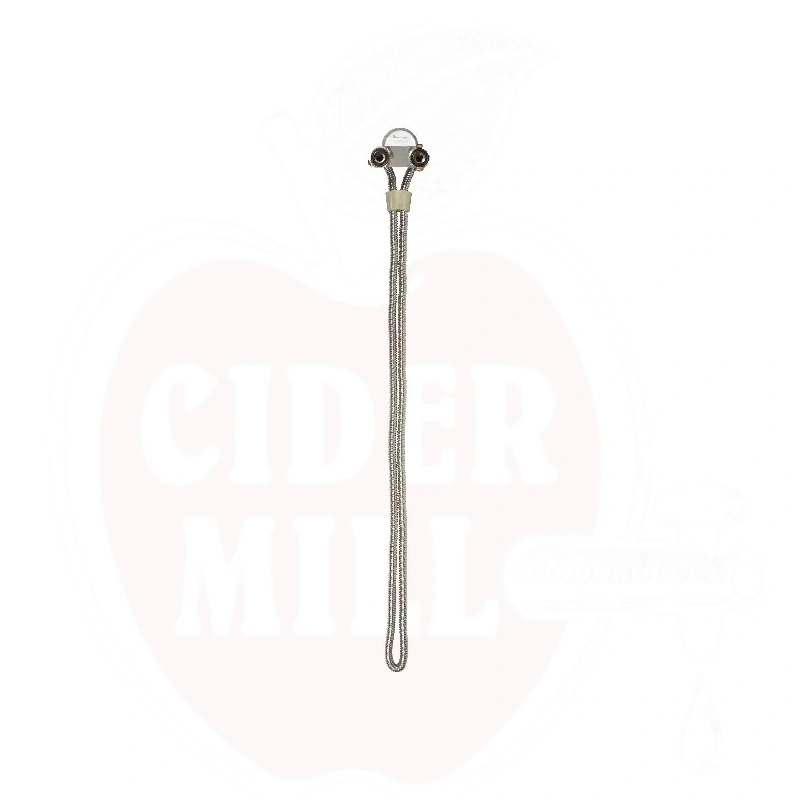

Stainless heat exchanger-tube simplex 2500mm

IFerm Nano Solo - Fully Automatic Temperature Controller IFerm Nano Solo is a modern fully automatic temperature controller that ensures precise temperature regulation in the fermentation process. The device is equipped with a quality temperature sensor and reliable solenoid valve along with practical GEKA-Plus connectors. Key features and benefits: Clearly visible LED display with large temperature readings Durable stainless steel base plate for secure mounting Easy connection to power supply and cooling or heating system Automatic magnetic valve control based on temperature sensor readings The device is easy to use - connect IFerm Nano Solo to power supply and connect it to cooling or heating water supply. Thanks to the smart control system, the device automatically maintains the temperature at the desired level by opening and closing the magnetic valve as needed.

Professional Wine Cooling System with Glycol - Made in Italy The glycol cooling system designed for perfect wine making offers precise temperature control during the fermentation process. This Italian-made equipment is an essential tool for quality wine production. Technical Specifications: Cooling capacity during fermentation: 3.2 kW (2,750 Kcal/h), with glycol solution +5°C (15% propylene glycol) Tartaric acid stabilization capacity: 1.73 kW (1,500 Kcal/h), with glycol solution (40% propylene glycol) Maximum cooling capacity: 13,000 liters Stainless steel tank: 50 liters Equipped with circulation pump Refrigerant: R507 Physical Dimensions: Length: 1050 mm Width: 600 mm Height: 770 mm Weight: 100 kg This compact and powerful cooling system is equipped with everything necessary for professional wine production, ensuring optimal temperature during both fermentation process and tartaric acid stabilization.

Energy-Efficient Stainless Steel Heat Exchanger for Food Industry Food industry certified stainless steel heat exchanger with surfaces smoothened using laser technology. The self-cleaning design and complete disassembly capability ensure easy maintenance. Technical Specifications: Cooling/heating water flow: 2750 l/h Cooled/heated liquid flow: 900 l/h Temperature difference: 3 degrees Energy savings: up to 50% Features: Self-cleaning technology Fully dismantlable Food-grade material Laser-processed surfaces Different models available with flow rates up to 21,000 l/h. For optimal results, the inlet flow should be three times greater than the raw material flow.

Industrial 36-Plate Stainless Steel Heat Exchanger. Powerful stainless steel heat exchanger certified for food industry, ideal for rapid cooling or heating of juice, beer and other beverages. The device consists of 36 separate plates that ensure maximum heat exchange efficiency. Technical Specifications: Material: food-safe stainless steel, Number of plates: 36, Connections: 3/4" external thread nuts, Hose connections: for 12mm hose. Performance and Usage: The heat exchanger can cool 60 liters of high-temperature (+95°C) liquid to 20°C in just 10 minutes using 10°C coolant. The device is versatile, functioning as both cooling and heating system. Applications: Juice production, Beer brewing, Dairy industry, Food processing. The stainless steel heat exchanger is durable, maintenance-free and ensures quick and uniform temperature regulation. Compact design allows for easy installation and use.

Professional Maxi 80 Stainless Steel Heat Exchanger The Maxi 80 heat exchanger is made of high-quality Aisi 304 stainless steel (18/10), ensuring long-term durability and reliability. Technical Data: Connections: 1"1/4 Maximum working pressure: 10 bar Plate surface: 0.08 m² Plate liquid volume: 0.25L Single plate weight: 0.5 kg Total weight: 50 kg Number of plates: 22 Kit Includes: Stainless steel adapter F 1"¼ and 3/4" M 4 stainless steel hose connections 20 mm with 3/4"F nut Main Advantages: High heat exchange coefficient Liquids do not mix with each other Flexible system with possibility to add plates Long service life due to plate regeneration and component replacement options Complies with European Directive 97/23/EC (PED) Maintenance and Cleaning: Device cleaning is recommended immediately after use: Rinse with hot water Clean with OXI or other alkaline cleaner Rinse thoroughly with water Store in a clean and dry place Disinfection: Before next use, circulate water and acidic cleaner or OXI solution in the device. Always use protective equipment: gloves, goggles, and mask.

Maxi 80 series press plate seal - quality spare part for juice press. Durable seal for Maxi 80 series juice press replacement plate ensures efficient operation and maximum juice extraction. The original spare part fits perfectly with press plate dimensions, allowing quick and easy installation. Seal features: Specially designed for Maxi 80 series juice presses, made from food industry compliant material, ensures hermetic connection with press plate, easy to install and maintain. Regular seal inspection and timely replacement extends juice press lifespan and ensures quality juice production. Package includes one seal with installation instructions.

Openable Plate Heat Exchanger - Expandable and Easy-to-Maintain Solution High-quality stainless steel plate heat exchanger ensures efficient heat transfer when cooling the wort. The special design of the device allows for convenient cleaning of cooling plates and adding additional plates when needed. Main advantages: Easy maintenance thanks to openable design Possibility to increase system capacity with additional plates Made of durable stainless steel Includes quality gaskets By adding plates, you can increase the heat exchanger's performance according to your production needs. The device is delivered ready for immediate use with stainless steel plate and gasket. Technical info: Material: stainless steel Expandable system Ready-to-use kit

Ground-mounted heat exchanger clamp - efficient cooling system The durable heat exchanger clamp is specially designed for ground mounting and fixation. This strong mounting system ensures stable positioning and secure installation of the heat exchanger. Benefits of the heat exchanger clamp: Simple and quick ground installation. Strong fixation during cooling process. Durable construction for long-term use. Optimal cooling system performance. The ground-mounted heat exchanger clamp is an essential component for ensuring an efficient cooling process. It increases the reliability of the cooling device and ensures consistent cooling efficiency.

Energy-Efficient Food Industry Heat Exchanger - Self-Cleaning and Efficient Stainless steel heat exchanger specially designed for the food industry ensures maximum efficiency and hygiene. Laser-processed smooth surfaces make the device self-cleaning and allow for complete disassembly. Technical Specifications: Cooling/heating water flow: 15,840 l/h Cooled/heated liquid flow: 5,440 l/h Temperature difference: 4 degrees Energy savings: up to 50% To achieve optimal temperature, the inlet flow must be three times greater than the raw material flow. We offer different models with capacity up to 21,000 l/h. Main Advantages: Food industry certified materials Easy maintenance thanks to self-cleaning technology Complete disassembly capability Significant energy savings

Professional Maxi 80 Plate Heat Exchanger for Food Industry High-quality Maxi 80 plate heat exchanger is manufactured from Aisi 304 stainless steel (18/10) meeting food industry standards. The device enables efficient heat transfer between two liquids while ensuring their complete separation. Standard Equipment: Stainless steel interface F 1"¼ and 3/4" M, 4 stainless steel hose connections (20 mm, with 3/4" F nut), 60 heat exchange plates. Technical Specifications: Maximum power: 80 kW, Maximum working pressure: 10 bar, Single plate area: 0.08 m², Plate liquid volume: 0.25 L, Plate weight: 0.5 kg, Total weight: 50 kg. Advantages and Features: High heat exchange efficiency, Complete liquid separation, Expandable number of plates, Easy maintenance and part replacement, Compliant with EU directive 97/23/EC (PED). Maintenance and Cleaning: The heat exchanger requires immediate cleaning after use: Rinse with hot water, Clean with OXI or other alkaline cleaner, Finally rinse with clean water. Disinfect the device before next use with acidic cleaner or OXI solution. Use protective equipment during cleaning: gloves, goggles, and mask. Store the device in a clean and dry place.

Spiral Cooler for Juice Press Equipment - Efficient Cooling System High-quality stainless steel spiral cooler enables quick and efficient cooling of juice or other hot liquids. This compact cooling device is equipped with a durable 9.5mm cooling tube. Technical Specifications: Sphere diameter: 20 cm Total height: 50 cm Spiral height: 12 cm Cooling tube material: stainless steel Cooling tube diameter: 9.5 mm Cooling Capacity: The device can cool 20 liters of +100°C liquid to +20°C in just 20 minutes when the coolant temperature is +13°C. Additional Features and Warranty: Equipped with Gardena irrigation hose connectors Easy to connect and use Manufacturer warranty: 3 years The spiral cooler is ideal for juice presses, beer brewers, and other food processors who need efficient liquid cooling.

Stainless Steel Spiral Chiller for Home Brewing - Quality Cooling System Discover a professional spiral chiller specifically designed for home beer brewing. Made from AISI 304 stainless steel, this cooling device is the perfect solution for controlling mash temperature during the brewing process. Spiral Chiller Technical Specifications: Material: AISI 304 stainless steel, Number of spirals: 10, Spiral height: 100 mm, Total height: 360 mm, External diameter: 255 mm, Total tube length: 8.8 meters, Tube diameter: 9.5 mm, Weight: 1.25 kg. This durable cooling system integrates perfectly with the mash tank and ensures an efficient cooling process. Easy to use and clean, it's ideal for both beginners and experienced home brewers. The complete solution includes all necessary components for immediate use, allowing you to focus on producing quality home-brewed beer.

Coolossus Gen2 Professional Counterflow Chiller Coolossus Gen2 is an industrial-grade 9.5-meter passivated stainless steel counterflow chiller equipped with 1.5" Tri Clover wort connections and 1/2" water connections. This powerful cooling tube is specifically designed for professional beer brewing, offering maximum performance and reliability. Thanks to its 304 stainless steel construction, the device is perfectly suited for making hop-enriched beers. Key Features: Fully passivated 304 stainless steel construction, Professional 1.5" Tri Clover connections, Clog-resistant design, Compatible with StellarSoda products. Technical Specifications: Cooling tube dimensions: 21 mm (inner diameter) × 22 mm (outer diameter) × 9 m, Wort tube dimensions: 11.9 mm (inner diameter) × 12.7 mm (outer diameter) × 9.5 m, Device height: 280 mm, Device diameter: 180 mm, Connections: 1/2" BSPT water connections, 1.5" Tri Clover wort connections, Transfer capacity 300w per ΔT_lC when cooling/heating water speed is 3x faster 394W/ΔT_1. Operating Principle: The chiller uses counterflow technology, where hot wort and cooling water flow in opposite directions through separate channels. This technology ensures maximum heat transfer and efficient cooling process while maintaining beer quality. Updates: Gen 2.1 version includes reinforced 3 mm steel plate with three 4 mm mounting holes, ensuring even better durability and ease of use. Coolossus Gen2 is the ideal choice for both professional brewers and demanding home brewers who want to achieve the best possible cooling results.

Cooling Coil Heat Exchanger 35L BrewZilla Gen 4 + 3.1.1 - Stainless Steel Immersion Chiller. Sold with the BrewZilla series, these compact immersion chillers are excellent for cooling up to 35L of wort to fermentation temperature. An ideal solution for those using smaller pots. Usage Method 1: This chiller can be used by simply connecting a garden hose to both ends of the chiller. You can slide the garden hose directly onto the chiller ends and secure with stepless hose clamps. Alternatively, use pressure fittings for better connection. Then lower the chiller into hot wort and let water flow through the chiller until desired temperature is reached. When water flows through the chiller, stirring the hot wort significantly helps with heat transfer from the wort to the cooling coil and reduces cooling time by more than half. Usage Method 2: The second method involves pumping hot wort through the center of the chiller. Use silicone tubing to connect the kettle to the pump and then through this coil chiller and back to the kettle. Turn on the pump and ensure the chiller reaches wort boiling temperature to sterilize the coil with heat. Then place the coil in a bucket with ice and water mixture. Run the pump continuously until the wort cools to desired temperature. Dimensions: Chiller coiled section: 24 cm high x 19 cm diameter, Total chiller height: 41 cm, Tubing: 12.7 mm, 304 stainless steel. The cooling coil heat exchanger is an essential component in home beer brewing that allows quick cooling of hot wort to fermentation temperature. Rapid cooling helps maintain beer quality and prevent unwanted flavor development.

Cooling coil heat exchanger Temp Twister 9.5mm (3/8"), stainless steel Specification: Dimensions: 9.5cm x 68cm (diameter x height) Material: 304 stainless steel Tube thickness: 9.5mm outer diameter Tube length: 6 meters Heat transfer: When submerged in liquid, this heat exchanger can absorb more than 250 watts. Includes 2 x 9.5mm Duotight quick connectors x 1/2" male thread pass-through tube with nuts. Would you like to use a glycol chiller to heat and cool your FermZilla, Kegmenter, or other fermentation vessel or bright tank? This heat exchanger is adaptable to any fermentation vessel or bright tank with at least a 110mm diameter opening. These thermal jackets are suitable for use in both the FermZilla series and KegLand Kegmenter vessels. For installation, drill two 22mm holes in the fermentation vessel lid and use the included Duotight pass-through fittings to attach the heat exchanger to the fermentation vessel lid. Heat exchanger operating principle: The Temp Twister heat exchanger enables precise temperature control during fermentation. The system works with circulating glycol fluid that moves through a spiral stainless steel tube, ensuring uniform and efficient heat transfer. This helps maintain stable temperature of the fermenting liquid, which is crucial for achieving quality end results.
