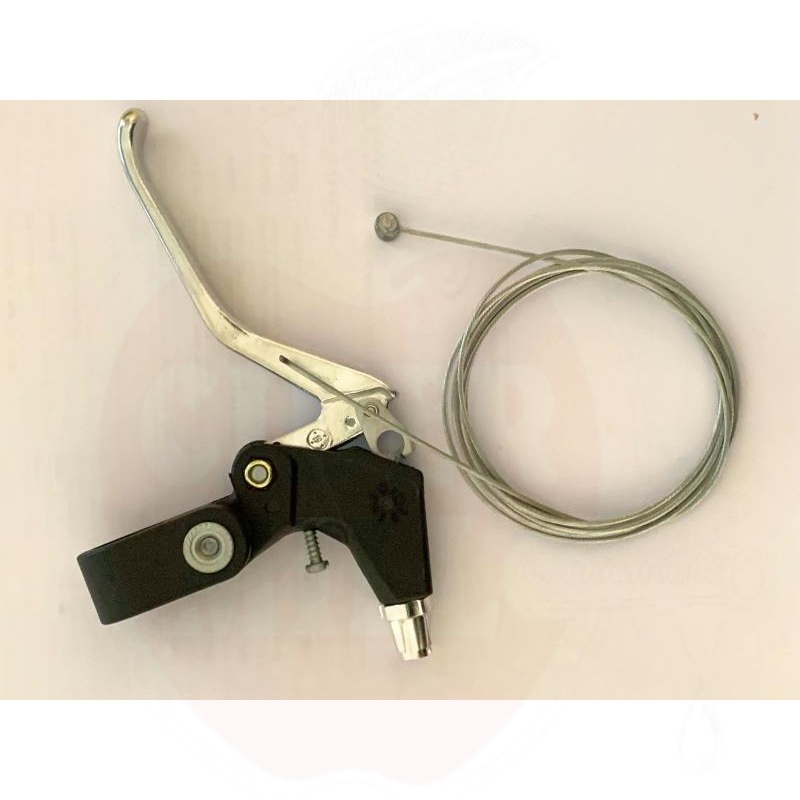

Spare Part for BB12 - wire rope with hand support

Automatic bag in box bottling device, which allows bottling up to 7000l/h. The device is suitable for small entrepreneurs who bottle approx. 5000 bags per year. Pre-settable dispenser automation (electromagnetic pre-set meter). The possibility of adjusting the bottling height makes the work easier. Bottling takes place under pressure. Work process: the operator removes the cap -> autofill -> the operator closes the cap. additional information: minimum dosage for 1L calibration. Accuracy +/- 5...10cl; also suitable for bottling canisters (max. D85mm); max. working temperature +80C; The use of different sensors ensures the possibility of bottling different liquids such as juice, wine, oil, etc. Please let me know when ordering! ; Easy to clean and maintain, as the piping simply opens... also possible to sterilize with steam +110C (accessory). Extras: pump, sterilization with steam +110C.

Semi-automatic bag in box bottling device, which allows bottling up to 7000l/h. The device is suitable for small entrepreneurs who bottle approx. 5000 bags per year. Pre-settable dispenser automation (electromagnetic pre-set meter). The possibility of adjusting the bottling height makes the work easier. Bottling takes place under pressure. Work process: the operator removes the cap -> autofill -> the operator closes the cap. additional information: minimum dosage for 1L calibration. Accuracy +/- 5...10cl; also suitable for bottling canisters (max. D85mm); max. working temperature +80C; The use of different sensors ensures the possibility of bottling different liquids such as juice, wine, oil, etc. Please let me know when ordering! ; Easy to clean and maintain, as the piping simply opens... also possible to sterilize with steam +110C (accessory). Extras: pump, sterilization with steam +110C. Manufacturer: Enoitalia (Italy)..

Semi-automatic bag in box bottling device, which allows bottling up to 7000l/h. The device is suitable for small entrepreneurs who bottle approx. 5000 bags per year. Pre-settable dispenser automation (electromagnetic pre-set meter). The possibility of adjusting the bottling height makes the work easier. Bottling takes place under pressure. Work process: the operator removes the cap -> autofill -> the operator closes the cap. additional information: minimum dosage for 1L calibration. Accuracy +/- 5...10cl; also suitable for bottling canisters (max. D85mm); max. working temperature +80C; The use of different sensors ensures the possibility of bottling different liquids such as juice, wine, oil, etc. Please let me know when ordering! ; Easy to clean and maintain, as the piping simply opens... also possible to sterilize with steam +110C (accessory). Extras: pump, sterilization with steam +110C. Bottler and buffer container with work surface included. Manufacturer: Enoitalia (Italy)..

A simple and manual bottling device that can bottle up to 1600l/h. Made in Italy. In the set: digital gauge, stainless frame, pump 330W, strong PVC bottling gun, PVC tube. Dimensions: 220x300x600mm; Weight: 15kg. ACCESSORIES: Juice storage bag closing aid (pictured - on the back of the frame) / Stainless bottling gun / Oil bottling accessories.

Manual bottler in stainless steel storage bags. A simple device with a gauge and a bottling gun that can also be used for gravity bottling of liquids..

Automatic valve removal, bottling and valve installation. Possibility of vertical bags (pouch-up) min. 1 l. Productivity 3l 380pcs, 5l 240pcs/h, 10l 210pcs and 20l 140pcs. Dimensions 800x1000x1500mm, weight 110kg. Control with touch screen PLC SIEMENS, multi-language and multi-program, Induction flow meter, Vacuum system and nitrogen injection, Automatic opening / closing of bags in Vitop standard set, Volumetric pump with self-cleaning rubber wheel impeller 900 rpm with bypass and total drain valve, Vacuum-proof filling system, Possibility to fill flexible bags or bag ( higher type) since then, min. bottling with 1L capacity, 4-wheel stainless steel frame, Inox fitting for CIP cleaning, automatic cleaning program, Safety guard, Adjustable stainless support when filling boxes. Max. bottling temperature +90C. Bottling capacity up to 4500l/h. Induction meter accuracy class 0.2% and disinfection up to +120C. It is possible to save 10 different programs when bottling pre-calibrated liquids, which means that once a liquid/program has already been calibrated and saved, it is not necessary to perform a new calibration, but to retrieve the corresponding program from the memory Extras: electronic bottling speed control, intermediate tank with automation, compressed air compressor, automatic additional tool for special bag for caps, oil bottling accessories, filter 10" or 30", air filter..

Volumetric pump with frequency inverter. PLC for manual or automatic working. Inducion flowmeter Endress. Dosing program. Counter program. Timer program. Radiocontrol. Touchscreen da 7”. Stainless steel panel control. Inox trolley. Engine kw: 4. Power: MF/TF. Fitting: Triclover 1,5". Capacity LT/H: 0-24000.

Automatic dispenser with pump, pressure switch, inox storage unit and support frame and Digital flow meter ENO 24 for wine, juice.• Volumetric pump EURO 20 with rubber impeller , • Fitting DIN 20/25, • Cable for electricity 220V 50hz singlephase, • Stainless steel support without wheels, • Stainless steel pressure tank, with no-foam valve, • Automatic pressure switch, • One way inox valve, • Rubber pipe. Power 0,37kw 220V, max. filling rate 1000l/h,  dimensions 240x300x430mm, weight 20kg.Optional: Digital flow meter ENO 400 for oil and viscous juice, Inox trolley (not compatible with cod.9024), KIT for filling bag in box, with manual closing system.
