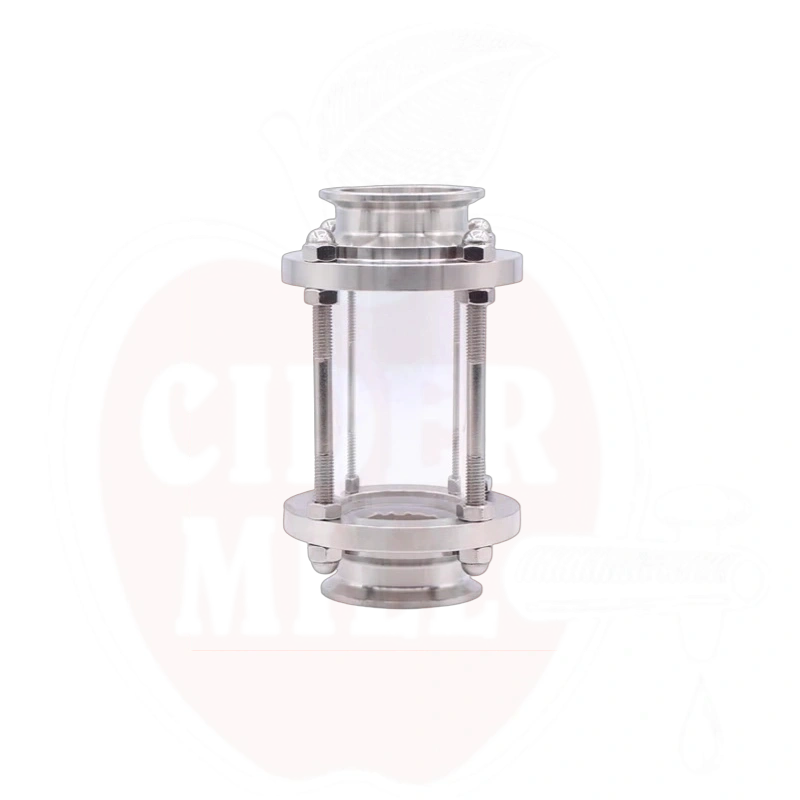

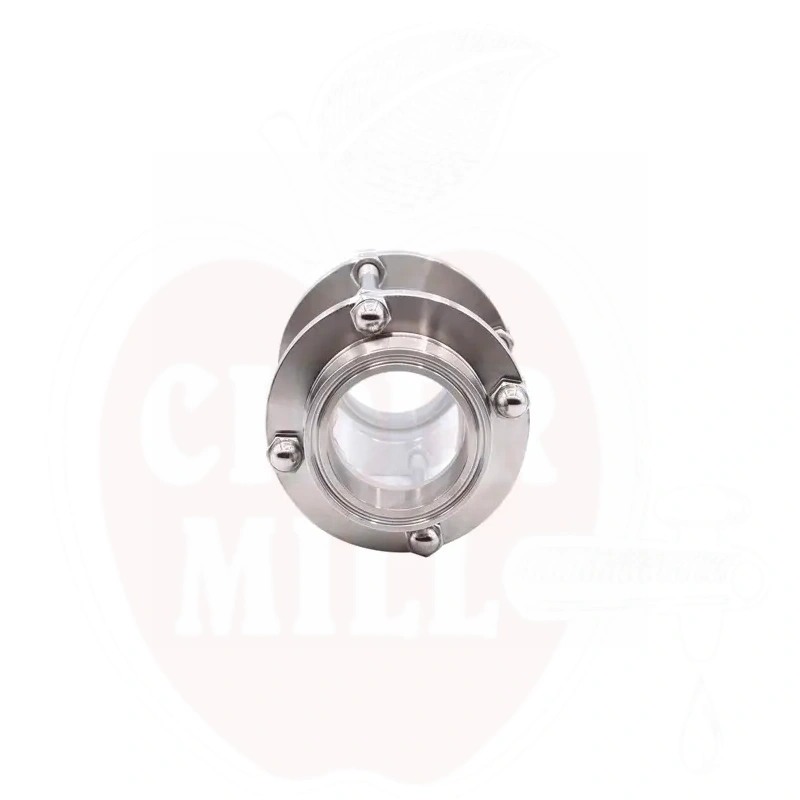

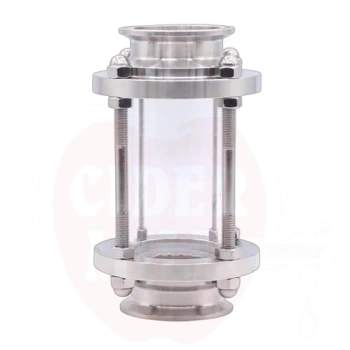

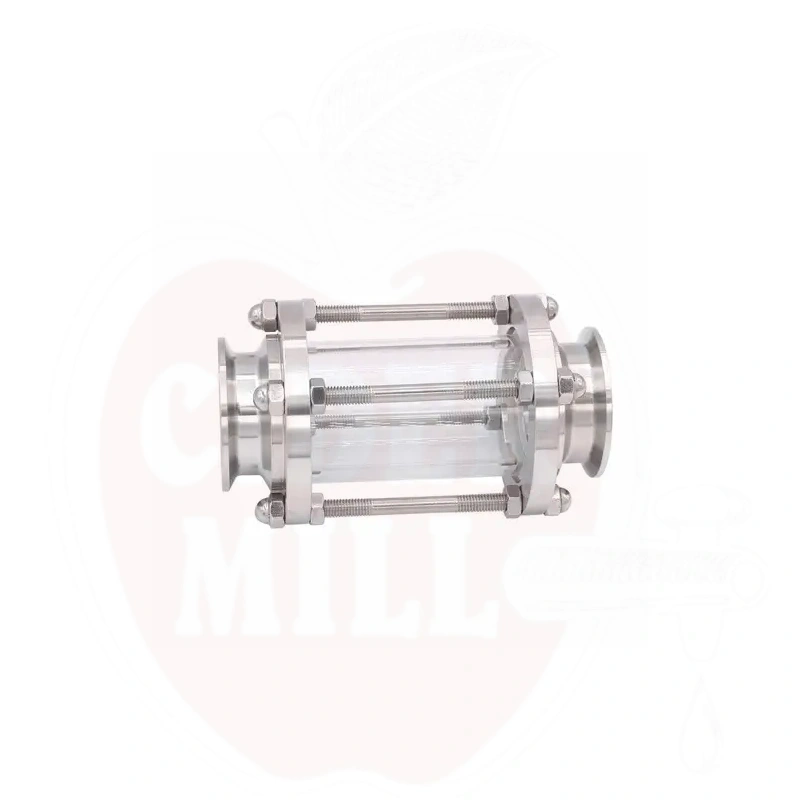

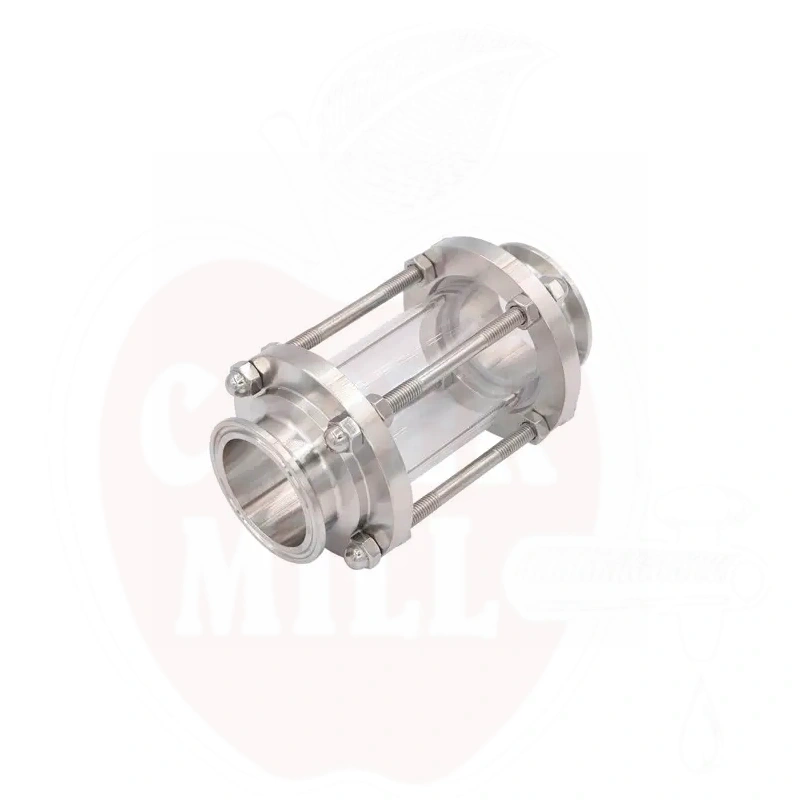

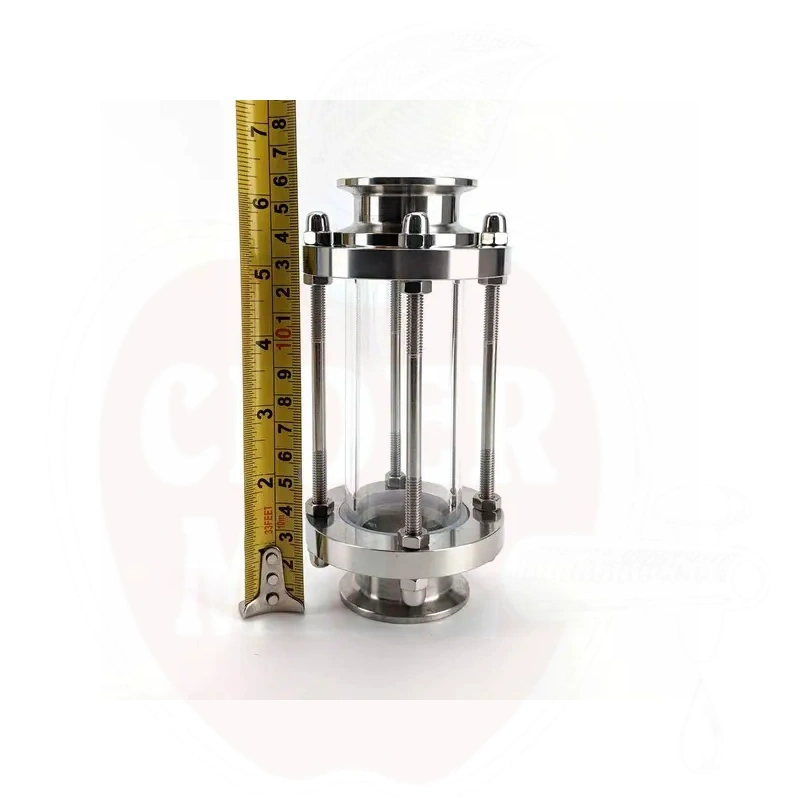

Sight Glass 1.5" Triclover, Stainless Steel
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 9388866601816
Brand:
Unit: tk
Stock qty: 1
Leveranstid inom Estland för lagervaror ca 3-5 arbetsdagar. OBS! På grund av den snabba prisökningen kan priser för icke-lagervaror ändras utan föregående meddelande! Standardpriser med 22% moms.
Price:
54,90 €
Sight Glass 1.5" Triclover, Stainless Steel
The sanitary sight glass is ideally suited for use in the food, dairy, and pharmaceutical industries for sanitary applications.
The full-diameter design provides a 360-degree view of fluid flow in any direction and can be used both horizontally and vertically.
Features:
- Flow tube outer diameter: 38mm
- Ferrule outer diameter: 50.5mm
- Maximum pressure: 120 PSI (8.3 bar)
- Maximum temperature: 150°C
- Triclamp connection size: 1.5 inches (38.1mm)
- Glass: Tempered glass
- Material: SUS316 stainless steel
General principle of using a sight glass: The sight glass is installed in the piping system, allowing the operator to monitor the flow, composition, and quality of the fluid without opening the system. This is particularly useful in manufacturing processes where it is important to monitor fluid flow properties, ensure proper processing, and quality control.
Keywords: sight glass, triclover, sanitary sight glass, stainless steel sight glass, food industry equipment, fluid monitoring, process monitoring device, tempered glass, triclamp connection, 1.5 inch sight glass, 38mm sight glass, fluid visualization, sanitary production equipment, pharmaceutical equipment
| Weight (kg) | 0.000000 |
| High (m) | 0 |
| Width (m) | 0 |
| Length (m) | 0 |
