sieve 8mm

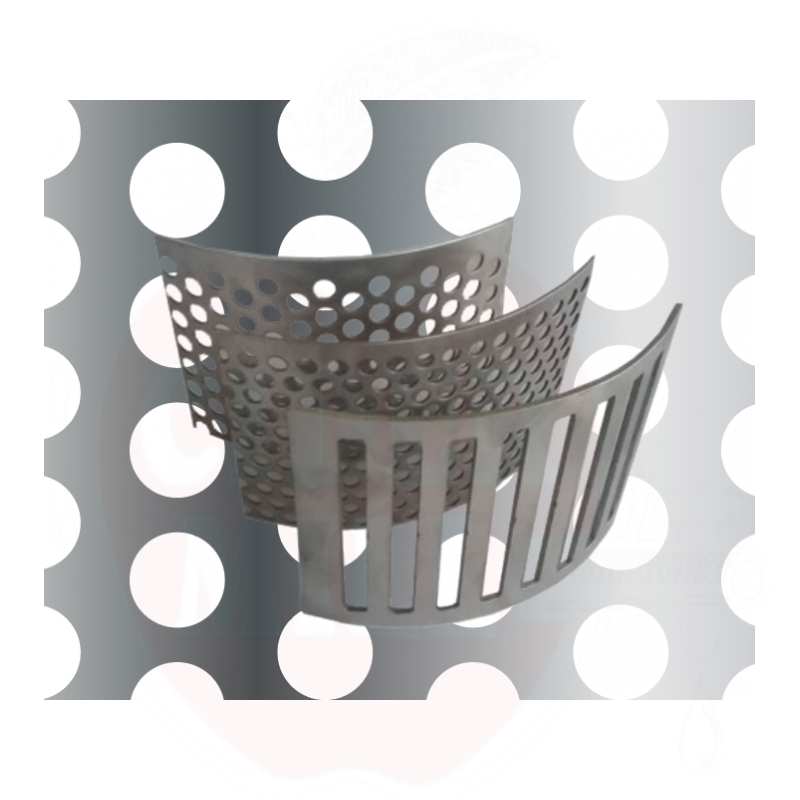

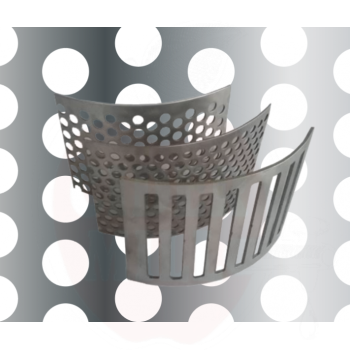

Crusher sieve with 5mm holes.

Crusher sieve with 3mm holes.

Additional equipment of the crusher M100 - a stainless screen with round holes..

After rinsing the fruits in the container, the raw materials are washed with clean water using sprayers and forwarded to the crusher. The device enables raw material rinsing/hand washing, lifting transport and crushing. Features: device moving on wheels, easy to clean, massive food-grade plastic modular dingha, adjustable speed stepwise in both directions, 2 pcs rotating, 2 pcs fixed wheels. Additional equipment: Sieves with removable diameter; dosing module: sliding gate with buffer hopper and limit switch, which enables safe grinding of the baler. Specifications: Performance up to: 1500 kg / h, power consumption: 3 kW, 400 V, 16 A, three-phase; Material: WNr. 1.4301, AISI 304 stainless steel; Dimensions: 710x3200x2120 mm; Output height: 1280mm; Weight: 200 kg; Bath water volume: 120 L / change; Washing water supply: (depending on the setting 20-100L / h); Water connection: 3/4 "quick connection; IP65 certified electronics; crusher with massive hammer crusher (available for beet and quince). Noise emission 60-70 dB.

The fruits get via the input hopper through the brushes to the soaking stage. From there the elevator towards the fruit under the secondary clearwater sprays. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both directions. Mounted on 2ea. swivel, 2ea. lockable wheels or on adjustable Anti-vibration feet. Requires minimal maintenance.Specifications:• Performance: 3000 kg/h• Electric demands: 5 kW, 400 V, 16 A, triphase• Material: WNr. 1.4301, AISI 304 stainless steel• Dimensions: 950x3660x2120mm• Output height: 1270 mm• Weight: 360 kg• Tub water capacity: 440 L/shift• Washing water supply: (100-200L/h depending on the setting)• Water connection: 3/4“ quick connector• IP65 certified electronics• Grinder with a massive crushing hammer (available for beetroot and quince)• The grinder can be bypassed by swinging to the side so in this case the machine is used to process stone fruits.• Noise emission: 60-70 dB• 4 pcs of strong, counter-rotating brushes for the intense cleaning• Rotating paddle, that pushes the fruits towards the elevatorAvailable options:– Changeable diameter sieve: for changing the texture of the mash– Stop ‘n’ Go system: membrane sensor, which synchronizes the fruit washer/grinder and the belt press to work together– Adaptive freshwater spray – fresh water spray nozzles are active only when the elevator is going– Air-blow module – built-in air nozzles in the tub area powered by a turbo-fan for the intense washing or sinking fruits – Air-knife module – the air-knife removes the water droplets on the surface of the fruits, thus reducing the amount of water reaching the end product.– Circulating water pump with raw filter
