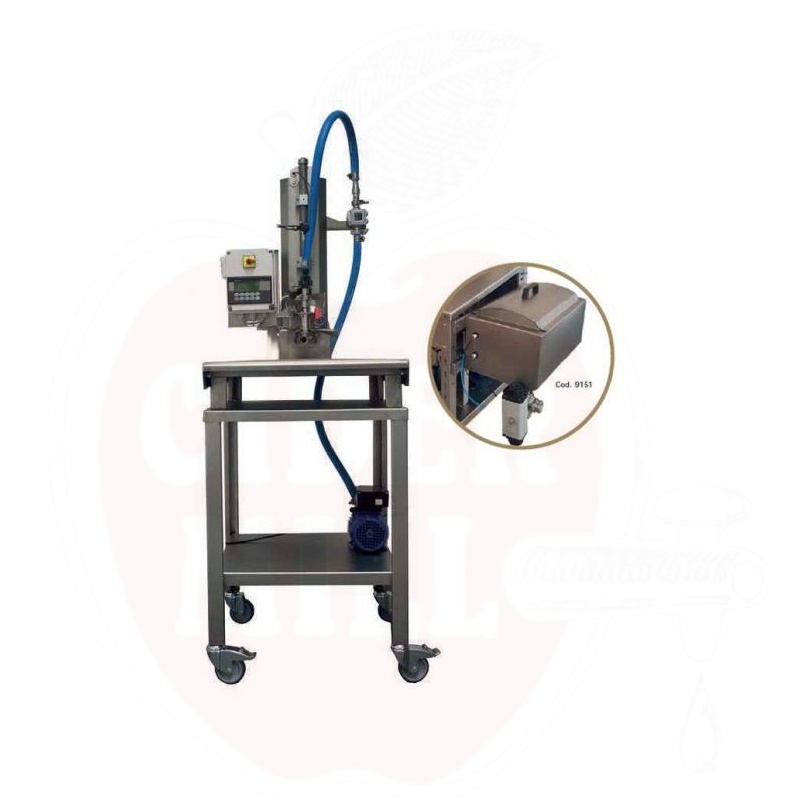

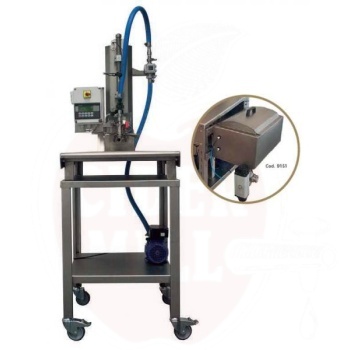

Semi-manual filling BB12 with 45l tank

.

A simple and manual bottling device that can bottle up to 1600l/h. Made in Italy. In the set: digital gauge, stainless frame, pump 330W, strong PVC bottling gun, PVC tube. Dimensions: 220x300x600mm; Weight: 15kg. ACCESSORIES: Juice storage bag closing aid (pictured - on the back of the frame) / Stainless bottling gun / Oil bottling accessories.

Manual bottler in stainless steel storage bags. A simple device with a gauge and a bottling gun that can also be used for gravity bottling of liquids..

Automatic bag in box bottling device, which allows bottling up to 7000l/h. The device is suitable for small entrepreneurs who bottle approx. 5000 bags per year. Pre-settable dispenser automation (electromagnetic pre-set meter). The possibility of adjusting the bottling height makes the work easier. Bottling takes place under pressure. Work process: the operator removes the cap -> autofill -> the operator closes the cap. additional information: minimum dosage for 1L calibration. Accuracy +/- 5...10cl; also suitable for bottling canisters (max. D85mm); max. working temperature +80C; The use of different sensors ensures the possibility of bottling different liquids such as juice, wine, oil, etc. Please let me know when ordering! ; Easy to clean and maintain, as the piping simply opens... also possible to sterilize with steam +110C (accessory). Extras: pump, sterilization with steam +110C.

Semi-automatic bag in box bottling device, which allows bottling up to 7000l/h. The device is suitable for small entrepreneurs who bottle approx. 5000 bags per year. Pre-settable dispenser automation (electromagnetic pre-set meter). The possibility of adjusting the bottling height makes the work easier. Bottling takes place under pressure. Work process: the operator removes the cap -> autofill -> the operator closes the cap. additional information: minimum dosage for 1L calibration. Accuracy +/- 5...10cl; also suitable for bottling canisters (max. D85mm); max. working temperature +80C; The use of different sensors ensures the possibility of bottling different liquids such as juice, wine, oil, etc. Please let me know when ordering! ; Easy to clean and maintain, as the piping simply opens... also possible to sterilize with steam +110C (accessory). Extras: pump, sterilization with steam +110C. Manufacturer: Enoitalia (Italy)..

High-quality and semi-automatic bottler for juice storage bags. Productivity 180l/h, dimensions 760x620x580mm, weight 30kg.

High-quality and semi-automatic bottler for juice storage bags. Productivity 420l/h, dimensions 1030 x 1650 x 800 mm, weight 140kg.

Doselite dispenser has a stainless device that allows you to bottle liquid into doy-pack bags and close the valve. Range of dispensers (specify when ordering) 5-260ml / 20-680ml (extra +550eur) / 50-1300ml (extra +750eur). Enables bottling liquid and more viscous liquids with lumps at temperatures up to +100C. Operating operations: the operator places the bag into the slot of the device, then mechanically removes the valve using the lever of the device, at the same time the bottling tip is placed into the bag. It is possible to adjust the bottling speed and quantity. After the bag is filled, it is possible to remove excess air from the bag using a vacuum and close the valve mechanically using a lever. Working pressure 2-6bar. Extras: bottling dispensers 20-680ml (extra +550eur) / 50-1300ml (extra +750eur); conical raw material containers 15l (+600eur) and 30l (+750eur)..

The bottler is intended for filling wooden barrels. A simple solution that allows/consists of: 150l intermediate tank with full discharge and pneumatic float, HP 0.5 volume pump EURO20 with flexible working element, adjustable automatic pressure relay, stainless steel support cart, stainless steel gun for filling with return flow, digital flow meter, hose 5m. Dimensions: 1500x800x1400 mm, weight 50 kg.

RENTAL DEVICE: Semi-automatic bag in box bottling device that allows bottling up to 7000l/h. The device is suitable for small entrepreneurs who bottle approx. 5000 bags per year. Pre-settable dispenser automation (electromagnetic pre-set meter). The possibility of adjusting the bottling height makes the work easier. Bottling takes place under pressure. Work process: the operator removes the cap -> autofill -> the operator closes the cap. additional information: minimum dosage for 1L calibration. Accuracy +/- 5...10cl; also suitable for bottling canisters (max. D85mm); max. working temperature +80C; The use of different sensors ensures the possibility of bottling different liquids such as juice, wine, oil, etc. Please let me know when ordering! ; Easy to clean and maintain, as the piping simply opens... also possible to sterilize with steam +110C (accessory). Extras: pump, sterilization with steam +110C. Bottler and buffer container with work surface included. Manufacturer: Enoitalia (Italy)..

Stainless steel construction. Possibility of filling 180-220 liter bags. Opening gripper for aseptic taps. Programming PLC. Manual handling to fill four containers on one tray. Integrated DIN25 rubber impeller pump. Air compressor 8 bar. Nitrogen 0.3 bar

Automatic bag in box bottling device, which allows bottling up to 7000l/h. The device is suitable for small entrepreneurs who bottle approx. 5000 bags per year. Pre-settable dispenser automation (electromagnetic pre-set meter). The possibility of adjusting the bottling height makes the work easier. Bottling takes place under pressure. Work process: the operator removes the cap -> autofill -> the operator closes the cap. additional information: minimum dosage for 1L calibration. Accuracy +/- 5...10cl; also suitable for bottling canisters (max. D85mm); max. working temperature +80C; The use of different sensors ensures the possibility of bottling different liquids such as juice, wine, oil, etc. Please let me know when ordering! ; Easy to clean and maintain, as the piping simply opens... also possible to sterilize with steam +110C (accessory). Extras: pump, sterilization with steam +110C.

Stainless bottling gun for filling storage bags. We recommend purchasing an additional pump, overpressure switch and scale when building a complete and simple bottling solution. If you want to bottle hot liquid, then the possibility to insulate the handle of the gun..

The bottler is intended for filling wooden barrels. A simple solution that allows/consists of: 150l intermediate tank with full discharge and pneumatic float, HP 0.5 volume pump EURO20 with flexible working element, adjustable automatic pressure relay, stainless steel support cart, stainless steel gun for filling with return flow, digital flow meter, hose 5m. Dimensions: 1500x800x1400 mm, weight 50 kg.

.

Automatic dispenser with pump, pressure switch, inox storage unit and support frame and Digital flow meter ENO 24 for wine, juice.• Volumetric pump EURO 20 with rubber impeller , • Fitting DIN 20/25, • Cable for electricity 220V 50hz singlephase, • Stainless steel support without wheels, • Stainless steel pressure tank, with no-foam valve, • Automatic pressure switch, • One way inox valve, • Rubber pipe. Power 0,37kw 220V, max. filling rate 1000l/h,  dimensions 240x300x430mm, weight 20kg.Optional: Digital flow meter ENO 400 for oil and viscous juice, Inox trolley (not compatible with cod.9024), KIT for filling bag in box, with manual closing system.
