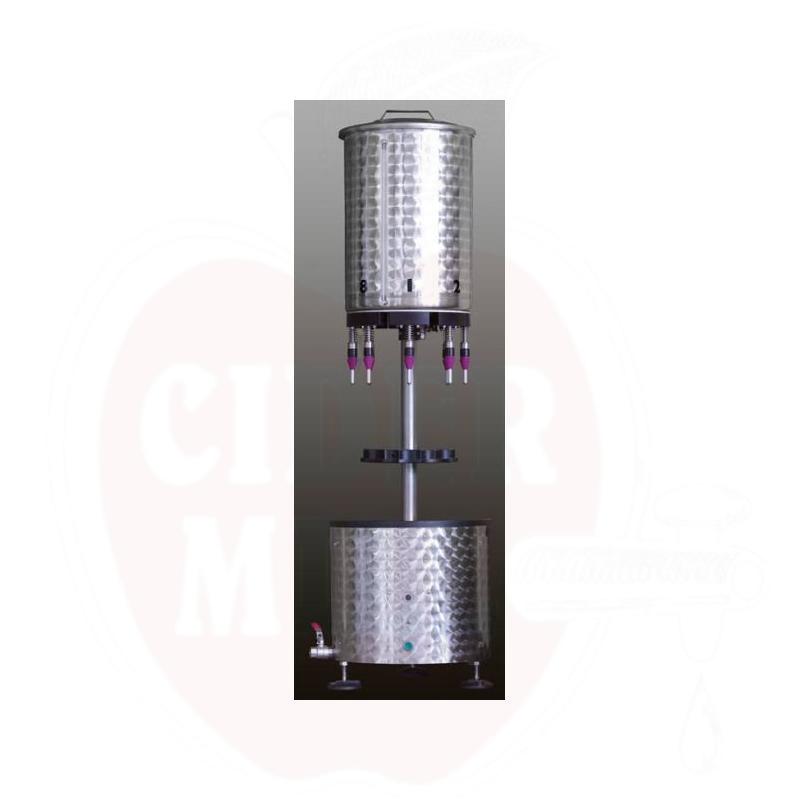

Rotating filler Troxler TA8VA 1000l/h

Sterile bottler for wines, juices and other liquids. Professional and adjustable bottling valves, the bottle filling process starts automatically when the bottle is pushed under the valve, the filling stops automatically when the desired filling height is reached, the bottle height, bottle diameter and filling height can be easily adjusted, with a stainless steel container. The device can be adjusted according to the height and diameter of the bottle. The filling system can also be used to fill special bottles by changing bottle centering plates, which can be ordered separately. The upper part of the TA8VA models (juice tank with valves) rotates with an electric motor at an adjustable speed. The flow of juice to the intermediate storage tank is controlled by the piping inside the central stem, the connecting valve is located in the lower part of the unit. Technical data: power consumption 60W/230V, dimensions 500x500x1800mm, weight 50kg, bottling nozzles 8pcs, productivity/throughput 1000l/h, tank size 50l, bottle diameter 76-90mm, max. bottle height 500mm. Additional equipment: automatic filling of the container (26l) with a pump, diameter of bottles 40-120mm.
