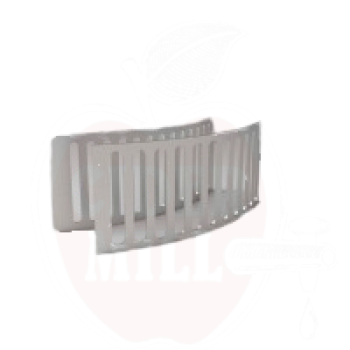

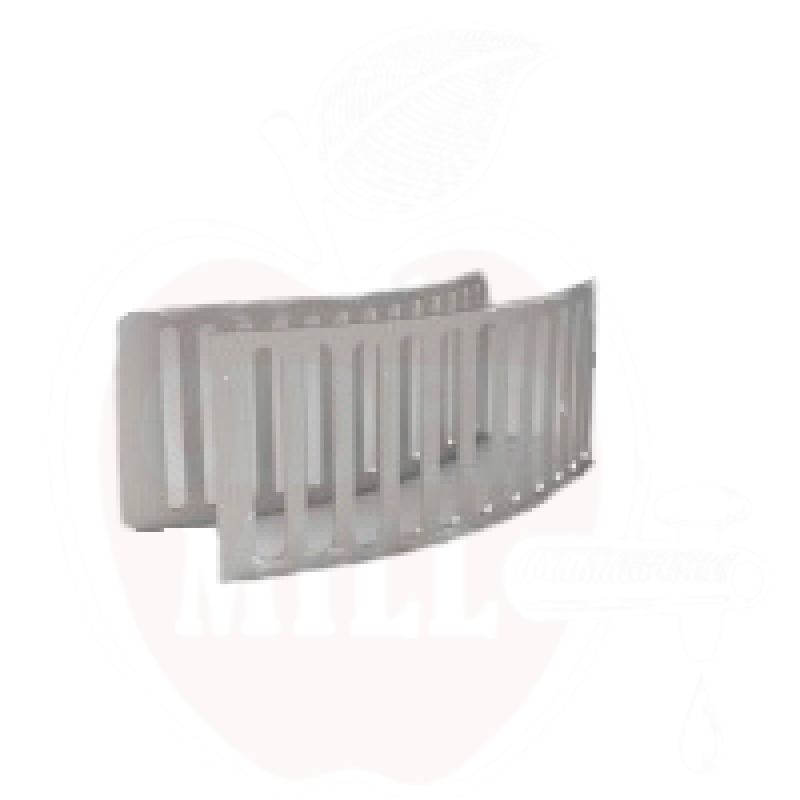

rib-sieve 15mm

Fruit Washing and Crushing Device. The fruits go to the input hopper, then after soaking move via elevator towards the secondary clear water spray system. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both ways, with 2 rotating, 2 fixed wheels or vibration-free feet. Requires minimal maintenance. Technical details: Performance: 1500-2000 kg/h. Electric demands: 4 kW, 400 V, 16 A. Material: Wnr. 1.4301, AISI 304 stainless steel. Weight: 275 kg. Tub water capacity: 280 L. Washing water supply: 100-200 L/h (depending on the setting). Water connection: ¾" quick connector. IP65 certified electronics. Grinder with a massive crushing hammer (available for beetroot and quince). The grinder can be by-passed and turned, this way the machine is capable of processing stone-fruits. Noise emission: 60-70 dB. 4 pcs of strong, counter-rotating brushes for intense cleaning. Requires minimal maintenance. Adjustable belt speed. Options: Changeable diameter sieve: for changing the texture of the mash. Stop 'n' Go system: membrane sensor that allows the fruit washer/grinder and the belt press to work together. Dosing module: sliding door with end-switch that allows safe dosing from the grinder to the pack press. The principle of the device is to clean and crush fruits before juice pressing, ensuring a cleaner and higher quality end product. The device is designed for professional use in the food industry and juice production.

Crusher sieve with 5mm holes.

Stainless fruit and vegetable washing and crushing device with auger lifting device. Immediately after cleaning, the product is transported to the crusher by means of an auger. Pre-cleaning of products using water pressure valves and pre-cleaning brushes. Material: stainless (1.4301); Crusher productivity: 2000kg/h. Manufacturer: Maurer Additional price: belt baler start/stop automation, bale baler dispenser.

Additional equipment of the crusher M100 - a stainless screen with round holes..

Additional equipment of the crusher M100 - stainless sieve with 3 mm holes, which is suitable for crushing berries..
