Pump Atex P18 for alcohol

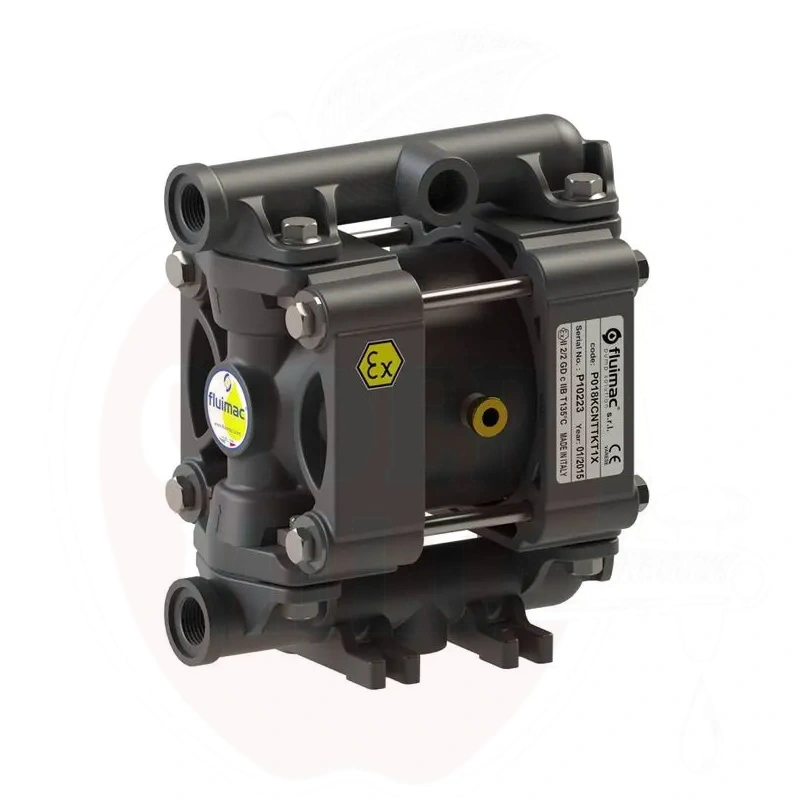

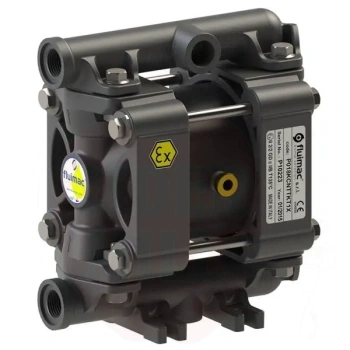

Phoenix Food 18 - Industrial Air-Operated Pump for Liquids and Powders Phoenix Food 18 air-operated pump is a versatile industrial solution for efficient pumping of various liquids and powders. This reliable device is specifically designed to handle both regular and flammable liquids, including alcohol. Technical specifications: Maximum output: 20 liters per minute Maximum compressed air working pressure: 8 bar Liquid connection fittings: 1/2 tri-clamp Compressed air connection: 6mm Pump advantages: Safe idle operation Universal use with different substances Reliable industrial construction Easy installation and maintenance Phoenix Food 18 pump is ideal for food industry, chemical industry, and other industrial sectors where a reliable solution for pumping liquids or powders is needed.

Phoenix 30 Pneumatic Pump for Liquids and Powders Phoenix 30 is a powerful and versatile pneumatic pump, ideal for pumping wine, beer, wort, and various liquids. The pump is also suitable for transporting flammable liquids like alcohol and powders. Technical Specifications: Capacity: up to 35 liters per minute, Lifting height: up to 70 meters, Suction depth: 9.8 meters for liquids, 5 meters for dry materials, Maximum compressed air pressure: 7 bar, Liquid viscosity: up to 15,000 cps. Features and Connections: Connection fittings: 1 inch, Compressed air connection: 6 millimeters, Operating noise: 65 dB, Operating temperature: -20°C to +95°C, Weight: 3.8 kg. Phoenix 30 pump is a reliable device that allows safe operation even when idling. The device is compact and easy to install, suitable for both industrial and smaller-scale applications.

Phoenix P700 - Powerful Air-Operated Pump for Industrial Use Phoenix P700 is an efficient air-operated pump, ideal for industrial pumping of liquids and powders. This versatile device successfully handles various liquids, including alcohol, wort, wine, beer, and oil. Technical Specifications: Maximum output: 700 liters per minute Delivery height: up to 80 meters Suction depth: liquids 9.8 meters, dry materials 5 meters Maximum compressed air pressure: 8 bar Viscosity: up to 50,000 cps Operating Characteristics: Connection fittings: 2" BSP DN50 Compressed air hose connection: 3/4" Operating temperature: -20°C to +95°C Operating noise level: 78 dB Device weight: 37.6 kg Phoenix P700 is equipped with an idle function and is suitable for use in various industrial environments. The pump ensures stable and reliable operation even when pumping complex liquids and materials.

PF 120 Industrial Diaphragm Pump - FDA Certified Stainless Steel PF 120 is an industrial diaphragm pump made of high-quality FDA-certified electropolished stainless steel (AISI 316). The pump is designed to ensure maximum reliability and safety in pumping industrial fluids. Operating Principle The pump uses a compressed air-operated double diaphragm system. The diaphragms move alternately under compressed air power, creating effective suction and pressure force. This technology ensures safe pumping of fluids and maintains product quality. Technical Parameters Flow rate: 120 l/min Operating pressure: 8 bar Discharge head: 80 m Dry suction lift: 5 m Wet suction lift: 9.8 m Solid particle passage: 4 mm Noise level: 72 dB Viscosity: 25,000 cps Displacement per stroke: 200 ml Technical Specifications Fluid connections: tri-clamp DN25 ISO 2852 Air connection: 3/8" BSP Weight: 9.6 kg Operating temperature: -20°C to +95°C ATEX certificates: II 3/3 G Ex h IIC T4 Gb and II 3 D Ex H IIIB T135°C Db X Materials and Construction Electropolished stainless steel (body) PTFE diaphragm and seals (industrial fluoropolymer) Applications Food industry processing Pharmaceutical industry solutions Chemical industry applications High hygiene standard production

Food Industry Pump for Liquid Transport Professional food industry pump specially designed for safe pumping of various beverages and liquids. The device is ideal for small producers, winemakers, and beer brewers. Technical Specifications: Maximum operating temperature: +90°C Power: 0.35 kW Rotation speed: 1400 rpm Capacity: 2400 liters per hour Connection: 25mm fitting Applications: The pump is suitable for handling the following liquids: Wine Beer Cider Vinegar Other non-strong liquids The device complies with all food industry standards and ensures safe and efficient liquid transport in the production process.

High-Quality Italian Helikor Pump for Viscous Liquids The professional Helicor series pump is specifically designed for processing thick food liquids in the food industry. This reliable device is ideal for pumping honey, food oils, and other viscous liquids. Technical Specifications: Model: Helikor (Helicor) Connection diameter: 50mm Motor power: 1.5 kW Maximum productivity: 1500 liters per hour Motor speed: 1400 rpm Device dimensions: 775x1000x400 mm Weight: 28 kg Additional Equipment: Adjustable pump speed Dry run protection system The pump complies with all food industry norms and standards, ensuring safe and efficient processing. The device is made from high-quality materials and is designed for long-term professional use.

Stainless Steel Magnetic Drive Liquid Pump. Durable and reliable magnetic drive pump is ideal for pumping liquids at temperatures up to +100°C. The pump is equipped with high-quality stainless steel inlet and outlet ports and a convenient on/off switch. Technical Specifications: Power: 10 W, Power Supply: 240 V, Flow Rate: 8-12 liters per minute, Head Height: up to 1.5 meters, Connections: 1/2" stainless steel, Maximum liquid temperature: 100°C. Pump Advantages: Fully enclosed housing, Quiet operation, Quality construction, 3-year warranty. Applications: Liquid circulation, Transfer systems, Cleaning solution circulation, Cooling water circulation for water-cooled fermentation tanks. NOTE! To avoid pump damage, do not run the device dry.

Novax 25 Electric Pump for Food Liquids Novax 25 is a powerful bidirectional self-priming electric pump, ideal for pumping food liquids. The device is equipped with a 0.6 hp motor that provides 1450 rpm and can pump up to 45 liters of liquid per minute. Main advantages: Lifting height up to 12 meters. Suitable for pumping wine, oil and beer. Safe to use with liquids up to 35°C. Equipped with a star-shaped impeller. Applications: Agriculture, Winemaking, Horticulture, Boating. Technical specifications: Power supply: 220V, Motor power: 0.6 hp, Speed: 1450 rpm, Flow rate: 45 L/min, Hose connection: Ø25 mm, Dimensions: 250x120x190 mm, Weight: 6 kg. The pump works efficiently with clean liquids containing less than 0.5% suspended particles. A special suction filter can be installed for additional filtration. The device complies with CE safety requirements.

65W Magnetic Drive High-Temperature Industrial Pump for Brewery Industry Powerful 65W magnetic drive industrial pump specifically designed for brewery and food industry needs. The device is equipped with a stainless steel pump unit and operates at 220-240V. Technical Specifications: Pumping capacity: up to 52 liters per minute Head height: up to 6.5 meters Power supply: 220-240V (50-60Hz) Power rating: 65W Connections: 3/4 BSPT thread Benefits and Features: Suitable for breweries with capacity of 50-400 liters Stainless steel pump head Quick-release pump head with wing nuts Magnetic drive technology ensures maximum cleanliness Suitable for pumping high-temperature liquids Innovative Magnetic Drive Technology The pump uses innovative magnetic drive technology where impeller rotation occurs through magnetic field. This prevents lubricants or other contaminants from entering the pumped liquid, ensuring highest purity in food and beer production. Applications and Advantages The device is an optimal choice for brewers, food industry, and pharmaceutical industry where maximum cleanliness and reliability are essential. The pump design enables operation at high temperatures and ensures stable and reliable performance.
