Plantation spacing-weep wgh

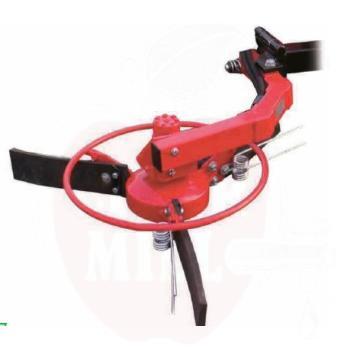

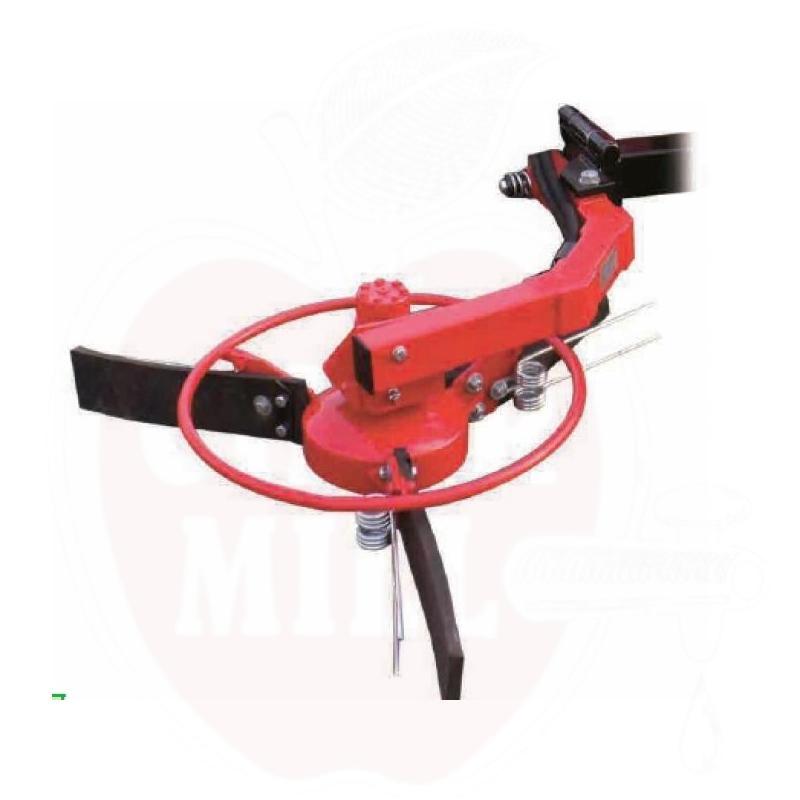

Hydraulic weeding machine around seedlings from a Polish manufacturer. Installation behind the tractor Weeding depth max. 15cm Required oil pressure 20l/min Productivity 0.2...0.7 ha/h Weight 100kg Dimensions: 165x200x130cm.

The Eco hydraulic weeding machine Jagoda Zuza is designed for mechanical weeding in organic farms, where crops grow in rows, with such a distance that the tractor can pass the cultivated path. Eco weeder ZUZA with rotating heads is suitable for weeding between plants and rows, the purpose is to match different plants under different types of soil and different row spacings in organic farming. We offer one of the most effective organic weed control solutions on the market in different versions to reduce labor costs and inconsistent weeding and eliminate the use of herbicides in fruit and vegetable gardens. The device itself has been working in many plantations for more than 15 years, which is confirmed by a large number of satisfied customers, and it has been constantly developed. Jagoda provides a 2-year warranty for the device. The ZUZA eco-hydraulic weeder is adapted for weeding rows of vegetable crops, flowers, lavender, lettuce, pumpkins, rhubarb, asparagus, strawberries and young currants, chokeberries and other plants up to 0.5 meters high. Complete with device spring cleaner and/or vertical knives that destroy weeds. Knives are recommended for use on rocky and hard ground. The device is equipped with a valve that regulates the speed of the rotary heads. The working depth is determined by changing the relative position of the head and the support plate. Possibility to install several cleaning devices on the device to ensure simultaneous cleaning of 2..3 and more furrows. In addition, the possibility to move the tractor axle on the frame of each section by 20 cm to the right or left. The creative design of our mechanical weeding machine allows farmers to save time and money as it replaces 6-8 workers. Transport from the manufacturer's warehouse at an additional cost! The device is produced in different versions: Control of the rotary heads by means of mobile levers, available manually or by joysticks for all versions, to eliminate the need for physical force and increase the working time of the device: ZU-001: single-line, ZU-001A: single-line with joysticks, ZU-001F: single-line with internal hydraulics, ZU-002: Double row, ZU-002F: Double row with internal hydraulics, ZU-003: Three rows with internal hydraulics. Technical information Zuza 1: working width 1...4cm, height 2150mm, width 1240-1550mm, length 2220mm, working element diameter 300/225mm, employees: operator + tractor, working speed 1-3km/h, productivity 0.5...1ha /h, oil consumption 25l/min, weight 250kg.

Inter-row rotary cultivator Jagoda LUCY, for weed control in orchards, vineyards and berry bushes. This reduces your costs and your environmental impact! No more herbicides: the automatic weed control inter-row rotary cultivator is designed for organic farms. The use of this weed remover makes it possible to significantly reduce or even eliminate the use of herbicides in fruit production. The width is adjusted hydraulically, allowing the use of different row width crops. Rotary head: 300 mm equipped with 3 vertical knives, Orchard rotary cultivator LUCY is controlled by an electric console in the tractor cab, Sensor adjustment for high or low sensitivity for high precision weeding: Sensor adjustment allows you to avoid the risk of plant damage. In production 2s version: Version LU-01F: if the tractor has a low oil pressure pump < 30 l/min, we recommend using an internal hydraulic set: pump + oil tank + radiator AHF. LU-01F version: If there is no 3-point linkage, we customized the bracket according to the tractor model and include hydraulic lifting and lowering. 2. LU-01R: mounted on the rear of the tractor on a 3-point lever universal frame, which can also be used on other machines. Due to different soil conditions and customer requirements, our engineers are working on developing the design of the LUCY inter-row weeding machine, offering additional equipment that can be easily added to work in different conditions and possibilities: - Rotor cultivator 30 cm; – a blade in a hoe; – Disc plow; – Disc cultivator. Transport from the manufacturer's warehouse at an additional cost! Specifications: Versions: 1-sided LU-01F and LU-01R. Installation method for tractor 3-point linkage - CAT 2 or special bracket (front) 3-point linkage - CAT 2 (rear). Max working width 2026 mm 2010 mm Min working width 2026 mm / 1610 mm, Shipping width 2026 mm / 1610 mm, Length 1180 mm / 1209 mm, Height 1160 mm / 1066 mm, Weeding depth 10-40 mm, Weeding head size 300mm, Working speed 1 - 3 km/h, Oil requirement (l/min) 30 l/min or external PTO 30 l/min, Weight 180kg / 220 kg..

Jagoda KLAUDIA is designed for rapid mechanical weed control in organic orchards, vineyards, berry and fruit gardens where lateral weeding is required. The machine is equipped with finger wheels, thanks to which soil and weeds are easily loosened from between plants and around trees, which ensures a wider coverage of cultivated soil. We offer 3 different degrees of hardness, Ø 700 mm and Ø 540 mm soil drills (soft: green, medium: orange, hard: red). The standard model is equipped with 2 vertical front loosening wheels and one horizontal rubber tiller. The roller cultivator loosens the soil and the tiller directs it towards the plants. Easy installation by adding 2, 3 or 4 discs to cultivate a wider area up to 500mm. Easy to adjust tilt and swivel angles. Transport from the manufacturer's warehouse at an additional cost! Technical data: Single-sided X1 / Double-sided X2 version available. Min Width (mm) 1720mm / 2300mm, Max Width (mm) 2120mm/3100mm, Number of disc cultivator 2 (standard) x 3 x 4, Cultivator size Ø 70 or Ø 54, Working speed 8 – 15 km/h, Working height 1040 mm, Disc diameter 425mm, Transport length 1500mm, Installation method (rear and front) 3-PL Cat 1 & 2 3-PL Cat 1 & 2, Weight 220kg / 340kg.

The orchard disk cultivator Jagoda ALEK is intended for removing soil from under the rows of crops. It is also used for weed control in orchards, vineyards and crops where lateral weeding is required and for backfilling plant bases to protect roots from frost. Disc Cultivator: This is a robust model, ideal for use on heavy stony or muddy soil. The machine is equipped with 2 discs and is produced in single-sided and double-sided versions. Rotation speed based on tractor speed up to 15 km/h, Working depth: 5 cm to 12 cm, Disc diameter: 425 mm, Cultivator Frame: Reversible, i.e. can be mounted behind or in front of the tractor, connected by 3-point linkages, Hydraulic width shift: produced on both sides by one - or on both sides from 1.7 m on one side to 3.3 m on both sides. Adjustable rubber wheels for adjusting the height of the machine. Stand for storage and transport positions In addition to the orchard disk cultivator, the LUCY inter-row weeder, the KLAUDIA orchard tiller, the inter-row blade set, etc. can be attached to the same frame. Transport from the manufacturer's warehouse at an additional cost! Cider Mill OÜ is the official representative of Jagoda products in Estonia! Technical data: models single-sided/double-sided, Width 1700mm/2500mm, Max width (cm) 2100mm/3300mm, Disc cultivator 2pcs/2x2pcs, transport length 700mm, working speed up to 12km/h, work/transport height 1040mm, Disc diameter 425mm, transport width 1700mm , Weight 190 kg 250 kg.

The disc cultivator Jagoda ALEK is intended for removing soil from under the rows of crops. It is also used for weed control in orchards, vineyards and crops where lateral weeding is required and for backfilling plant bases to protect roots from frost. Disc Cultivator: This is a robust model, ideal for use on heavy stony or muddy soil. The machine is equipped with 2 discs. Rotation speed based on tractor speed up to 15 km/h, Working depth: 5 cm to 12 cm, Disc diameter: 425 mm. Can be connected to the rear frame of the tractor... suitable for e.g. Divide the ALEK frame. Transport from the manufacturer's warehouse at an additional cost! Cider Mill OÜ is the official representative of Jagoda products in Estonia!.

The Eco hydraulic weeding machine Jagoda Zuza is designed for mechanical weeding in organic farms, where crops grow in rows, with such a distance that the tractor can pass the cultivated path. Eco weeder ZUZA with rotating heads is suitable for weeding between plants and rows, the purpose is to match different plants under different types of soil and different row spacings in organic farming. We offer one of the most effective organic weed control solutions on the market in different versions to reduce labor costs and inconsistent weeding and eliminate the use of herbicides in fruit and vegetable gardens. The device itself has been working in many plantations for more than 15 years, which is confirmed by a large number of satisfied customers, and it has been constantly developed. Jagoda provides a 2-year warranty for the device. The ZUZA eco-hydraulic weeder is adapted for weeding rows of vegetable crops, flowers, lavender, lettuce, pumpkins, rhubarb, asparagus, strawberries and young currants, chokeberries and other plants up to 0.5 meters high. Complete with device spring cleaner and/or vertical knives that destroy weeds. Knives are recommended for use on rocky and hard ground. The device is equipped with a valve that regulates the speed of the rotary heads. The working depth is determined by changing the relative position of the head and the support plate. Possibility to install several cleaning devices on the device to ensure simultaneous cleaning of 2..3 and more furrows. In addition, the possibility to move the tractor axle on the frame of each section by 20 cm to the right or left. The creative design of our mechanical weeding machine allows farmers to save time and money as it replaces 6-8 workers. Transport from the manufacturer's warehouse at an additional cost! The device is produced in different versions: Control of the rotary heads by means of mobile levers, available manually or by joysticks for all versions, to eliminate the need for physical force and increase the working time of the device: ZU-001: single-line, ZU-001A: single-line with joysticks, ZU-001F: single-line with internal hydraulics, ZU-002: Double row, ZU-002F: Double row with internal hydraulics, ZU-003: Three rows with internal hydraulics. Technical information Zuza 1: working width 1...4cm, height 2150mm, width 1240-1550mm, length 2220mm, working element diameter 300/225mm, employees: operator + tractor, working speed 1-3km/h, productivity 0.5...1ha /h, oil consumption 25l/min, weight 250kg.

Jagoda KLAUDIA is designed for rapid mechanical weed control in organic orchards, vineyards, berry and fruit gardens where lateral weeding is required. The machine is equipped with finger wheels, thanks to which soil and weeds are easily loosened from between plants and around trees, which ensures a wider coverage of cultivated soil. We offer 3 different degrees of hardness, Ø 700 mm and Ø 540 mm soil drills (soft: green, medium: orange, hard: red). The standard model is equipped with 2 vertical front loosening wheels and one horizontal rubber tiller. The roller cultivator loosens the soil and the tiller directs it towards the plants. Easy installation by adding 2, 3 or 4 discs to cultivate a wider area up to 500mm. Easy to adjust tilt and swivel angles. Transport from the manufacturer's warehouse at an additional cost! Technical data: Single-sided X1 / Double-sided X2 version available. Min Width (mm) 1720mm / 2300mm, Max Width (mm) 2120mm/3100mm, Number of disc cultivator 2 (standard) x 3 x 4, Cultivator size Ø 70 or Ø 54, Working speed 8 – 15 km/h, Working height 1040 mm, Disc diameter 425mm, Transport length 1500mm, Installation method (rear and front) 3-PL Cat 1 & 2 3-PL Cat 1 & 2, Weight 220kg / 340kg.

The orchard disk cultivator Jagoda ALEK is intended for removing soil from under the rows of crops. It is also used for weed control in orchards, vineyards and crops where lateral weeding is required and for backfilling plant bases to protect roots from frost. Disc Cultivator: This is a robust model, ideal for use on heavy stony or muddy soil. The machine is equipped with 2 discs and is produced in single-sided and double-sided versions. Rotation speed based on tractor speed up to 15 km/h, Working depth: 5 cm to 12 cm, Disc diameter: 425 mm, Cultivator Frame: Reversible, i.e. can be mounted behind or in front of the tractor, connected by 3-point linkages, Hydraulic width shift: produced on both sides by one - or on both sides from 1.7 m on one side to 3.3 m on both sides. Adjustable rubber wheels for adjusting the height of the machine. Stand for storage and transport positions In addition to the orchard disk cultivator, the LUCY inter-row weeder, the KLAUDIA orchard tiller, the inter-row blade set, etc. can be attached to the same frame. Transport from the manufacturer's warehouse at an additional cost! Cider Mill OÜ is the official representative of Jagoda products in Estonia! Technical data: models single-sided/double-sided, Width 1700mm/2500mm, Max width (cm) 2100mm/3300mm, Disc cultivator 2pcs/2x2pcs, transport length 700mm, working speed up to 12km/h, work/transport height 1040mm, Disc diameter 425mm, transport width 1700mm , Weight 190 kg 250 kg.

The Wirax disc harrow is used both in the pre-sowing treatment of heavy soil after plowing and in mild tillage, applying the idea of soil mulching. The main advantage of the machine is that it cuts and mixes plant residues with the soil and can work for very long hours without jamming. Used after plowing, the harrow intensively cuts and crushes the surface of the soil and at the same time compacts the subsoil, which accelerates its settling. In recent years, weeding has become an important element of the two-phase ecological cultivation of stubble fields, which eliminates the need for the use of herbicides. Model with 13 discs. Transport from the manufacturer's warehouse at an additional cost! Cider Mill OÜ is the representative of Wirax products in Estonia!.

The Wirex Plow is designed for subsoil as well as sowing and pre-winter plowing to a depth of up to 28 cm, in all types of soil, except stony soil. The machine ensures completely efficient plowing on both flat and rough fields with an inclination angle of up to 8%, whether longitudinal or transverse. The field should be plowed when the soil has reached optimal moisture, when the plow can properly dig into the ground and break up any lumps of soil. Available models: 1-3 covers Transport from the manufacturer's warehouse at an additional cost! Cider Mill OÜ is the representative of Wirax products in Estonia!.
