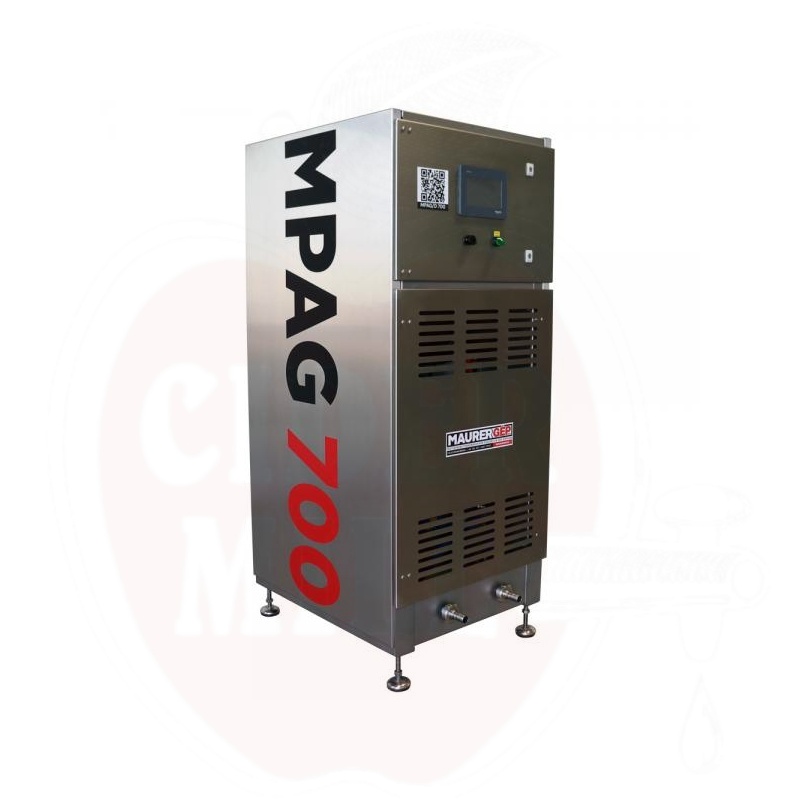

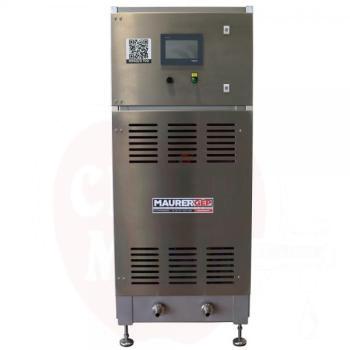

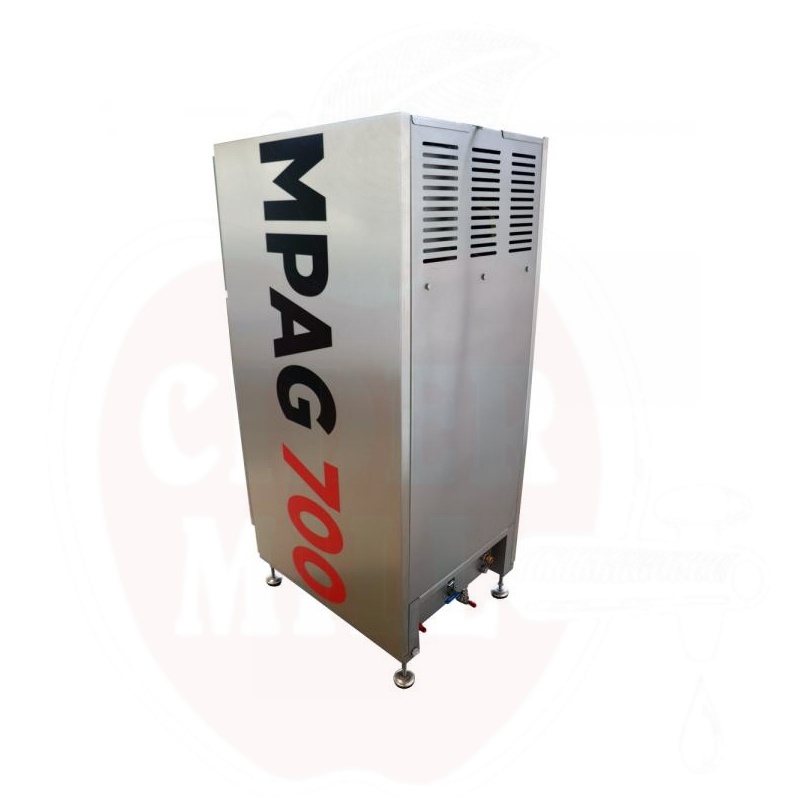

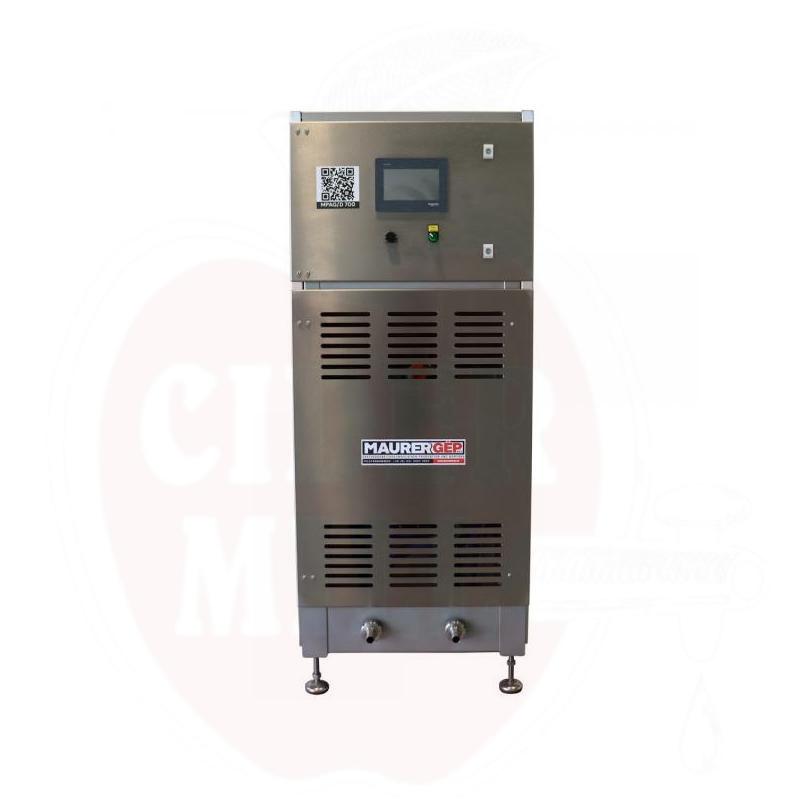

Pasteur MKAG 700, gas
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 2000000008110
Brand:
Unit: pc
Stock qty: On special order
Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
Transport time inside Estonia for stock products approx. 3-5 working days. NOTE! Due to the rapid price increase, non stock products prices are subject to change without notice! Default prices with 22% VAT.
Files
The pasteurizer used to heat liquid, low viscosity foods, and equipment for heat treatment of drinking water. The machine has been designed accordance with security requirements. The heat exchanger does the heat treatment by a fitted stainless steel tube.The heat is provided by a gas or fuel oil boiler. The heating water temperature is controlled by the boiler. The temperature of the treated liquid is controlled by a by-pass valve. Temperature check at two points, in the heat exchanger and once on the outlet. The machine automatically controls the heat exchanger temperature. The pasteurizer works automatically. If the temperature of the juice falls below the desired temperature, the machine disabled and the juice circulates in the by-pass system until the temperature reaches the set level. Thereafter the machine let the filling. At the end of the work, the tube spiral can be cleaned very easily with the help of a sponge ball. It requires minimal maintenance.Technical details:-Performance: 700 L/h (When heated from 20 °C to 80 °C)-Electric demands: 800W , 230 V, 6 A-Heat performance: 70 kW -Fuel: propane, PB, natural gas-Material: Wnr. 1.4301, AISI 304 stainless steel-Weight: 350 kgDimensions: Length: 850 mm, Width: 690 mm, Height: 1700 mm-IP65 certified electronics-Connections: DN 25-Flue gas discharge:: 110 mm diameter-Automatic temperature control-Automatic by-pass rendszer-Easy to clean with sponge balls-Requires minimal maintenanceOption:- Optinal buffer tank (it can be placed above the pasteurizer).The buffer tank is fully automatic and communicates with the pasteurizer. If the juice is too low, The system will automatically shut down temporarily, until the process starts again. It can work with both bottle filler at the same time. - Semi-automatic Bag in Box filler: MKBiB Top 180 filler - 6 headed bottle filler moduleAccessories: - Sponge balls for cleaning
| Weight (kg) | 250.000000 |
| High (m) | 0 |
| Width (m) | 0 |
| Length (m) | 0 |
