Monoblock filling CF-30 jars 1200pc/h

SKU: 36175
EAN: 2000000036175
Unit: tk
Stock qty: On special order

Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
Qty.: - +
   - or -

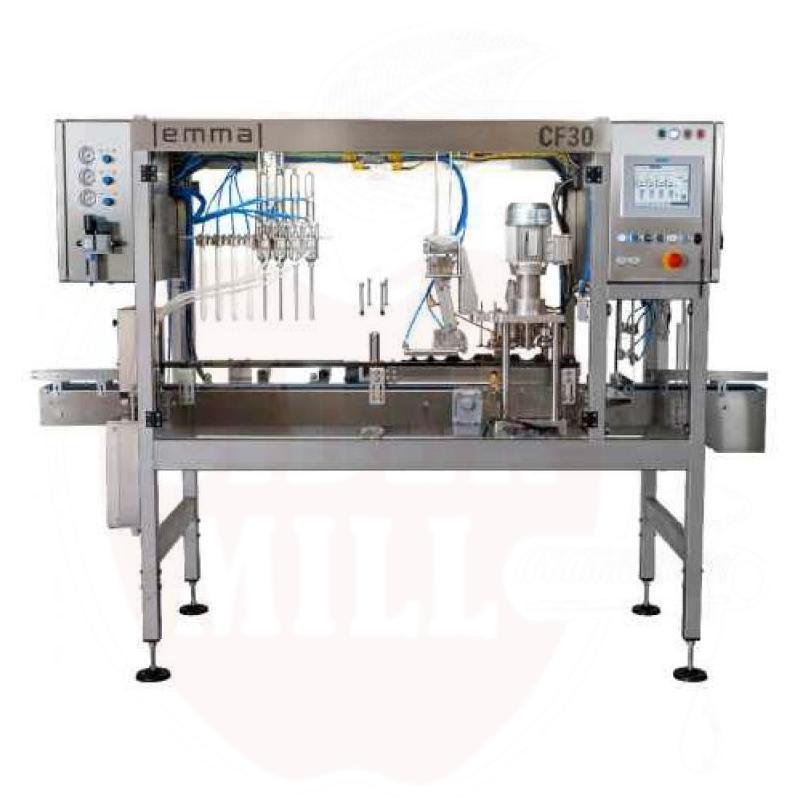

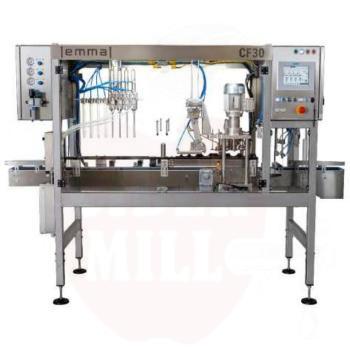

Automatic Can Filling and Sealing Machine for Beverages

Technical Specifications

  • Can dimensions: diameter 63-66 mm, height 33cl-50cl
  • Production capacity: up to 1200 cans per hour
  • Electrical connection: 220V/24V
  • Compressed air: 6 bar
  • Operating temperature: +2°C to +40°C

Filling Process Features

  • Optimal beverage temperature: 0°C to +2°C
  • Carbonation level: 4.5-5.5 g/l
  • Isobaric precise pressure control
  • CO2 dosing before and after filling
  • Automatic weight control

Equipment Features

  • Stainless steel construction
  • Electronic control panel
  • Mechanical lid sealer
  • Remote control capability via internet
  • Includes round collection table

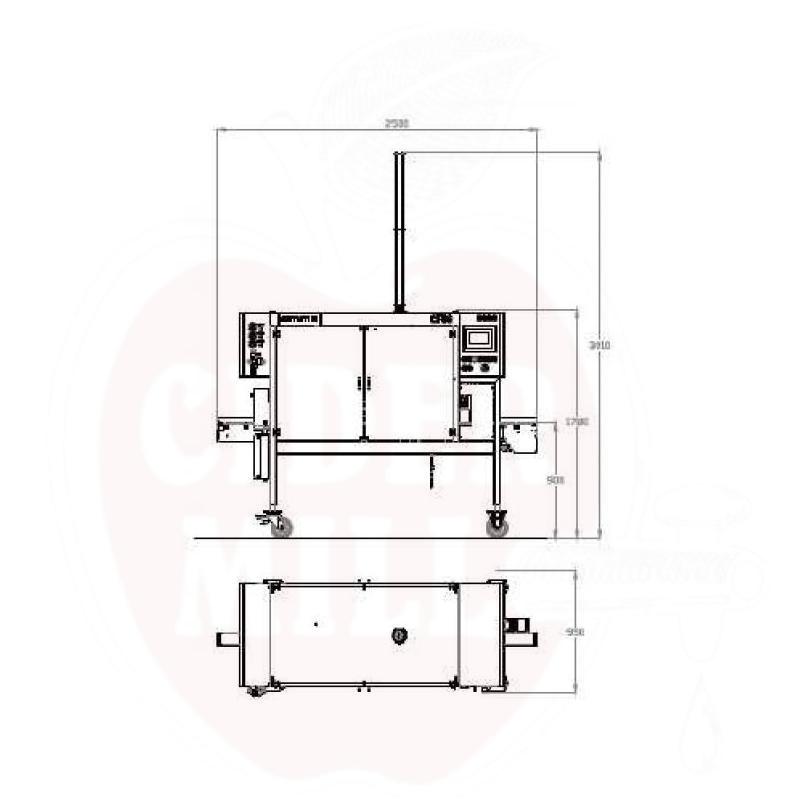

Equipment Dimensions

  • Length: 2500 mm
  • Height: 3010 mm
  • Width: 950 mm

Made in Italy

Keywords: can filling, automatic filling machine, beverage can filling, sealing machine, CO2 dosing, filling line, beverage industry equipment, industrial filling machine

Weight (kg) 0.000000
High (m) 0
Width (m) 0
Length (m) 0
