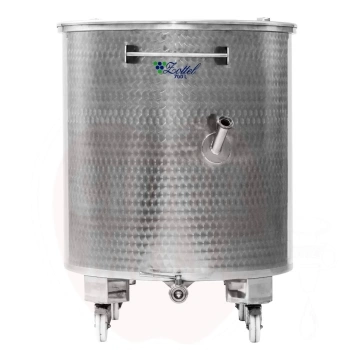

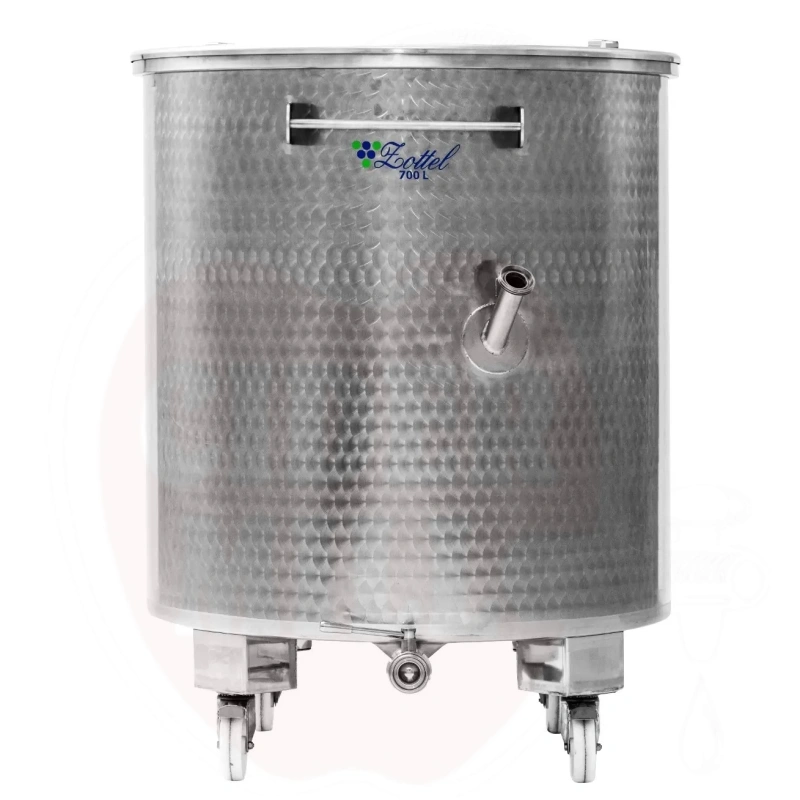

Mixing tank 700l with fitting for agitator

Electric motor three-phase, 1,1 Kw/0,8 Kw. Panel control with emergency stop 24V circuit and transformer (except MIX 90). Mechanical seal Grafite/NBR max 12 BAR. Removable stainless steel shaft lenght 48 cm. Folding helix, automatic opening width 15 cm. Inox valve for dosing. Connection fitting to be indicate at the minimum way 36mm diameter. Engine HP (Kw): 1,5 (1,1). Speed: 1400 RPM. Tank max. capacity: 300hl.

Stainless open cone bottom (10 degree) container with mixer. Size: 500L; Diameter: 800mm; Height: 1020mm, total height 1700mm; valve DN50; Stainless steel Aisi 304 - 18/10; Stainless steel legs with a height of 320 mm; Mixer 0.37kw/380V, 34rpm. ; Extras: adjustable mixer rotations, cooling/warming jacket, Control center, which includes sensors mounted on the lid, closing the mixer when the lid is opened. Larger mixing tanks 700l, 1000l, 1500l and mixing motors of different capacities are available..The size of the tank can vary up to max. +/-10%

Stainless open cone bottom (10 degree) container with mixer. The size of the tank is 700L; Diameter: 955mm; Height: 1020mm, total height 1700mm; valve DN50; Stainless steel Aisi 304 - 18/10; Stainless legs with a height of 320 mm; Mixer 0.37kw/380V, Extras: cooling/heating jacket, insulation, adjustable mixer rotations, control center, which includes lid-mounted sensors, closing when opening the mixer lid. Larger mixing tanks 700l, 1000l, 1500l and mixing motors of different capacities are available..The size of the tank can vary up to max. +/-10%

Stainless steel conical bottom container with floating lid. Size: 600L; Diameter: 794mm; Height: 1570mm; Chrome-plated valve 1"; Stainless steel Aisi 304 - 18/10 Stainless legs with a height of 320mm.The size of the tank can vary up to max. +/-10%

container on stainless legs for fermentation and/or short-term storage of wine. The set includes: legs; conical base; bottom valve 1"; sampling valve 1/2"; upper valve 1/2", upper spring cover, floating cover. Dimensions: diameter 794mm and total height 1820mm..The size of the tank can vary up to max. +/-10%

Tank on stainless legs for wine fermentation and/or short-term storage with cooling jacket. The set includes: cooling jacket 0.91m2/400mm, legs; conical base; bottom valve 1"; sampling valve 1/2"; upper valve 5/4", upper spring cover, floating dust cover, dust cover, thermometer. Dimensions: diameter 794mm and height 1720mm..The size of the tank can vary up to max. +/-10%

A container on stainless legs for fermentation and/or short-term storage of wine. The set includes: legs; conical base; bottom valve 1"; sampling valve 1/2"; upper valve 1/2", upper closable hatch, Dimensions: diameter 794mm and total height 1720mm. Extras: Level sensor, mixer, wheels, insulation..The size of the tank can vary up to max. +/-10%

Stainless steel container with a closed top, a cleaning hatch and a conical bottom. Size: 600L; Diameter: 794mm; Height: 1720mm. Standard equipment: welded legs, sampling valve 1/2", side ball valve 1", bottom ball valve 1", oval cleaning hatch, lid Ø385 mm, analog thermometer, level indicator Ø16 mm, 2 × inert gas connection ½".The size of the tank can vary up to max. +/-10%

Stainless sealed container for storage or fermentation. Dimensions: D794mm, H 1970mm. Standard equipment: welded legs, bottom outlet - ball valve 1", side outlet - ball valve 1", sampling valve DN15, top cover Ø385mm, analog thermometer, level indicator Ø16 mm, 2 × inert gas fitting ½" Extras: valves - DN, WG, garola, TC , Macon ; lower side tap ¾”; fitting DN50 + cap/vent valve, lifting ears, rectangular cleaning door 245 × 310 mm, adjustable feet.The size of the tank can vary up to max. +/-10%

Transport container with a stainless conical bottom for transport with a rocker or forklift. Size: 600L; Diameter: 794mm; Height: 1720mm; Chrome-plated valve 1" ; Stainless steel Aisi 304 - 18/10 Stainless legs with a height of 320mm. Standard equipment: cone base (profile 150 × 100 × 3 mm), lid Ø385mm, outlet - ball valve 5/4", level indicator Ø16 mm, 2 × inert gas fitting ½".The size of the tank can vary up to max. +/-10%

Stainless sealed container for storage or fermentation. Dimensions: D794mm, H 1720mm. Standard equipment: welded legs, bottom outlet - ball valve 1", side outlet - ball valve 1", sampling valve DN15, top cover Ø385mm, analog thermometer, level indicator Ø16 mm, 2 × inert gas fitting ½" Extras: valves - DN, WG, garola, TC , Macon ; lower side tap ¾”; fitting DN50 + cap/vent valve, lifting ears, rectangular cleaning door 245 × 310 mm, adjustable feet.The size of the tank can vary up to max. +/-10%

The containers are suitable for transport and handling with manual or motorized forklift. They are designed to store wine, spirits, cooking oils and other food liquids. The base is made of AISI304 stainless steel and ensures stability, reliability and safety during transport. Dimensions: D794mm, length 1970mm and height 1500mm Standard equipment: welded stainless steel lift bracket (profile 150 × 100 × 3 mm), 5/4” valve, handle, top hatch Ø385 mm. Additional equipment: valves - DN, WG, garola, TC, Macon, connection DN50, stainless steel data plate.

Stainless open cone bottom (10 degree) container with mixer. Size: 500L; Diameter: 800mm; Height: 1020mm, total height 1700mm; valve DN50; Stainless steel Aisi 304 - 18/10; Stainless steel legs with a height of 320 mm; Mixer 0.37kw/380V, 34rpm. ; Extras: adjustable mixer rotations, cooling/warming jacket, Control center, which includes sensors mounted on the lid, closing the mixer when the lid is opened. Larger mixing tanks 700l, 1000l, 1500l and mixing motors of different capacities are available..The size of the tank can vary up to max. +/-10%

Boiler / mixing tank stainless base with dimensions 720 x 720 x 260 h.

With the mixing container, you can adjust the taste of your juice, wine, etc. drink. Complete with a stainless steel mixer with mixing paddles, the speed of which is set to ensure a perfect mixing process, minimizing exposure to oxygen. The stainless steel tank is also complete with 2 valves D25mm at the bottom and D20mm at the top and an added washing head. Dimensions: ø102.5 cm + 20 cm valve; height 179cm, 220V motor 0.18 kW with Schuko plug; Stainless steel mixing spoon as a measuring stick, control hatch with a button inside the lid of the container. Mixer 14rpm or 28rpm (specify when ordering). Device conforming to CE safety standards..

Mixer tank cover with fixing screws and without mixer connection..

Complete with a food-grade silicone scraper strip applied to the bottom shovel to prevent burning and caramelization of the product. Complete with stainless steel sphere valve DIN32, analogical thermometer with stainless steel protection, high thickness reinforced lid and with openings for steam outlet, gearmotor and blades. Ideal to produce high quality jam, thanks to professional analogical thermomter you will be able to check the temperature. Produced in our company and realised in high thickness stainless steel 18/10 (AISI 304). Equipped with: High thickness stainless steel lid reinforced with stainless steel hooks and openings for steam outlet. 220 Volt rpm gear motor - 0,09 kW. Stainless steel blades for mashing. Stainless steel handles. DIN32 stainless steel ball valve with stainless steel hose connector ∅30. Probe input for thermometer. Professional analog thermometer. Stainless steel protection for thermometer.Dimensions: Internal diameter: 710 mm. Height: 800 mm. Overall dimensions with motor: mm 850 x 960 (h). Bottom thickness: 1.5 mm. Wall thickness: 1 mm.
