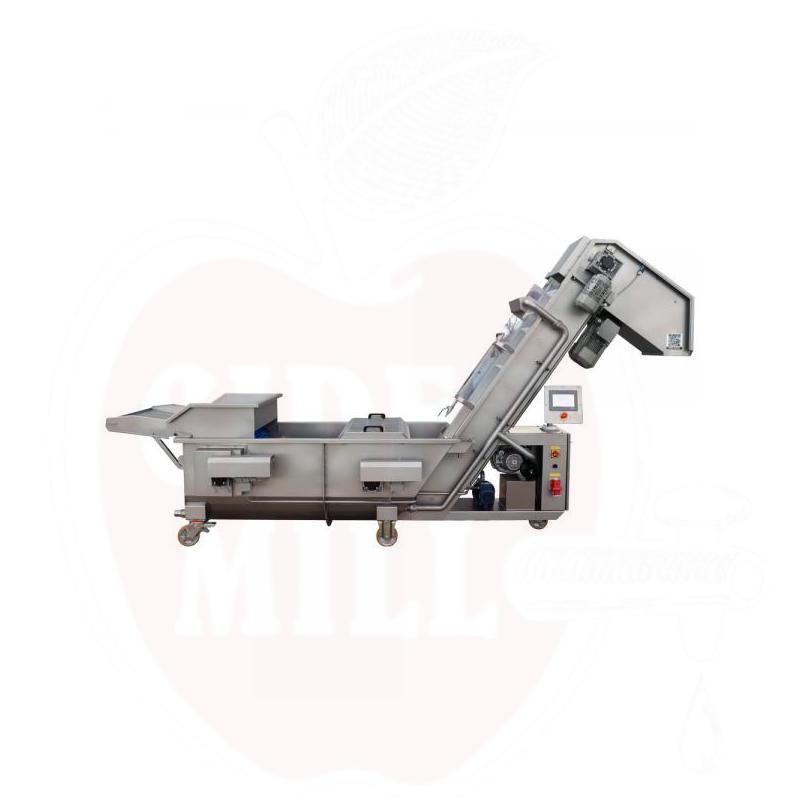

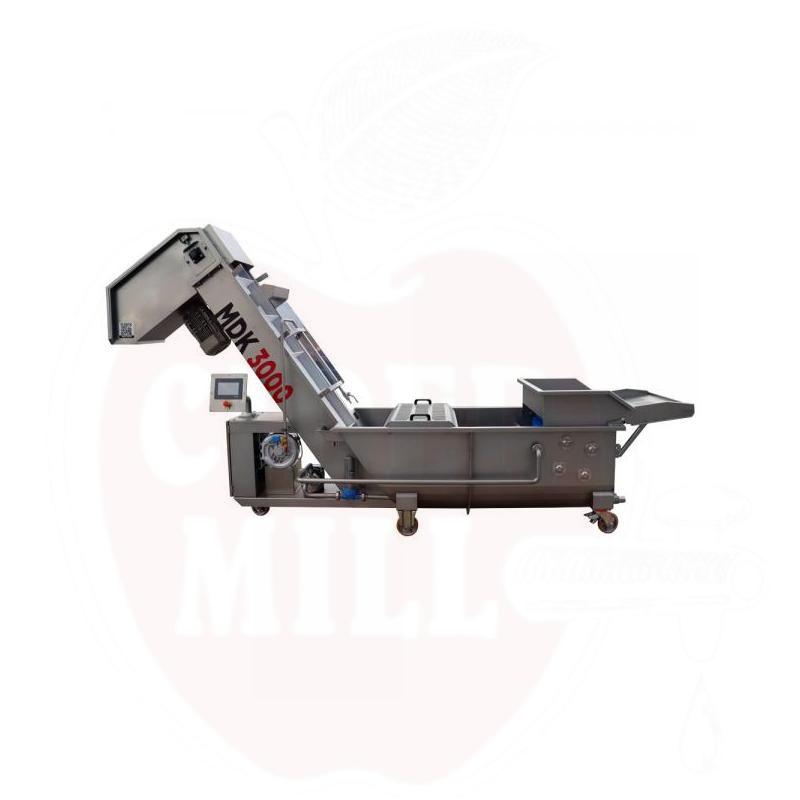

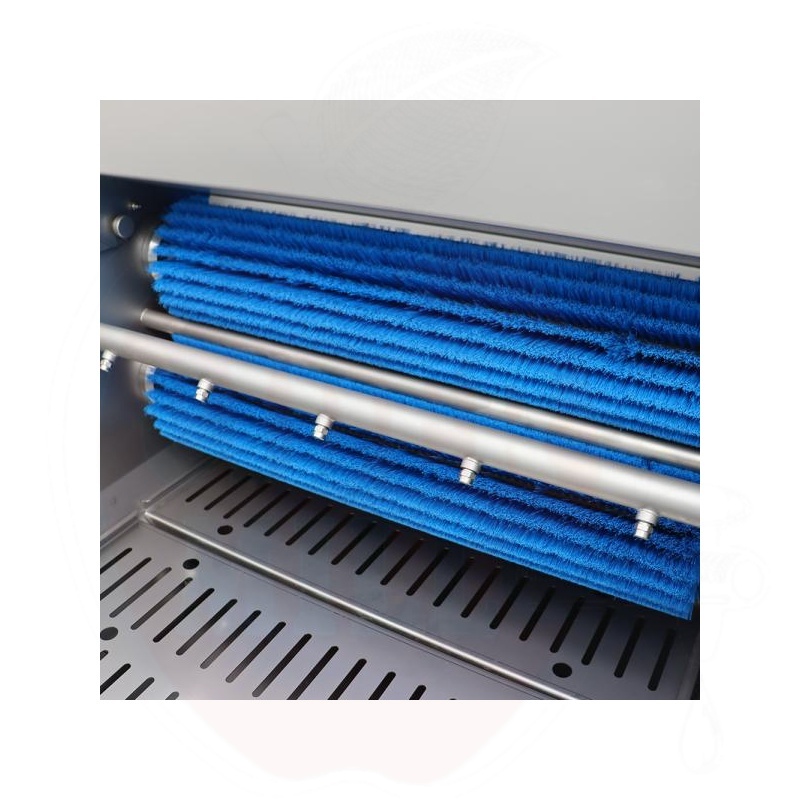

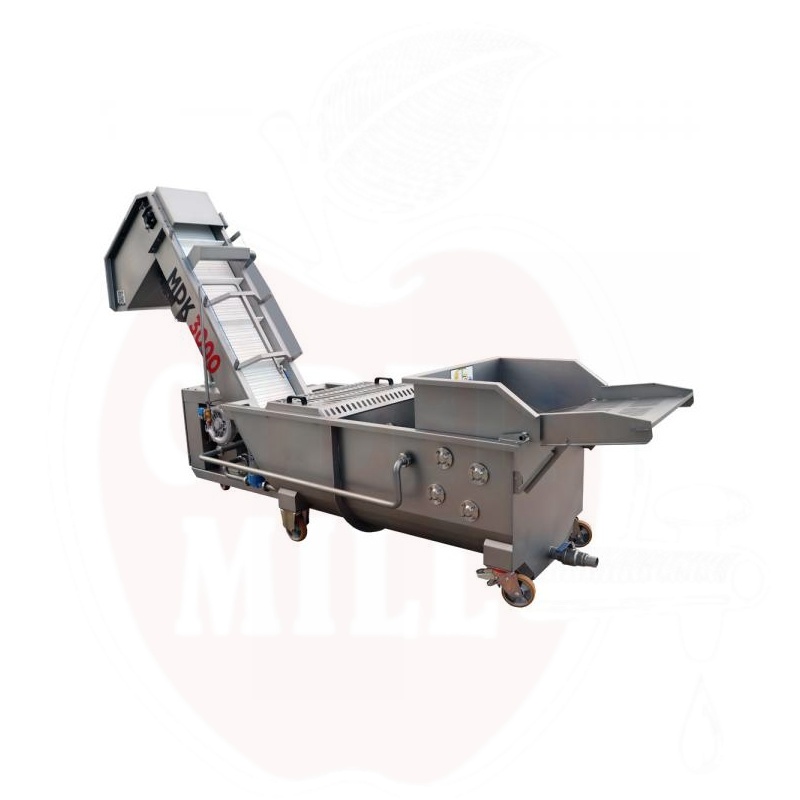

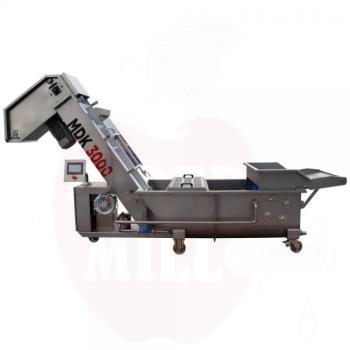

MDK 3000 washer belt with brusher and openable grinder

Specification: productivity 3000kg/h, electricity requirements: 0.55kW/230V/6 A single phase, material: WNr. 1.4301, AISI 304 stainless steel; Dimensions: 530x2530x1050mm, output height: 1270mm (+ -100mm depends on the angle of inclination), Weight: 110kg, IP65 certified electronics, tilting work surface, adjustable height, easy to clean, by massive food industry conveyor belt, speed adjustable both ways, with 2-rotating fixing wheel, requires minimum maintenance, Extras: textured strip tape: +390EUR+km - it helps prevent the fruits from rolling down when working at an angle. Manufacturer: Maurer (Germany)..

German quality - tipper with stainless construction with a lifting height of 725mm. Dimensions: 1800x1600x1400mm; Lifting weight: 1000kg; motor 1.5kw; weight 350 kg. Suitable boxes with dimensions: minimum dimensions 800x800x600mm and maximum 1200x1000x1200mm. The minimum room height in the working process is 2460mm..

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating..Technical details:- Performance: 700 kg/h- Electric demands: 1.5 kW, 400 V, 16 A- Material: Wnr. 1.4301, AISI 304 stainless steel- Weight: 890 kg Dimensions: Length:  2200 mm, Width:    1280 mm, Height:   1180 mm- IP65 certified electronics- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 360 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Food industrial, massive polyester belt, Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- Easy to clean- It requires minimal maintenanceWith adjustable vibration-free machine feet.

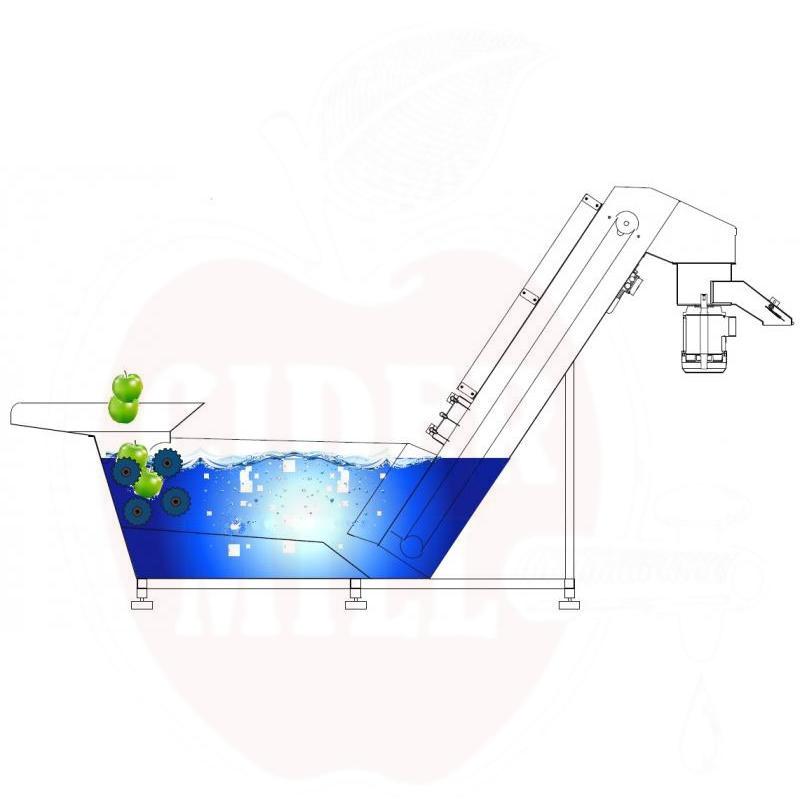

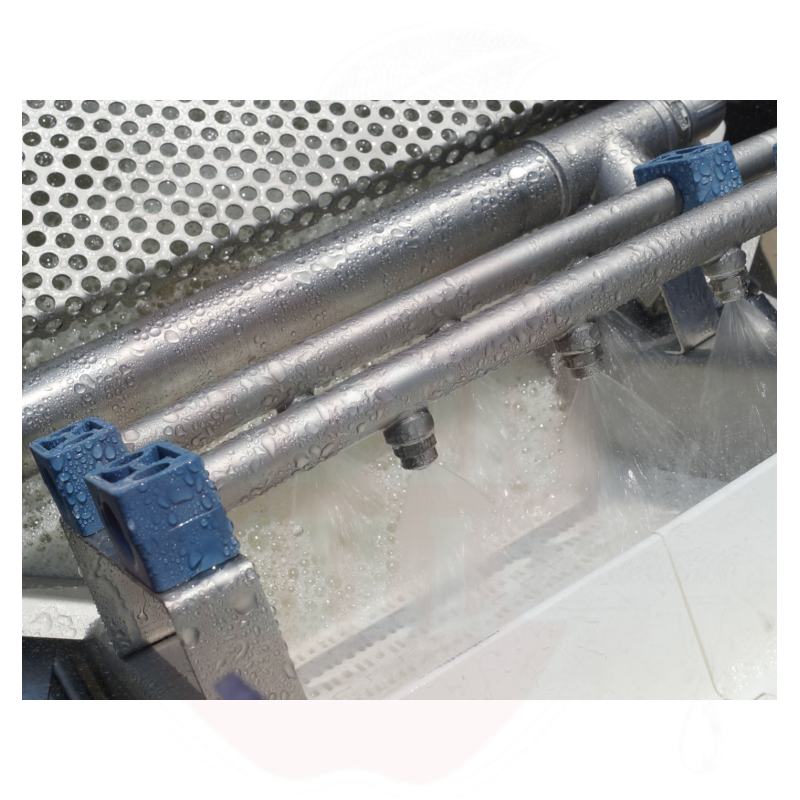

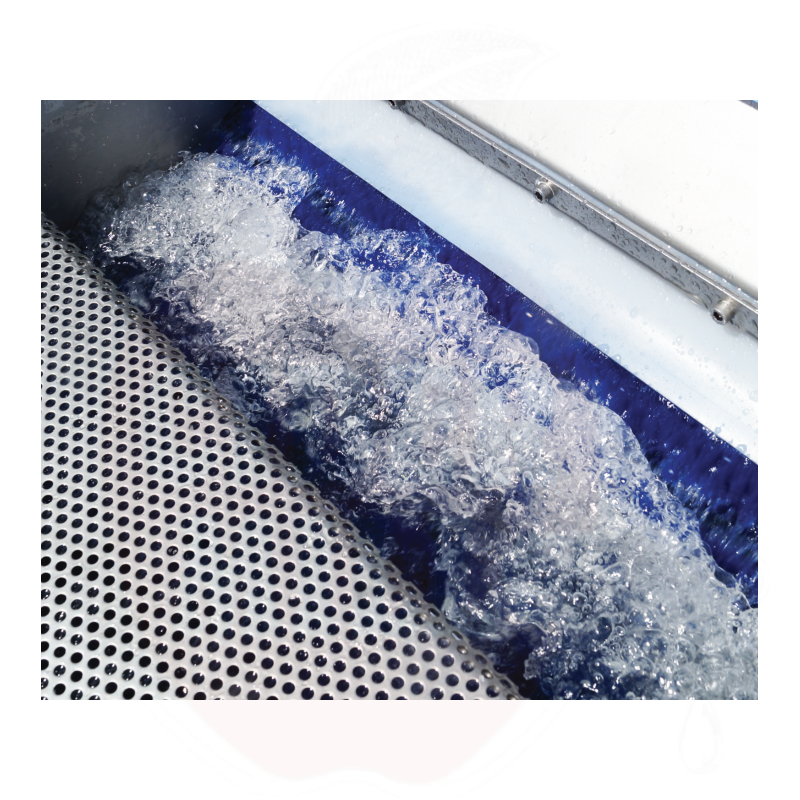

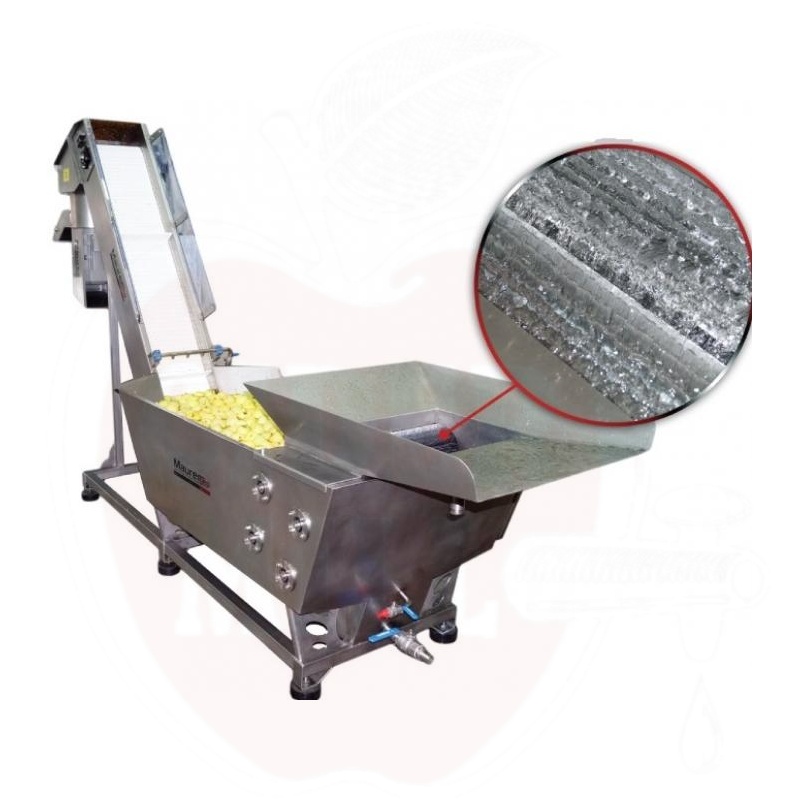

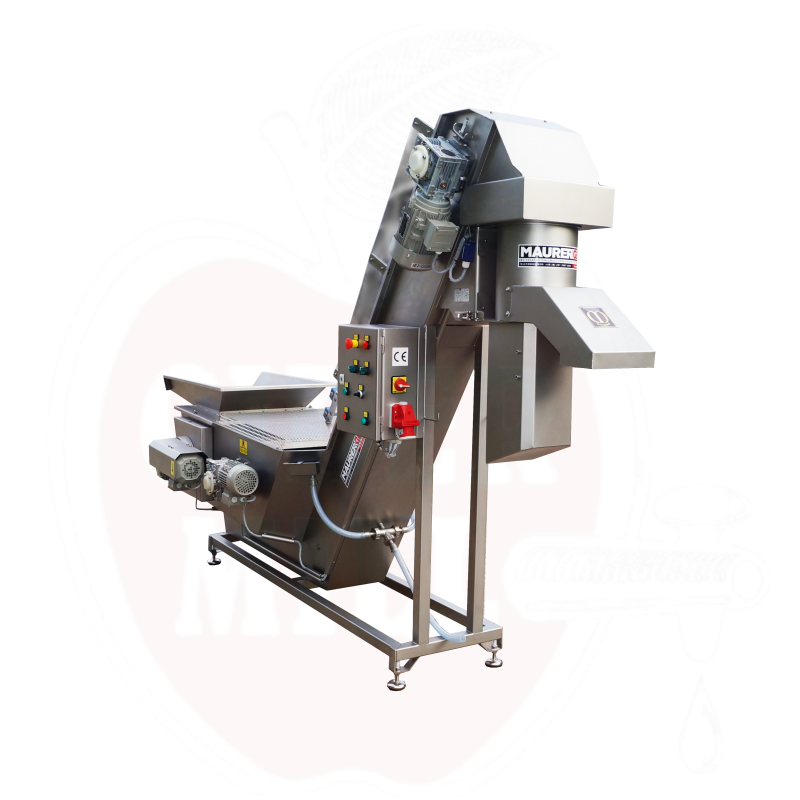

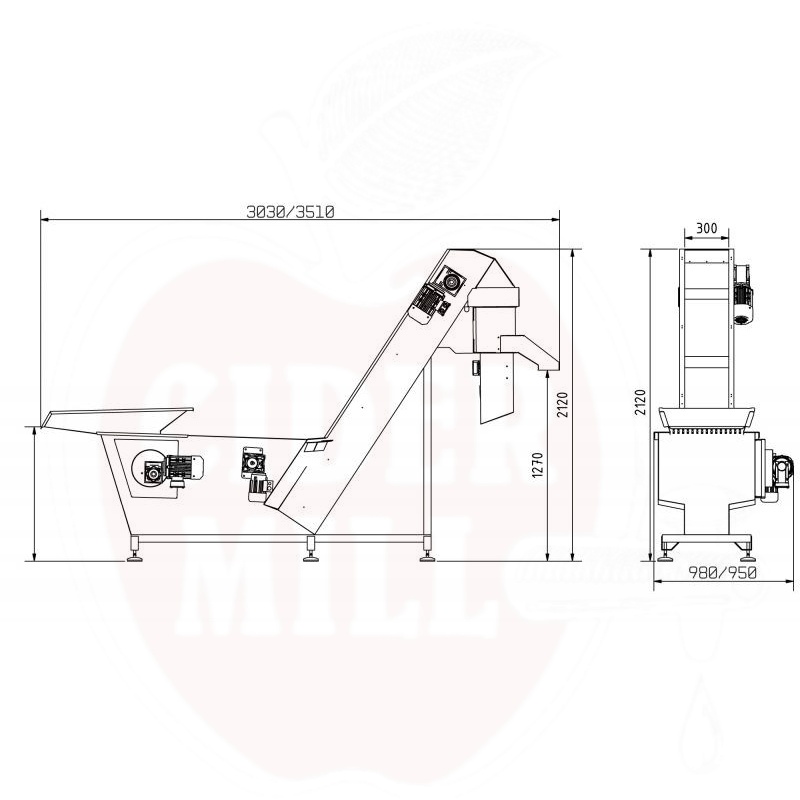

Fruit Washing and Crushing Device. The fruits get via the input hopper to the soaking stage. From there the elevator towards the fruit under the secondary clearwater sprays. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both directions. Mounted on 2ea. swivel, 2ea. lockable wheels or on adjustable Anti-vibration feet. Requires minimal maintenance. Specifications: Performance: 1000-2000 kg/h. Electric demands: 3 kW, 400 V, 16 A, triphase. Material: WNr. 1.4301, AISI 304 stainless steel. Dimensions: 710x3200x2120 mm. Output height: 1270 mm. Weight: 205 kg. Tub water capacity: 280 L/shift. Washing water supply: (20-100 L/h depending on the setting). Water connection: 3/4" quick connector. IP65 certified electronics. Grinder with a massive crushing hammer (also suitable for beetroot and quince). Noise emission: 60-70 dB. Available options: Changeable diameter sieve: for changing the texture of the mash. Stop 'n' Go system: membrane sensor, which synchronizes the fruit washer/grinder and the belt press to work together. Adaptive freshwater spray - fresh water spray nozzles are active only when the elevator is going. Air-blow module - built-in air nozzles in the tub area powered by a turbo-fan for the intense washing or sinking fruits. Air-knife module - the air-knife removes the water droplets on the surface of the fruits, thus reducing the amount of water reaching the end product. Circulating water pump with raw filter. The principle of the device is to clean and crush fruits before juice pressing, ensuring a cleaner and higher quality end product. The device is designed for professional use in the food industry and juice production.

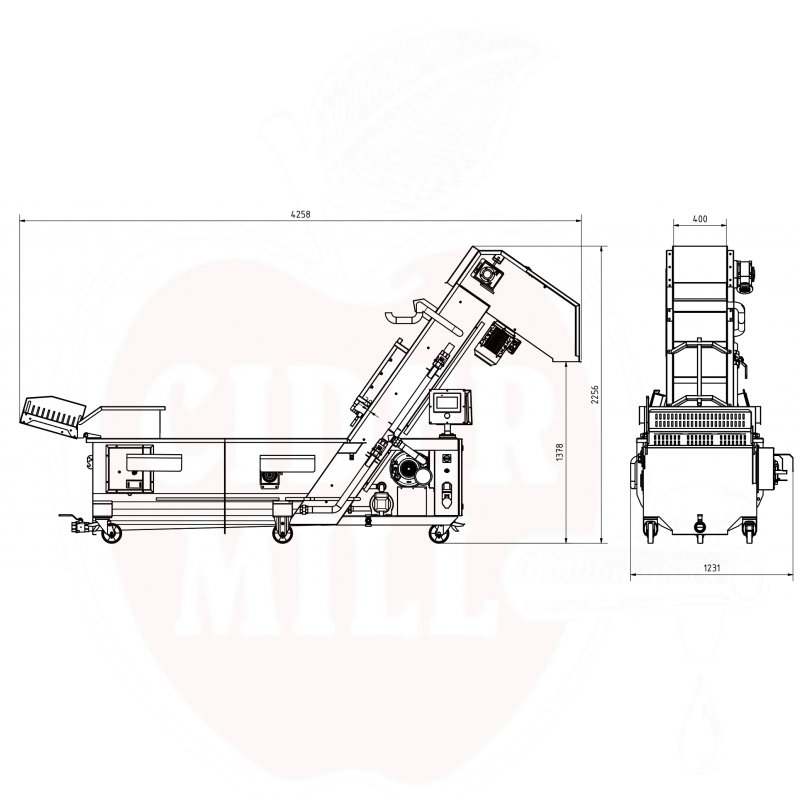

Fruit Washing and Crushing Device. The fruits go to the input hopper, then after soaking move via elevator towards the secondary clear water spray system. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both ways, with 2 rotating, 2 fixed wheels or vibration-free feet. Requires minimal maintenance. Technical details: Performance: 1500-2000 kg/h. Electric demands: 4 kW, 400 V, 16 A. Material: Wnr. 1.4301, AISI 304 stainless steel. Weight: 275 kg. Tub water capacity: 280 L. Washing water supply: 100-200 L/h (depending on the setting). Water connection: ¾" quick connector. IP65 certified electronics. Grinder with a massive crushing hammer (available for beetroot and quince). The grinder can be by-passed and turned, this way the machine is capable of processing stone-fruits. Noise emission: 60-70 dB. 4 pcs of strong, counter-rotating brushes for intense cleaning. Requires minimal maintenance. Adjustable belt speed. Options: Changeable diameter sieve: for changing the texture of the mash. Stop 'n' Go system: membrane sensor that allows the fruit washer/grinder and the belt press to work together. Dosing module: sliding door with end-switch that allows safe dosing from the grinder to the pack press. The principle of the device is to clean and crush fruits before juice pressing, ensuring a cleaner and higher quality end product. The device is designed for professional use in the food industry and juice production.

Stainless fruit and vegetable washing and crushing device with auger lifting device. Immediately after cleaning, the product is transported to the crusher by means of an auger. Pre-cleaning of products using water pressure valves and pre-cleaning brushes. Material: stainless (1.4301); Crusher productivity: 2000kg/h. Manufacturer: Maurer Additional price: belt baler start/stop automation, bale baler dispenser.

After rinsing the fruits in the container, the raw materials are washed with clean water using sprayers and forwarded to the crusher. The device enables raw material rinsing/hand washing, lifting transport and crushing. Features: device moving on wheels, easy to clean, massive food-grade plastic modular dingha, adjustable speed stepwise in both directions, 2 pcs rotating, 2 pcs fixed wheels. Additional equipment: Sieves with removable diameter; dosing module: sliding gate with buffer hopper and limit switch, which enables safe grinding of the baler. Specifications: Performance up to: 1500 kg / h, power consumption: 3 kW, 400 V, 16 A, three-phase; Material: WNr. 1.4301, AISI 304 stainless steel; Dimensions: 710x3200x2120 mm; Output height: 1280mm; Weight: 200 kg; Bath water volume: 120 L / change; Washing water supply: (depending on the setting 20-100L / h); Water connection: 3/4 "quick connection; IP65 certified electronics; crusher with massive hammer crusher (available for beet and quince). Noise emission 60-70 dB.

Fruit Washing and Crushing Device. The fruits get via the input hopper to the soaking stage. From there the elevator towards the fruit under the secondary clearwater sprays. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both directions. Mounted on 2ea. swivel, 2ea. lockable wheels or on adjustable Anti-vibration feet. Requires minimal maintenance. Specifications: Performance: 1000-2000 kg/h. Electric demands: 3 kW, 400 V, 16 A, triphase. Material: WNr. 1.4301, AISI 304 stainless steel. Dimensions: 710x3200x2120 mm. Output height: 1270 mm. Weight: 205 kg. Tub water capacity: 280 L/shift. Washing water supply: (20-100 L/h depending on the setting). Water connection: 3/4" quick connector. IP65 certified electronics. Grinder with a massive crushing hammer (also suitable for beetroot and quince). Noise emission: 60-70 dB. Available options: Changeable diameter sieve: for changing the texture of the mash. Stop 'n' Go system: membrane sensor, which synchronizes the fruit washer/grinder and the belt press to work together. Adaptive freshwater spray - fresh water spray nozzles are active only when the elevator is going. Air-blow module - built-in air nozzles in the tub area powered by a turbo-fan for the intense washing or sinking fruits. Air-knife module - the air-knife removes the water droplets on the surface of the fruits, thus reducing the amount of water reaching the end product. Circulating water pump with raw filter. The principle of the device is to clean and crush fruits before juice pressing, ensuring a cleaner and higher quality end product. The device is designed for professional use in the food industry and juice production.

Crusher sieve with 8mm openings.

Additional equipment of the crusher M100 - a stainless screen with round holes..

Metal grape crusher and stem remover protected by food coloring. Technical data: painted funnel: 900x500 mm / Working element: Nylon / 220mm / Material: painted metal/stainless sieve / Motor: 220V / 1hp / Productivity per hour: 1500kg / Weight: 54kg. Made in Italy. PS Since the product is painted, external paint damage/rubbing may occur during transport..

A volume sensor suitable for building a stop-and-start system for determining the level of viscous raw materials..
