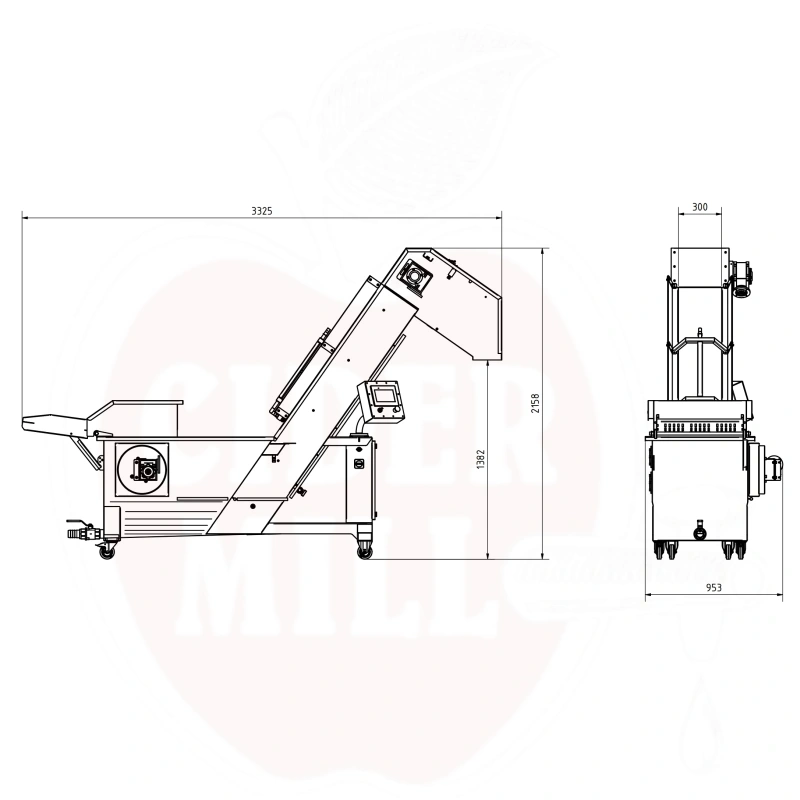

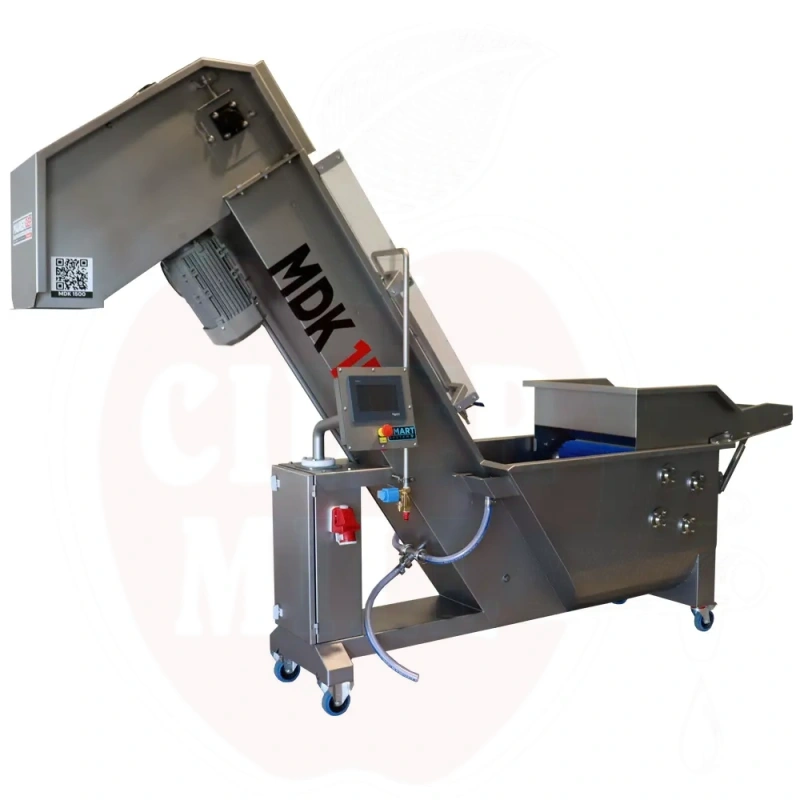

MDK 1500 washer belt with brusher and grinder

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating..Technical details:- Performance: 700 kg/h- Electric demands: 1.5 kW, 400 V, 16 A- Material: Wnr. 1.4301, AISI 304 stainless steel- Weight: 890 kg Dimensions: Length:  2200 mm, Width:    1280 mm, Height:   1180 mm- IP65 certified electronics- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 360 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Food industrial, massive polyester belt, Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- Easy to clean- It requires minimal maintenanceWith adjustable vibration-free machine feet.

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating.Technical details:- Performance: 1400 kg/h- Electric demands: 1 kW, 400 V, 6 A, triphase- Material: WNr. 1.4301, AISI 304 stainless steelDimensions: Length: 2500 mm, Width:   1330 mm, Height:  1230 mm- Input height: 1250 mm- Output height: 370 mm- Weight: 760 kg- IP65 certified electronics- Food industrial, massive polyester belt- Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 500 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Easy to clean- It requires minimal maintenance- With adjustable vibration-free machine feetMKSP 1400 Belt size :Length:  8,00 mWidth:   0,65 m

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating.Technical details: - Performance: 400 kg/h, - Electric demands: 1,5 kW, 230 V, 16 A, - Material: WNr. 1.4301, AISI 304 stainless steelDimensions: Length: 1425 mm, Width:   1310 mm, Height:  1197 mm, - Weight: 620 kg, - IP65 certified electronics, - Food industrial, massive polyester belt, - Belt: 2mm thick, density: 6×16 , filament/cm^2, ½ rate (suitable for large fiber-free juice), - High yield: 75% – depends on the freshness and quality of the fruits, - High-pressure washer demand: 360 L/h, - Compressed air demand: 50 L/h 6 bar, - Built-in inverter: steplessly adjustable belt speed, - Food industrial, massive polyester belt.

Our belt presses can be disassembled without tools in minutes! Fully automatic operation with enclosed working area minimizes oxidation. Two rotating wash heads at the machine bottom ensure optimal cleaning during operation. Distance between press cylinder and juice collection tray reduces foaming. Very easy to clean. 4 vibration-free legs. Requires minimal maintenance. High-pressure washer and air compressor are essential for operation.

Technical details:
- Capacity: 1100 kg/h
- Power requirement: 1.5 kW, 400 V, 16 A
- Material: Wnr. 1.4301, AISI 304 stainless steel
- Weight: 950 kg
- Dimensions: Length: 2170 mm, Width: 1330 mm, Height: 1200 mm
- IP65 certified electronics
- High yield: 75% – depends on fruit freshness and quality
- High-pressure washer requirement: 360 L/h
- Compressed air requirement: 50 L/h 6 bar
- Built-in inverter: steplessly adjustable belt speed
- Food-grade massive polyester belt, belt: 2 mm thick, density: 6 × 16 filaments/cm^2, ½ speed (suitable for high pulp-free juice)
- Easy to clean
- Requires minimal maintenance

Keywords: juice press, belt press, fruit juice equipment, industrial juice press, stainless steel juice press, automatic juice press

Puuviljad lähevad sisendpunkri kaudu leotamisfaasi. Sealt lift poole puu all teisese selgevee pihustid. Lihtne puhastada, massiivse polüpropüleen/atsetaali moodulliftiga, astmeliselt reguleeritav kiirus mõlemas suunas. Paigaldatud 2ea-le. pöörlev, 2ea. lukustatavad rattad. Vibratsioonivastased jalad. Nõuab minimaalset hooldust.Tehnilised andmed:- Jõudlus: 3000 kg/h- Elektrivajadus: 4,8 kW, 400 V, 16 A- Materjal: WNr. 1.4301, AISI 304 roostevaba terasMõõdud:Pikkus: 4258 mmLaius: 1231 mmKõrgus: 2256 mm- Väljundkõrgus: 1370 mm- Kaal: 420 kg-Vanni veemaht: 800 L- Pesuveevarustus: (100-200L/h olenevalt seadistusest) - Veeühendus: 1/2“ kiirühendus- IP65 sertifikaadiga elektroonika- Massiivse purustusvasaraga veski (saadaval peedi ja küdoonia jaoks)- Veskist saab kõrvale pöörata, nii et sel juhul kasutatakse masinat luuviljaliste töötlemiseks.- Müra emissioon: 60-70 dB- 4 tk tugevat vastassuunas pöörlevat harja intensiivseks puhastamiseks- Pöörlev laba, mis lükkab puuvilju lifti pooleSaadaolevad valikud:- Muudetava läbimõõduga sõel: meski tekstuuri muutmiseks- Stop ‘n’ Go süsteem: membraaniandur, mis võimaldab puuviljapesul/veskil ja rihmpressil koos töötada- Doseerimismoodul: lõpplülitiga lükanduks, mis võimaldab doseerida veskist ohutult pakipressi.

Fruit Washing and Crushing Device. The fruits get via the input hopper to the soaking stage. From there the elevator towards the fruit under the secondary clearwater sprays. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both directions. Mounted on 2ea. swivel, 2ea. lockable wheels or on adjustable Anti-vibration feet. Requires minimal maintenance. Specifications: Performance: 1000-2000 kg/h. Electric demands: 3 kW, 400 V, 16 A, triphase. Material: WNr. 1.4301, AISI 304 stainless steel. Dimensions: 710x3200x2120 mm. Output height: 1270 mm. Weight: 205 kg. Tub water capacity: 280 L/shift. Washing water supply: (20-100 L/h depending on the setting). Water connection: 3/4" quick connector. IP65 certified electronics. Grinder with a massive crushing hammer (also suitable for beetroot and quince). Noise emission: 60-70 dB. Available options: Changeable diameter sieve: for changing the texture of the mash. Stop 'n' Go system: membrane sensor, which synchronizes the fruit washer/grinder and the belt press to work together. Adaptive freshwater spray - fresh water spray nozzles are active only when the elevator is going. Air-blow module - built-in air nozzles in the tub area powered by a turbo-fan for the intense washing or sinking fruits. Air-knife module - the air-knife removes the water droplets on the surface of the fruits, thus reducing the amount of water reaching the end product. Circulating water pump with raw filter. The principle of the device is to clean and crush fruits before juice pressing, ensuring a cleaner and higher quality end product. The device is designed for professional use in the food industry and juice production.

Stainless fruit and vegetable washing and crushing device with auger lifting device. Immediately after cleaning, the product is transported to the crusher by means of an auger. Pre-cleaning of products using water pressure valves and pre-cleaning brushes. Material: stainless (1.4301); Crusher productivity: 2000kg/h. Manufacturer: Maurer Additional price: belt baler start/stop automation, bale baler dispenser.

After rinsing the fruits in the container, the raw materials are washed with clean water using sprayers and forwarded to the crusher. The device enables raw material rinsing/hand washing, lifting transport and crushing. Features: device moving on wheels, easy to clean, massive food-grade plastic modular dingha, adjustable speed stepwise in both directions, 2 pcs rotating, 2 pcs fixed wheels. Additional equipment: Sieves with removable diameter; dosing module: sliding gate with buffer hopper and limit switch, which enables safe grinding of the baler. Specifications: Performance up to: 1500 kg / h, power consumption: 3 kW, 400 V, 16 A, three-phase; Material: WNr. 1.4301, AISI 304 stainless steel; Dimensions: 710x3200x2120 mm; Output height: 1280mm; Weight: 200 kg; Bath water volume: 120 L / change; Washing water supply: (depending on the setting 20-100L / h); Water connection: 3/4 "quick connection; IP65 certified electronics; crusher with massive hammer crusher (available for beet and quince). Noise emission 60-70 dB.

Puuviljad lähevad sisendpunkri kaudu leotamisfaasi. Sealt lift poole puu all teisese selgevee pihustid. Lihtne puhastada, massiivse polüpropüleen/atsetaali moodulliftiga, astmeliselt reguleeritav kiirus mõlemas suunas. Paigaldatud 2ea-le. pöörlev, 2ea. lukustatavad rattad. Vibratsioonivastased jalad. Nõuab minimaalset hooldust.Tehnilised andmed:- Jõudlus: 3000 kg/h- Elektrivajadus: 4,8 kW, 400 V, 16 A- Materjal: WNr. 1.4301, AISI 304 roostevaba terasMõõdud:Pikkus: 4258 mmLaius: 1231 mmKõrgus: 2256 mm- Väljundkõrgus: 1370 mm- Kaal: 420 kg-Vanni veemaht: 800 L- Pesuveevarustus: (100-200L/h olenevalt seadistusest) - Veeühendus: 1/2“ kiirühendus- IP65 sertifikaadiga elektroonika- Massiivse purustusvasaraga veski (saadaval peedi ja küdoonia jaoks)- Veskist saab kõrvale pöörata, nii et sel juhul kasutatakse masinat luuviljaliste töötlemiseks.- Müra emissioon: 60-70 dB- 4 tk tugevat vastassuunas pöörlevat harja intensiivseks puhastamiseks- Pöörlev laba, mis lükkab puuvilju lifti pooleSaadaolevad valikud:- Muudetava läbimõõduga sõel: meski tekstuuri muutmiseks- Stop ‘n’ Go süsteem: membraaniandur, mis võimaldab puuviljapesul/veskil ja rihmpressil koos töötada- Doseerimismoodul: lõpplülitiga lükanduks, mis võimaldab doseerida veskist ohutult pakipressi.

Crusher screen with 10mm holes.

Crusher sieve with 3mm holes.

Crusher sieve with 15mm openings.

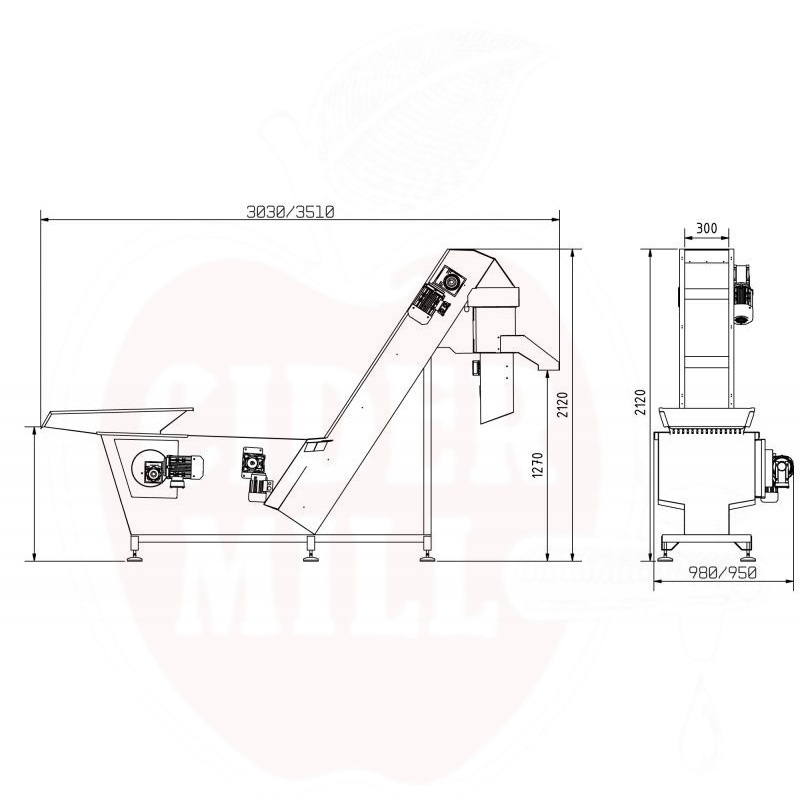

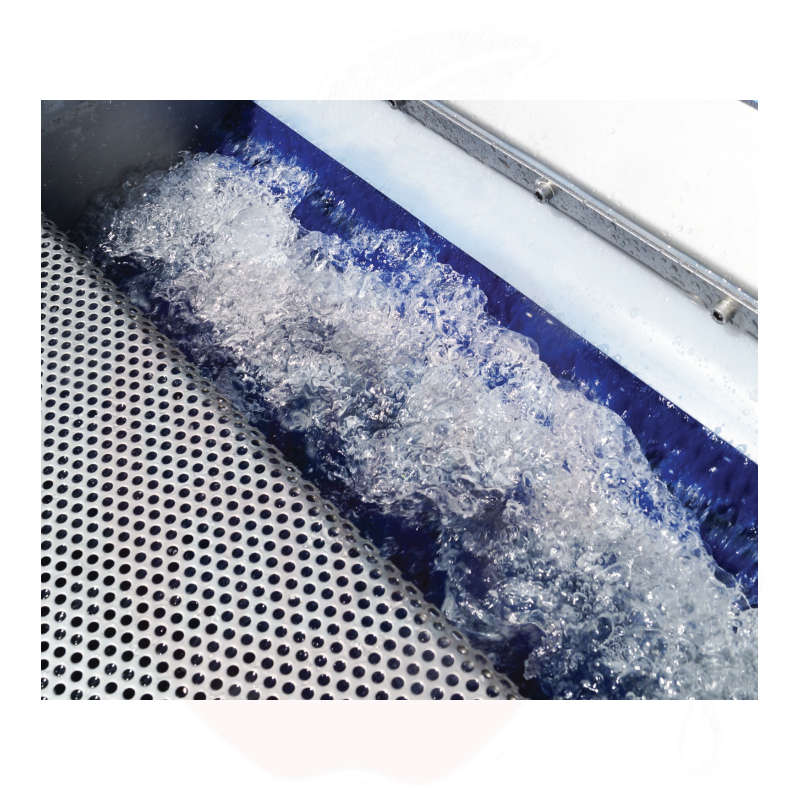

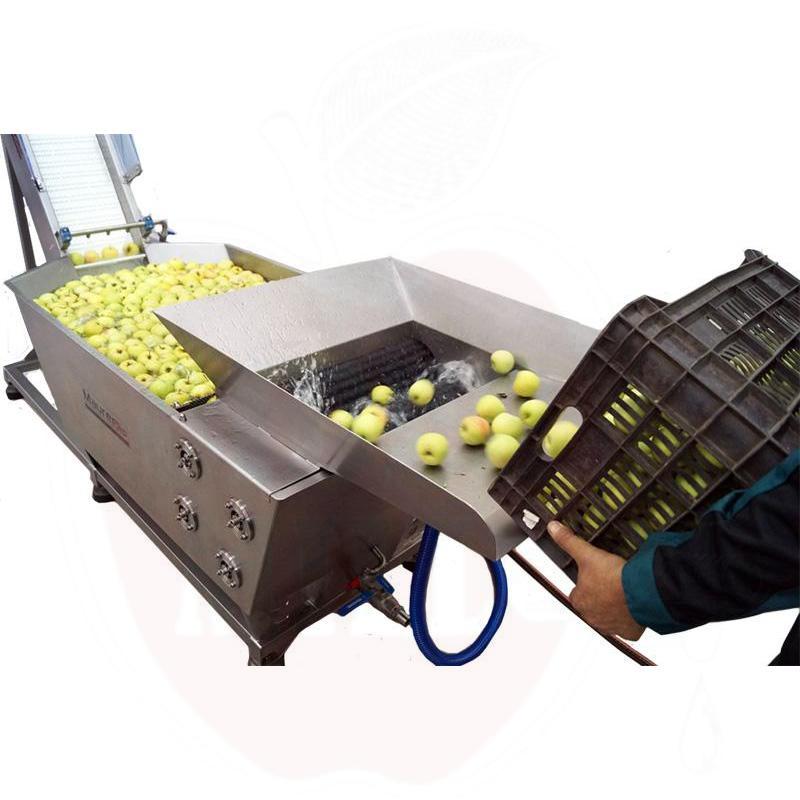

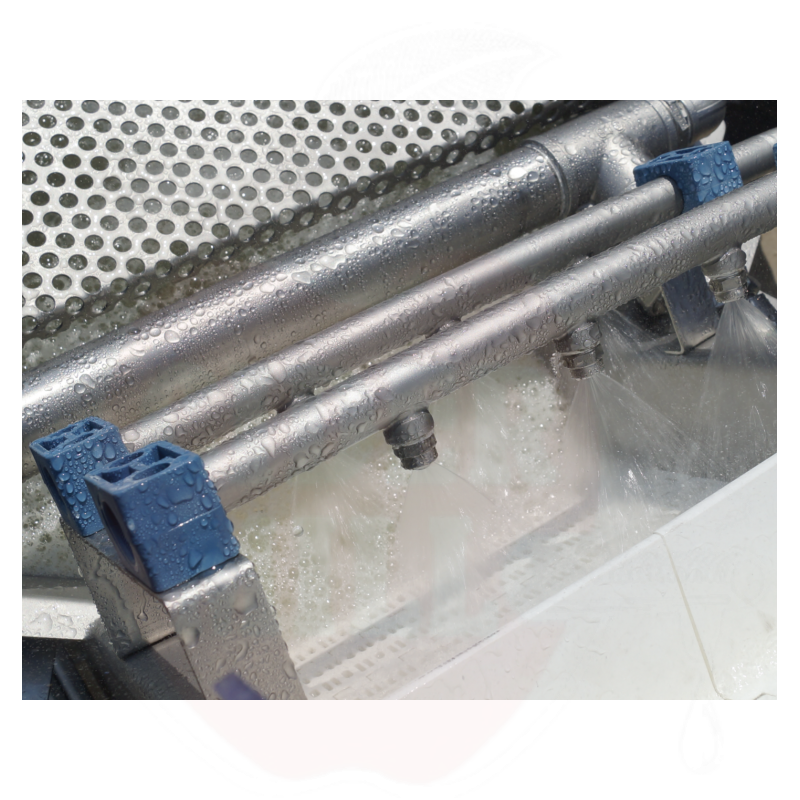

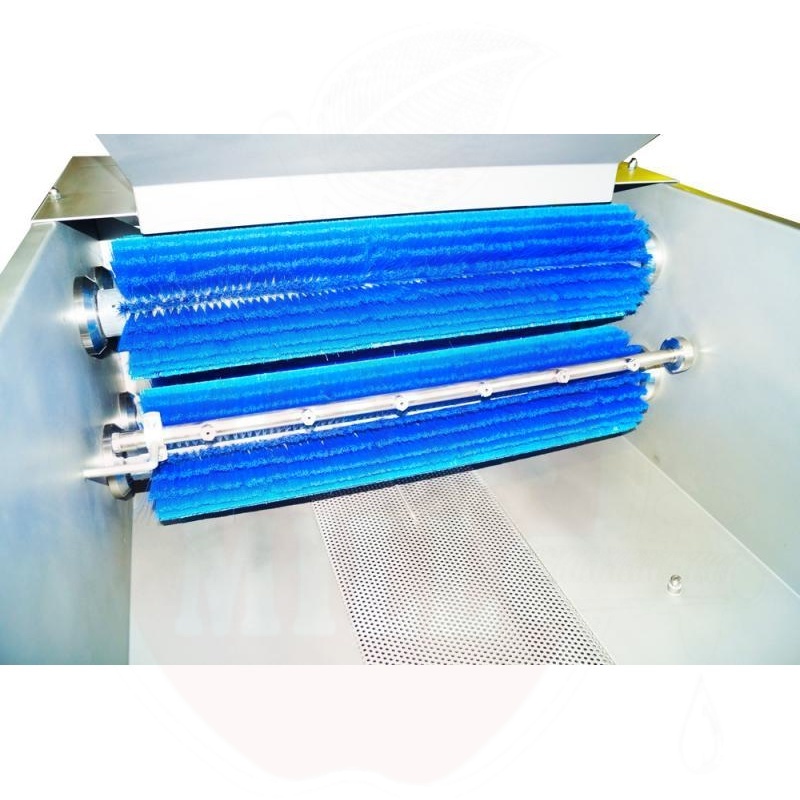

The fruits get via the input hopper through the brushes to the soaking stage. From there the elevator towards the fruit under the secondary clearwater sprays. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both directions. Mounted on 2ea. swivel, 2ea. lockable wheels or on adjustable Anti-vibration feet. Requires minimal maintenance.Specifications:• Performance: 3000 kg/h• Electric demands: 5 kW, 400 V, 16 A, triphase• Material: WNr. 1.4301, AISI 304 stainless steel• Dimensions: 950x3660x2120mm• Output height: 1270 mm• Weight: 360 kg• Tub water capacity: 440 L/shift• Washing water supply: (100-200L/h depending on the setting)• Water connection: 3/4“ quick connector• IP65 certified electronics• Grinder with a massive crushing hammer (available for beetroot and quince)• The grinder can be bypassed by swinging to the side so in this case the machine is used to process stone fruits.• Noise emission: 60-70 dB• 4 pcs of strong, counter-rotating brushes for the intense cleaning• Rotating paddle, that pushes the fruits towards the elevatorAvailable options:– Changeable diameter sieve: for changing the texture of the mash– Stop ‘n’ Go system: membrane sensor, which synchronizes the fruit washer/grinder and the belt press to work together– Adaptive freshwater spray – fresh water spray nozzles are active only when the elevator is going– Air-blow module – built-in air nozzles in the tub area powered by a turbo-fan for the intense washing or sinking fruits – Air-knife module – the air-knife removes the water droplets on the surface of the fruits, thus reducing the amount of water reaching the end product.– Circulating water pump with raw filter
