Juice collection tank SV2 with pump Enos 25, automation, filter

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating..Technical details:- Performance: 700 kg/h- Electric demands: 1.5 kW, 400 V, 16 A- Material: Wnr. 1.4301, AISI 304 stainless steel- Weight: 890 kg Dimensions: Length:  2200 mm, Width:    1280 mm, Height:   1180 mm- IP65 certified electronics- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 360 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Food industrial, massive polyester belt, Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- Easy to clean- It requires minimal maintenanceWith adjustable vibration-free machine feet.

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating.Technical details:- Performance: 1400 kg/h- Electric demands: 1 kW, 400 V, 6 A, triphase- Material: WNr. 1.4301, AISI 304 stainless steelDimensions: Length: 2500 mm, Width:   1330 mm, Height:  1230 mm- Input height: 1250 mm- Output height: 370 mm- Weight: 760 kg- IP65 certified electronics- Food industrial, massive polyester belt- Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 500 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Easy to clean- It requires minimal maintenance- With adjustable vibration-free machine feetMKSP 1400 Belt size :Length:  8,00 mWidth:   0,65 m

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating.Technical details: - Performance: 400 kg/h, - Electric demands: 1,5 kW, 230 V, 16 A, - Material: WNr. 1.4301, AISI 304 stainless steelDimensions: Length: 1425 mm, Width:   1310 mm, Height:  1197 mm, - Weight: 620 kg, - IP65 certified electronics, - Food industrial, massive polyester belt, - Belt: 2mm thick, density: 6×16 , filament/cm^2, ½ rate (suitable for large fiber-free juice), - High yield: 75% – depends on the freshness and quality of the fruits, - High-pressure washer demand: 360 L/h, - Compressed air demand: 50 L/h 6 bar, - Built-in inverter: steplessly adjustable belt speed, - Food industrial, massive polyester belt.

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating.Technical details:- Performance: 1100 kg/h- Electric demands: 1,5 kW, 400 V, 16 A- Material: Wnr. 1.4301, AISI 304 stainless steel- Weight: 950 kg Dimensions: Length:   2170 mm, Width:     1330 mm, Height:    1200 mm- IP65 certified electronics- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 360 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Food industrial, massive polyester belt, Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- Easy to clean- It requires minimal maintenance.

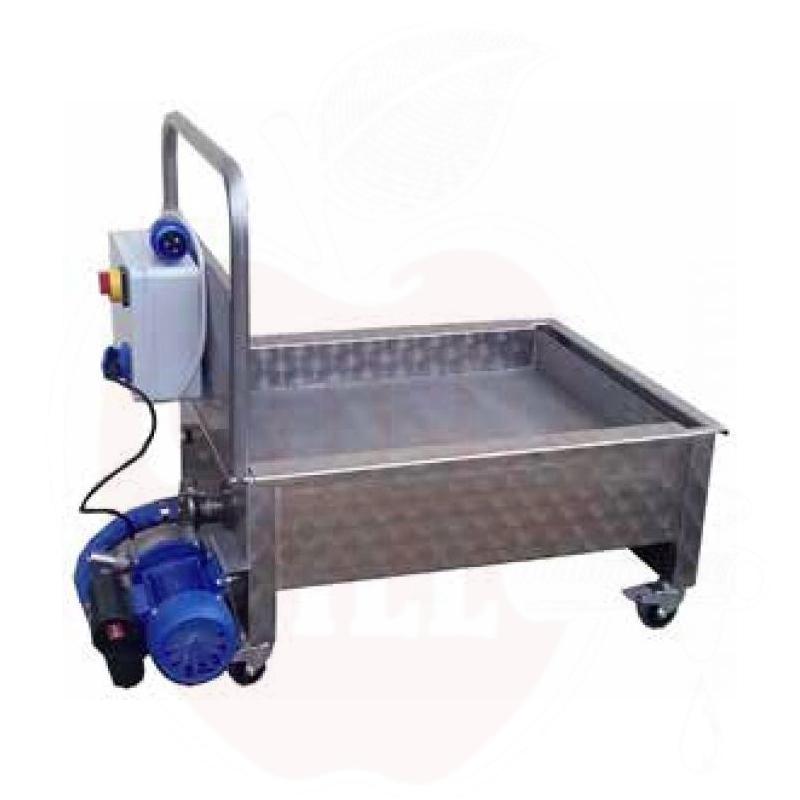

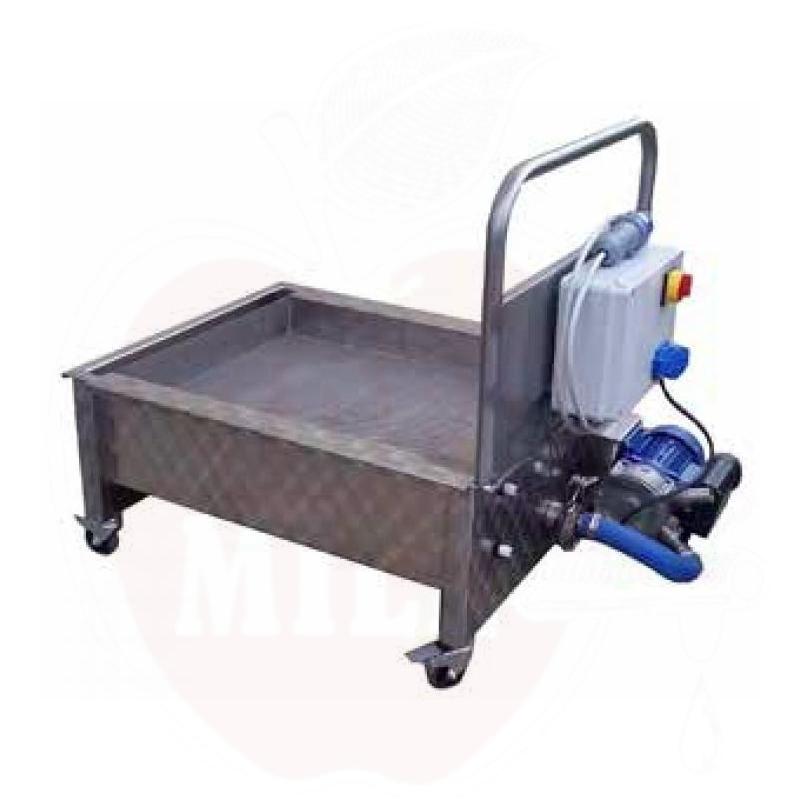

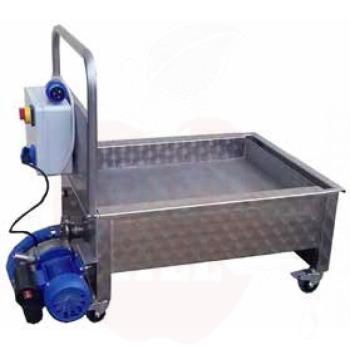

The juice flowing from the belt press passes through a pre-filter and is collected in a 100L container. A collection tank with a stainless pre-filter with a pump, level sensor and control center works automatically by pumping the juice forward into the pipeline. Dimensions 546x1075x350mm, weight 50kg, pump 0.5kw/230V/6A.

Made in Italy. Collecting tank with stainless pre-filter. Material: stainless steel AISI 304. On lockable wheels. Dimensions: 600x700x390mm..

Collecting tub with stainless rotating filter. Thanks to the rotation of the filter, the purity of the final product is ensured simply with one compact device. The liquid fed into the rotating cone filter is cleaned thanks to the 0.3mm density stainless filter fabric, which rotates and self-cleans... the final product falls through the filter bath, from where it is automatically pumped forward. Material: stainless steel AISI 304, electrical connection 220V, on lockable wheels, bath filling sensor, pump, productivity up to 1000l/h, Dimensions: 850x700x700mm, height of liquid filter input 410mm, weight approx. 70 kg. Input height 410mm. Manufacturer: Enoitalia (Italy)..

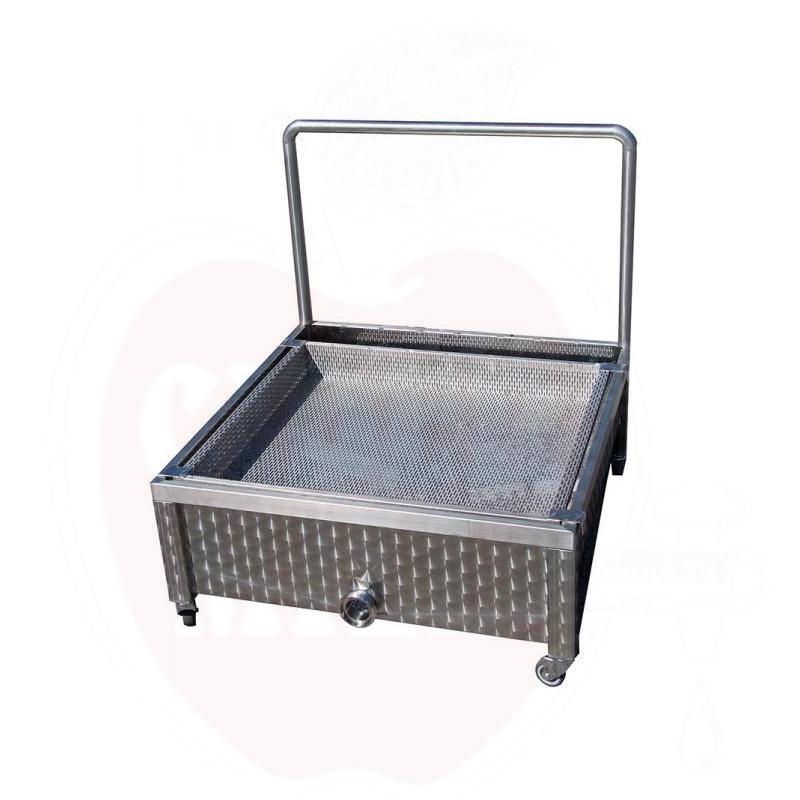

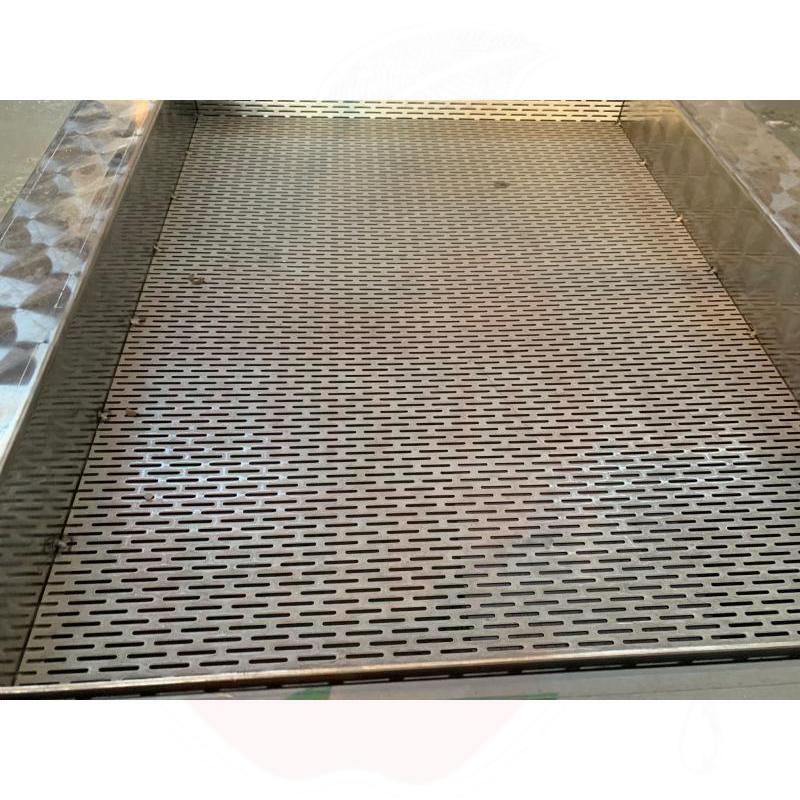

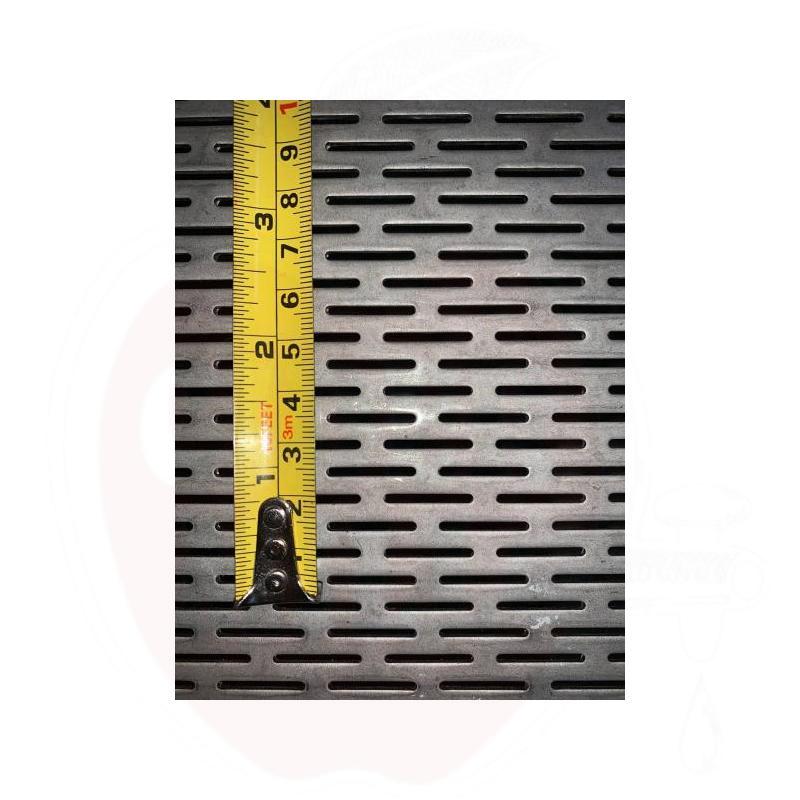

With the AISI 304 stainless steel maxi bath, you can easily separate wine from seeds or larger sediment during decanting. The device consists of: Removable filter grid with 1.5 mm opening, 1-inch AISI 304 stainless steel ball valve for discharge, 4 wheels, 2 of which are rotating with a brake, and a stainless steel handle for easy transportation.Features: Material: AISI 304 stainless steel, Removable filter grid, 1" M DN25 AISI 304 stainless steel ball valve, 4 wheels, 2 of which are swivel with brake, Tank volume: 113 L, Stainless steel handle for transport, Overall dimensions: mm 645x1025x895 (h) , Weight: 23 kg

With the AISI 304 stainless steel maxi bath, you can easily separate wine from seeds or larger sediment during decanting. The device consists of: Removable filter grid with 1.5 mm opening, 1-inch AISI 304 stainless steel ball valve for discharge, 4 wheels, 2 of which are rotating with a brake, and a stainless steel handle for easy transportation.Features: Material: AISI 304 stainless steel, Removable filter grid, 1" M DN25 AISI 304 stainless steel ball valve, 4 wheels, 2 of which are swivel with brake, Tank volume: 50 L, Stainless steel handle for transport, Overall dimensions: mm 503x775x895(h), Weight: 13,5 kg

The juice flowing from the belt press passes through a pre-filter and is collected in a 100L container. A collection tank with a stainless pre-filter with a pump, level sensor and control center works automatically by pumping the juice forward into the pipeline. Dimensions 546x1075x350mm, weight 50kg, pump 0.5kw/230V/6A.

Made in Italy. Collecting tank with stainless pre-filter. Material: stainless steel AISI 304. On lockable wheels. Dimensions: 600x700x390mm..

Collecting tub with stainless rotating filter. Thanks to the rotation of the filter, the purity of the final product is ensured simply with one compact device. The liquid fed into the rotating cone filter is cleaned thanks to the 0.3mm density stainless filter fabric, which rotates and self-cleans... the final product falls through the filter bath, from where it is automatically pumped forward. Material: stainless steel AISI 304, electrical connection 220V, on lockable wheels, bath filling sensor, pump, productivity up to 1000l/h, Dimensions: 850x700x700mm, height of liquid filter input 410mm, weight approx. 70 kg. Input height 410mm. Manufacturer: Enoitalia (Italy)..

With the AISI 304 stainless steel maxi bath, you can easily separate wine from seeds or larger sediment during decanting. The device consists of: Removable filter grid with 1.5 mm opening, 1-inch AISI 304 stainless steel ball valve for discharge, 4 wheels, 2 of which are rotating with a brake, and a stainless steel handle for easy transportation.Features: Material: AISI 304 stainless steel, Removable filter grid, 1" M DN25 AISI 304 stainless steel ball valve, 4 wheels, 2 of which are swivel with brake, Tank volume: 113 L, Stainless steel handle for transport, Overall dimensions: mm 645x1025x895 (h) , Weight: 23 kg

With the AISI 304 stainless steel maxi bath, you can easily separate wine from seeds or larger sediment during decanting. The device consists of: Removable filter grid with 1.5 mm opening, 1-inch AISI 304 stainless steel ball valve for discharge, 4 wheels, 2 of which are rotating with a brake, and a stainless steel handle for easy transportation.Features: Material: AISI 304 stainless steel, Removable filter grid, 1" M DN25 AISI 304 stainless steel ball valve, 4 wheels, 2 of which are swivel with brake, Tank volume: 50 L, Stainless steel handle for transport, Overall dimensions: mm 503x775x895(h), Weight: 13,5 kg
