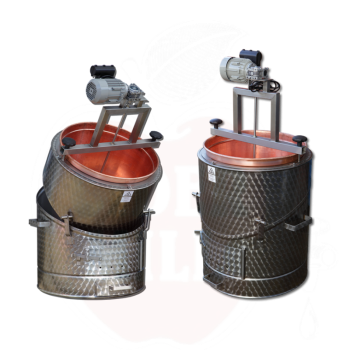

Jam boiler 60l mixer, copper insert

In the standard version, the tilting cups are made of 99.9% edible copper (preferably when making plum jam, because the plum jam sticks to the copper minimally), with a thickness of 2 mm. The boiler can be ordered with or without an electric mixer. The boiler is made of double-walled stainless steel and is mainly intended for the production of jam. Mixing and heating are electric, inside the boiler there is a mixer with bottom blades for moving raw materials. The maximum overpressure in the room with partitions is controlled by overpressure valves. The maximum heating temperature is controlled by an emergency thermostat, the heating is regulated digitally in steps of 1.5kW. Boiler capacity 100 L (max. raw material capacity 70L), dimensions 500 x 500 mm (dia. x height), overpressure in the space between the walls is controlled by a pressure relief valve, electric heating 9kW, stainless steel material 1.4301, rotation speed 16rpm, thermal insulation, weight 85kg, 400V, 32A, base dimensions 700x800mm..

Jam pans are made of 99.9% food-grade copper (preferably when making plum jam, because the jam adheres to the copper minimally), with a thickness of 1.2 mm. Technical information: double shell, steel outer wall 1.5mm, copper boiler 1.2mm, heating: solid heating or gas burner (not included)..

Stainless steel container/boiler with mixer and temperature indicator. Complete with: stainless steel outlet valve, analog thermometer with stainless steel guard, heavy metal reinforced lid, mixer with mixing paddles. Material: 18/10 stainless steel (AISI 304); Lid: stainless steel, 220V mixer with stainless steel blades, stainless steel handles, 1" stainless steel outlet valve. Dimensions: inner diameter: 630 mm, height: 680 mm, motor overall dimensions: 76 x 83 cm (h); base thickness: 1.5 mm; wall thickness: 1 mm; without insulation. Mixer 14 rpm..

Stainless multipurpose kettle size 115l. The special tank ensures uniform heat distribution over the entire surface, which prevents food from sticking or burning. complete with: lid, container, gas burner and all completely made of stainless steel AISI 304. Ideal for preparing nutrients such as meat, pasta, cheeses, vegetables, preservatives and animal and vegetable food. data: diameter 65 cm; capacity 115L, dimensions 79x73x72cm, total weight 28.3kg, diameter 65 cm..

The inner part of the boiler is made of stainless steel AISI 316 (thickness 25-40/10 and the outer shell AISI 304) on a tilting frame - specially designed for processing acidic nutrients. Adjustable legs with electric tilt and satin finish. Automatic two-pronged mixing device, fully removable blades (easy cleaning), work in both directions, in a continuous working process or according to regulation (12-40rpm) and set time (with pauses) - controlled from the control panel. The device is equipped with an overpressure valve (0.5bar), which optimizes the overpressure in the water jacket that occurs during heating. Automatic filling of the water jacket from the water supply. The electronic control panel allows you to control two temperatures: the product and the bottom temperature. Technical data: size 130l useful and total size 145 liters, mixing speed 12-40r/min, dimensions 1250x1355mm, height 950/1950mm, water jacket 0.5bar, electric power 24.6kw/400V. Additional equipment: device on wheels, outlet valve below DN50, cooling connections..

Boiler with indirect heating and bottom-mounted stirrer.Thanks to the indirect heating system, in which the heating medium is glycerine heated by electric heaters, it is characterized by high working culture and economy of use. Throughthis form of heating, direct contact between the heater and the cooked food is avoided, which excludes burning.Ideally suited for mixing and preparing vegetables, meat, soups, pet food, sauces, pomades, jams. The boiler has safety features:• Protection against starting the boiler with the flap open.• Protection when the flap is lifted, the boiler shuts down automatically. • Safety switch. The use of glycerine makes the boiler keep warm longer after heating up, it does not cool down rapidly - this allows more economical operation. Ergonomic design ensures operation of temperature settings, stirrer, lid and valve with one hand. Different types of stirrers available depending on the product to be mixed.Design: • made of AISI 304 stainless steel, cylindrical shape outside and inside, double-walled with glycerine filling without thermal insulation, • 1 1/4” faucet, stirrer, mobile on 3 swivel casters, including 1 with brake, power supply 400 V AC, 50 Hz • Available with a tap with a 2’’ faucet.

Each rectification stage can operate independently and it is up to the operator's discretion how many rectification stages to select during distillation. The columns are characterized by perfect distillation and the high rectification column gives the best taste and purity to the distillate. The three-stage column can be adjusted for different fruits to find the right flavour of the spirit. These columns are recommended for buildings with a minimum building height of 2.9 m. The distillates from the three-stage column are of the highest quality, where you can taste the marzipan flavour in, for example, mirabelle or apricot brandy after the first sip of the spirit. In the case of the plum brandy, you can even smell almond undertones. The most typical is the balanced taste of the spirit with a clear aroma of fruit, especially in the case of plum and pear brandy and apple and quince brandy. This can only be achieved when distilling on columns with a three-stage setting in operation. To increase the richness of the aroma, we recommend installing a catalyst, but this increases the overall height by 200 mm. The catalyst also reduces the presence of ethyl carbamate and hydrogen cyanide in the resulting distillate. This type of distillation column is recommended for the distillation of all fruit mashes including exotic ones such as pineapple, mango, kiwi, banana and many others. Standard equipment: Double-walled boilers with safety assembly, with DN100 outlet valve. Full copper design of distillation boiler, lid, rectification column and dephlegmator with stainless steel tubular cooler. Stainless steel boiler cladding with thermal insulation. Motorized stirring, boiler and rectification column lighting, DN250 filling hatch with DN100 boiler sight glass, automatic distillate and dephlegmator temperature control, rinsing head and piping for pressure cleaning by pump (CIP). Basic parameters: overall height up to 3 100 mm, duration of one distillation cycle 120 - 150 minutes, cooling water consumption 100 - 200 L, maximum grade of fruit spirit 65% - 80%, optional disabling of the rectification stages. 200 L - 60 kW. Ceiling height - 3 100 mm. Door clearance - 1 300 mm. Catalyst increases the overall height by 200 mm.
