Isobaric filler RLV2-iSo

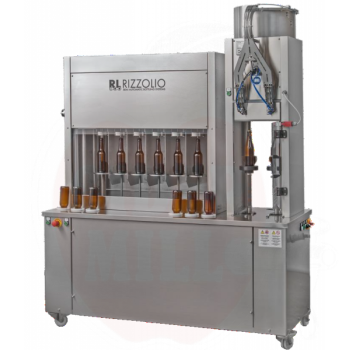

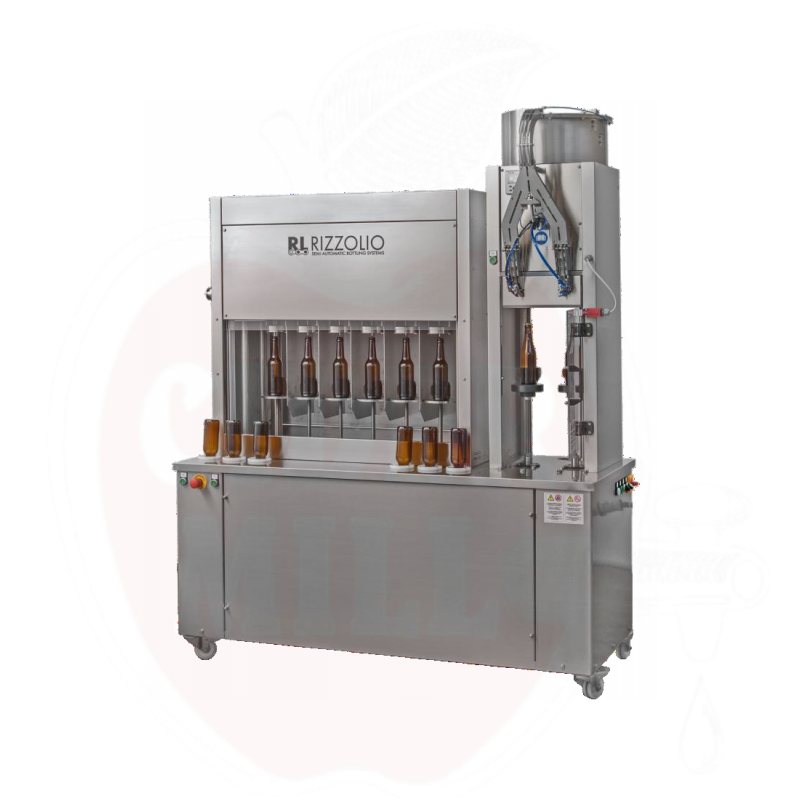

Professional Isobaric Filling Machine with 6 Nozzles High-quality Italian isobaric filling machine specifically designed for carbonated beverage filling. The machine is equipped with 6 foam-reducing nozzles, ensuring an efficient and precise filling process. Technical Specifications: Maximum filling pressure: 5 bar, Power consumption: 0.37 kW (220V), Compressed air consumption: 120 l/min (6 bar), Control voltage: 24V. Dimensions and Capacity: Height: 1.92 m, Width: 0.8 m, Depth: 0.40 m, Maximum bottle height: 350 mm, Maximum bottle diameter: 120 mm. Applications: Ideal solution for filling: Beer, Cider, Sparkling wine, Carbonated water. Available Accessories: Automatic filling system, Pneumatic pump system, Container cleaning system (water and air or air only), Capping machine, 1" connection valve seal kit, Adjustable filling level tubes, Bottle models for valve maintenance, Non-return valve.

Fully automatic isobaric filling line for bottles and cans The compact rotary multiblock filling system enables efficient isobaric filling for both metal cans and glass bottles. The integrated solution includes a modern crown capping device and can sealing mechanism in a single rotating column. Main features of the equipment: Fully automated work process, compact rotary design, unified filling system for bottles and cans, energy-efficient operation mode, small footprint. The intelligently optimized construction of the filling line ensures maximum productivity with minimal energy costs. The equipment is ideally suited for smaller production spaces where efficient use of space is important.

NB! Tegemist on kasutatud tootega! Kvaliteetne Itaalias toodetud jogurti villimis-, korkimis- ja markeerimisseade multiblokktehnoloogiaga. Seade on poolautomaatne ja töötab nurkelise pöörleva tööpinna põhimõttel. Kõik tootega kokkupuutuvad osad on valmistatud roostevabast terasest AISI 316. Villimisotsiku tihendid on vastupidavad, vastavad toiduainetööstuse nõuetele ning taluvad kõrgeid temperatuure. Seadme puhastamine on lihtne tänu kergesti avatavate klambritega konstruktsioonile. Villimine ehk pudeli täitmine toimub pudeli põhjast, mis väldib vahu teket. Seadme tööprotsess algab pudelite manuaalse pealeandmisega, millele järgneb automaatne pneumaatiline doseerimine ühe dosaatoriga, mis on astmeliselt reguleeritav vahemikus 100-1000 ml. Villimiskiirus on reguleeritav ning jogurtipaagi maht on 30 L. Seade on varustatud automaatse korgi etteandja ja pealepanijaga koos pingutajaga ning pneumaatilise printeriga kuupäeva ja partii märgistamiseks korgi peale. Seadme mõõtmed on 1100 x 700 x 2000 mm (kõrgus), toitepinge 380V, 50/60Hz 3P+N+T, võimsus maksimaalselt 1 kW. Suruõhu tarbimine on 15 NL/tsükkel (6 bar) ja standardne töörõhk 6 bar. Seade kaalub 150 kg ning suudab töötada tootmisvõimsusega 4 tsüklit minutis. Seadmega saab kasutada plastpudeleid mahuga kuni 1 L, mis võivad olla varustatud kas keermega või kroonkorgiga. Seade on mõeldud jogurtitootjatele, kes vajavad poolautomatiseeritud villimislahendust keskmise tootmismahu juures, võimaldades täpset doseerimist, korgi pealepanekut ja märgistamist ühes kompaktses süsteemis.

Isobaric Filling Device for Two Bottles Professional filling device made of AISI 304 stainless steel and food-grade PP plastic. Perfect solution for bottling sparkling wines, soft drinks, and beer into glass or PET bottles. Technical Specifications Filling capacity: 100-250 bottles per hour (0.35-0.65l) Maximum working pressure: 5.5 bar Stainless steel filling valves Triple valves for CO2 input, filling, and shutdown Construction and Design Removable stainless steel drip tray with grid HDPE plastic adjustable height setting Food-grade pipe fittings and hoses Adaptable for different bottle sizes Operation Simple two-stage filling process: Turning valve to one side: filling container with CO2 Turning valve to other side: filling with liquid Valve center position: closing when desired level is reached Factors affecting productivity: beverage quality and pressure, bottle size, air temperature, beverage temperature, CO2 pressure, and operator experience.

Semi-Automatic Carbonated Beverage Filling System Professional Italian-made semi-automatic filling system, ideal for small producers and beverage industries. The device is designed for filling carbonated beverages (beer, cider, sparkling wine, carbonated water). Technical Specifications: 4 filling nozzles with foam reduction technology, Maximum filling pressure: 5 bar, Power consumption: 0.37kW/220V, Compressed air requirement: 120l/min/6bar, 24V, Device dimensions: 1.92m x 0.8m x 0.40m. Bottle Parameters: Maximum height: 350mm, Maximum diameter: 120mm. Basic Package Includes: Automatic filling system, Safety door, Adjustable filling level tubes, Seal kit for 1" connection valve. Additional Equipment and Features: Pneumatic filling pump, CO2 pre-injection system for foam-free filling, Cleaning solution recirculation system, Automatic cap feeding system, Oxygen removal through water spray during capping, Integrated tank cleaning system, Cleaning mode bottle dummies, Backflow prevention.

Professional Isobaric Filling Machine with 6 Nozzles High-quality Italian isobaric filling machine specifically designed for carbonated beverage filling. The machine is equipped with 6 foam-reducing nozzles, ensuring an efficient and precise filling process. Technical Specifications: Maximum filling pressure: 5 bar, Power consumption: 0.37 kW (220V), Compressed air consumption: 120 l/min (6 bar), Control voltage: 24V. Dimensions and Capacity: Height: 1.92 m, Width: 0.8 m, Depth: 0.40 m, Maximum bottle height: 350 mm, Maximum bottle diameter: 120 mm. Applications: Ideal solution for filling: Beer, Cider, Sparkling wine, Carbonated water. Available Accessories: Automatic filling system, Pneumatic pump system, Container cleaning system (water and air or air only), Capping machine, 1" connection valve seal kit, Adjustable filling level tubes, Bottle models for valve maintenance, Non-return valve.

Compact filling machine for small producers - quality solution for beverage filling The fully automatic filling machine is specifically designed for small producers' needs, offering precise and reliable filling solution. The device is ideal for bottling craft beer, soft drinks, cider, wine, and water. Main features of the filling machine: Available in three models: with 4, 6, or 8 filling nozzles. Suitable for glass and PET bottles from 200ml to 2 liters. Automatic fill volume calibration. Precise dosing system. Additional equipment for production line assembly: Carbonators for beverage carbonation. Cappers for different types of caps. Industrial cooling equipment. Automatic labeling machine. Bottle rinsing and washing equipment. Pasteurization equipment. The filling machine ensures an efficient production process for small producers, enabling them to offer quality beverages in the local market.

NukaTap Counter Pressure Bottle Filler - Professional Beer Filling Equipment NukaTap counter pressure filler is a professional device made entirely of stainless steel, enabling beer filling from kegs to bottles while perfectly preserving the drink's taste, aroma, and carbonation. The device is compatible with all standard beer taps with an internal spout diameter of 10.0 mm or 3/8" universal thread. Main Features and Benefits This compact and durable device includes: Telescopic tubing for quick cleaning, Integrated counter pressure relief valve for precise control, Quick-disconnect carbonation cap, Duotight fittings for beer line connection. Technical Information and Usage The counter pressure filler operates on the pressure difference principle: Bottle is filled with CO2 to keg pressure, Beer flows into the bottle maintaining carbonation, Pressure remains balanced throughout the filling process. Compatibility and Maintenance The device is compatible with most forward-sealing taps, including: NukaTap SS models, NukaTap FC models, Perlick taps. Thanks to its stainless steel construction, the device can be cleaned with various chemicals, ensuring long-term durability and hygiene. The NukaTap counter pressure filler is an ideal choice for both home beer bottling and professional use, maintaining beer quality and taste throughout the entire filling process.
