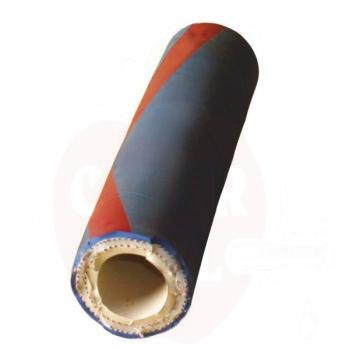

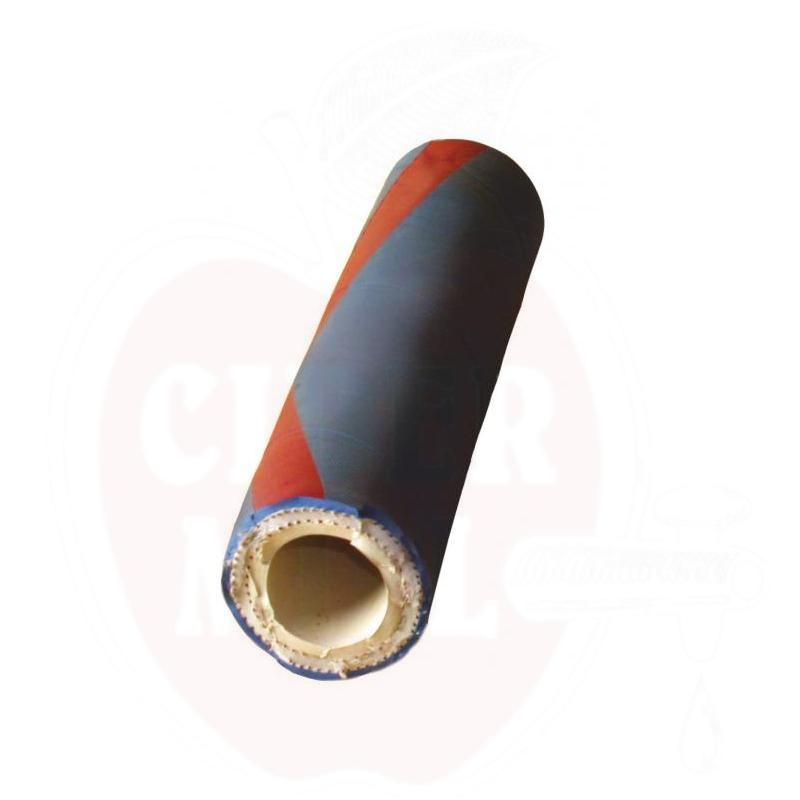

Hose NBR 25/37mm

High-Quality Food Industry Hose Professional hose specifically developed for food industry needs, including: dairy industry, juice industry, canning industry. Technical Specifications: Inner material: food-grade NBR, white and smooth, reinforcement layer: synthetic braided textile, outer cover: NBR/PVC, blue and smooth. Durability: Temperature resistance: -20°C to +165°C, working pressure: 20 bar, steam resistance: +165°C / 6 bar, suitable for use with animal and vegetable fats. Certificates and Approvals: CEE food industry standard, FDA (USA) approval, BGW (Germany) classification, IANESCO (France) approval. Usage Recommendations: To ensure hose longevity and reliability: Check chemical resistance of the hose according to the substance used, monitor operating conditions (temperature, pressure, flow rate), ensure proper operator training, use appropriate personal protective equipment, avoid contact between hose and fittings with harmful chemicals.

Food Industry TPE-S Hose for Alcoholic Beverages Professional hygienic TPE-S thermoplastic rubber hose equipped with steel spiral and textile reinforcements. Reliable in temperature range from -30°C to +100°C. Main Applications: Beer, wine and cider transport, Handling of distillates up to 50% alcohol content, Sparkling wine and champagne production processes, Nitrogen and carbon dioxide transport. Hose Properties: Phthalate-free and plasticizer-free construction, Contains no animal derivatives, Bacteria growth resistant surface, Odorless and tasteless material, Preserves organoleptic properties of beverages. Technical Specification: Inner layer: white, smooth TPE-S rubber, Reinforcement: polyester fiber textile and steel spiral, Outer layer: red TPE-S rubber, FDA and EU 10/2011 certified. Food Compatibility Categories: Category A: foodstuffs pH > 4.5 and up to 10% alcohol, Category B: acidic foodstuffs pH < 4.5, Category C: products up to 20% alcohol, Category D1: products up to 50% alcohol. Quality Control: Tested with the following simulants: 3% acetic acid, 20% ethanol, and 50% ethanol. Testing period: 10 days at 40°C.

Food Industry Quality Hose Professional food industry hose specifically designed for use in dairy industry, juice production, and preservation industry. The hose is extremely durable and flexible. Durability and Properties: Resistant to animal and vegetable fats. Suitable for processing wine, cider, beer, vinegar, and alcohol (up to 96%). Resistant to steam, water, and hot juice. Maximum working temperature: +80°C. Certificates and Compliance: CEE certificate for food contact. Compliant with FDA (USA) and BGW (Germany) standards. IANESCO (French Institute Poitiers) approval. Usage and Maintenance Instructions: Check the chemical resistance of the hose according to manufacturer's instructions. Monitor operating conditions (temperature, pressure, flow rate). Avoid contact between hose cover and ends with damaging chemicals. Operators must complete appropriate training. Always use appropriate protective clothing and equipment. For additional information and special applications, always consult with the supplier, especially if the composition or parameters of the processed substance differ from standard specifications.

Food Industry Quality Hose - NBR/PVC Material for Food Transportation Professional food industry hose for safe transportation of juices, oils, and alcoholic beverages. Ideal for use in beer, wine, cider, and juice production facilities. Applications and Technical Properties: Suitable for liquid food transportation, specially designed for oils and fats, safe for use with liquids up to 96% alcohol content, standard length: 20 meters. Quality Benefits: Antibacterial white inner surface, compliant with EU food safety standards 1935/2004 and 2023/2006, FDA and BgVV certified, resistant to cleaning agents up to +130°C. Technical Specification: Inner layer: food-grade NBR, white and smooth, outer layer: weather-resistant NBR/PVC, blue, reinforcement: synthetic textile and steel spiral, working temperature: -30°C to +100°C. Safety Instructions and Maintenance: To ensure long-term durability of the hose: Regularly check chemical compatibility with transported liquid, monitor temperature and pressure parameters, ensure operators have received proper training, always use appropriate protective equipment. For professional use in food industry. Consult supplier for specific use cases.

Food Industry TPE-S Thermoplastic Rubber Hose High-quality TPE-S thermoplastic rubber hose with steel spiral and textile reinforcement, ideal for transporting food liquids. Reliable in temperature range from -30°C to +100°C. Applications: Beer and cider, wine and sparkling wine, distillates (up to 50% alcohol content), nitrogen and carbon dioxide transport. Technical Properties: Material: hygienic TPE-S rubber, internal structure: polyester fiber textile and steel spiral, color: white interior, red cover, smooth inner surface. Certificates and Compliance: FDA and EU food regulation 10/2011 certificates in classes A, B, C, D1: Class A: food products pH >4.5 and up to 10% alcohol content, Class B: acidic food products pH <4.5, Class C: foods with up to 20% alcohol content, Class D1: foods with up to 50% alcohol content. Advantages: Phthalate-free and plasticizer-free, contains no animal derivatives, taste and odor neutral, surface resistant to bacterial growth, preserves organoleptic properties of products, flexible and easy to handle. Maintenance and Safety: Hose lifetime depends on usage conditions, temperature, pressure, and frequency of use. Safe operation requires proper operator training and use of protective equipment. Selection of appropriate fittings and regular maintenance ensure long-term hose reliability.

PVC Cristallo AL Structural Hose for Food Industry PVC Cristallo AL hose with textile reinforcement is specially certified for food transport. Complies with European Union standard (EU)10/2011 and is suitable for liquid categories A-B-C-D2 and has KTW "C" certification. Technical Specifications Operating temperature: -20°C to +60°C. Suitable for use with: Food oils, Acidic juices (up to 3% acidity), Apple juice (pH 3.5), Light alcohol solutions (up to 20% ethanol). Usage Instructions Check hose compatibility with transported liquid before use. Monitor operating conditions (temperature, pressure, flow rate). Ensure proper maintenance of hose and fittings. Only use trained personnel for hose handling. Wear necessary personal protective equipment. Safety Information Hose life depends on operating conditions, temperature, pressure, and transported substance. For special inquiries, consult with supplier, especially when planning to use the hose in non-standard conditions.

Industrial Heat-Resistant Silicone Hose for Food Processing Specially reinforced silicone hose for food industry needs, ideal for transporting sterile, acidic, and alkaline solutions. Technical Specifications: Internal diameter: 19mm, Wall thickness: 4.5mm, Temperature resistance: -40°C to +100°C. Key Features: Excellent bending radius and shape retention, Fully sterilizable, UV-radiation resistant, Transparent and flexible even at low temperatures, Resistant to acidic and alkaline solutions. Usage and Safety Instructions: Always check hose compatibility with specific chemicals or solutions, Follow manufacturer's specified usage conditions, Avoid contact with damaging chemicals, Use appropriate protective equipment when handling, Regular maintenance and inspection extend hose life.

9.5mm Quick Connect Beverage Pipe Insulation Sleeve High-quality insulation sleeve for 9.5mm beverage pipe quick connectors, ensuring efficient temperature protection and an energy-saving solution. This special insulation is ideally suited for juice and beverage industry equipment. Product Features: Fits precisely on 9.5mm quick connect beverage pipes. Durable and long-lasting insulation material. Maintains stable temperature. Easy to install and maintain. Compliant with food industry requirements. The insulation sleeve protects the beverage pipe from external influences and helps maintain optimal fluid temperature throughout the piping system. Suitable for use in both cold and warm beverage transport.

Pharmasteel TPE-S Food Hose with AISI 302 Spiral High-quality transparent food industry hose made of TPE-S rubber and reinforced with AISI 302 stainless steel spiral. The hose's inner and outer surfaces are completely smooth, ensuring optimal flow and easy cleaning. Main features: Neutral taste and odor, High chemical resistance, Excellent resistance to oils and fats, Protects product organoleptic properties, Resistant to ozone and weather effects. Certificates and compliance: EU 10/2011 food grade certificate (classes A, B, C, D1, D2), FDA CFR 21-177.2600 compliance, USP CLASS VI pharmaceutical standard. Applications: Wines and fruit juices, Alcoholic beverages (up to 96%), Dairy products and by-products, Cosmetic products and creams, Pharmaceutical products, Oil and fat-containing products. Environmentally friendly production process without vulcanization reduces CO2 emissions and energy consumption, eliminating hardener residue leaching into the final product.

Voolik 3m FlexiRoyal EPDM 1,5" TC (sise Ø 38mm), õllepruulimiseks. Kasutame mitmekordseid, paindumatuid ja muljumiskindlaid kummimaterjalist imi- ja väljalaskevoolikuid, mis suudavad toime tulla nõudlike rakendustega, mis ületavad kõrgeimad toiduainete standardid. Need voolikud taluvad temperatuure vahemikus -32°C kuni 121°C. Need voolikud on valmistatud spetsiaalselt, et käsitleda CIP-süsteemides kasutatavaid karmisid kemikaale ja temperatuure. Kemikaalid, sealhulgas happed, leelised, äädikhape, kõrge väävlisisaldusega ained, piimhape ja fosforhape on kõik nendel voolikutel testitud, et tagada vooliku suurepärane töö mitte ainult esimesel päeval, vaid ka aastate jooksul ilma kahjustusteta. Need voolikud on FDA ja USDA poolt heaks kiidetud ning vastavad 3A sanitaarstandardile 18-03, mis muudab voolikud sobivaks õlle ja paljude muude tööstusharude, näiteks farmaatsia- ja veinitööstuse jaoks. Erinevalt odavamatest silikoonvoolikutest on need voolikud valmistatud nitriil-polüvinüülkloriidsegust, millel on palju madalam hapniku läbilaskvusaste. See on aspekt, mida sageli õlletööstuse riistvara puhul tähelepanuta jäetakse, kuid see tagab, et teie õlu püsib kauem värske. Need voolikud on valmistatud maksimaalse läbimõõduga, et saavutada suurim läbilaskevõime. Suur läbimõõt on tootmisel kallim, kuid tasub ennast sõna otseses mõttes ära tänu kõrgemale voolukiirusele. Siledad otsad on valmistatud ilma sisemise paisumiseta, nii et kogu voolik tühjeneb hästi ja CIP puhastab ilma peidetud pragudeta, kuhu mustus võiks koguneda. Suur sisepind muudab need voolikud sobivaks ka viskoossete ainete jaoks, nagu vedel suhkur, pärmikook, humalasetted ja muud vedelikud, milles on tahkeid osakesi. FlexiRoyal EPDM õlletööstuse voolikud vajavad vähemalt kolme CIP ringlust, et eemaldada tootmisprotsessist järelejäänud lõhnad, mis võiksid joogile üle kanduda. Usume kindlalt, et kompromiss puhastustsüklis mõne ringluse tegemise ja seejärel palju parema keemilise vastupidavusega vooliku omamise vahel, mis suudab taluda tugevamat juhuslikku kemikaalide väärkasutust, on kasvava ettevõtte jaoks äärmiselt väärtuslik. Toru materjal: Valge nitriil-polüvinüülkloriidsegu (heaks kiidetud FDA/USDA poolt ja vastab 3A sanitaarstandardile 18-03). Tri-Clover materjal: 304SS roostevaba teras. Kate: Kuninglik sinine nitriil-polüvinüülkloriidsegu. Tugevdus: Sünteetilise kiu heeliks koos spiraalse tsingitud metalltraadiga. Temperatuur: -32°C kuni 121°C. Kasutusala: See voolik on väga paindlik ja seda saab kasutada õliste või mitteõliste toiduainete transportimiseks veoautodes ja tehaseseadmetes raskusjõu, surve või imiseadme tingimustes. Töötav vaakum: 737 mmHG. Töörõhk: 10 baari (@ 121°C max temp). Minimaalne painderaadius: 102 mm.
