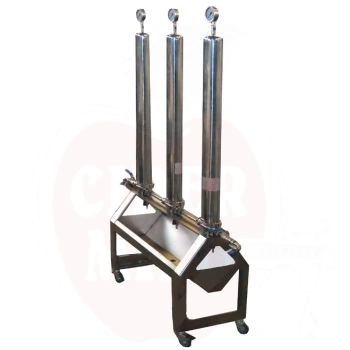

Filter unit 3-set DN30, Stainless

Tandem Professional filter housing, with which it is possible to filter wine, liqueurs, syrups and fruit juices, by simply changing the filter cartridges and getting a result at a professional level. The filter elements are washable and reusable, available in different materials and with different levels of filtration. A 3-filter element fits in the housing. It is possible to use pressurized filtration or with the Enolmaster bottler. Technical description: Overall dimensions: 32 x 30 x 28 h cm, elements sold separately, hose connection for 25mm inner diameter pipe..

Plastic filter housing for filtering wine and other liquids. A 10x14mm hose is suitable for hose connections... the nozzle itself is 11mm. Also buy a filter element with a suitable density: 0.2; 0.5; 1 or 5 microns..

Filter housing made of high-quality stainless steel into which filter elements with different sealing fit. Ask for more connection joints and filter elements...

The 10-inch filter housing is a tool used in the pre-bottling stage for complete cleaning, sterilisation, and cold polishing to filter beer, wine, fruit juices, or other food-grade liquids. The structure includes a 10-inch AISI 316 stainless steel housing, ensuring maximum hygiene and safety during beverage filtration and removing yeast and bacteria cells, thereby minimizing changes in the final product. The pore size of the membranes in the 10" filter housing is 0.1 - 10 µm, with a capacity of up to 400 l/h. Compact and durable, even under harsh working conditions, the materials used in the construction of the 10" filter housing are of high quality. Additionally, the disassembly of components allows for easier cleaning after use. Material: AISI 316 stainless steel. In-Out Connections: 3/4". Connection: D. Drain: 1/4". Venting: 1/8". Flow rate: 400 l/h. Pore size: 0.1 - 10 µm. Dimensions in mm: 105 (H) x 375 (W) x 318 (D). Weight: 3.5 kg. Volume: 1.9 l. Conforms to CE safety standards. Filter cartridge not included.

Micro-filter Housing 30". These special filters consist of a shell made of AISI 316 stainless steel 30", inside which a special cartridge is placed, which allows thorough cleaning, cold sterilization or polishing of wine, beer and fruit juices. All parts which are in contact with the liquid are made of stainless steel and completely removable for easy cleaning. The membrane filter has a pore size of 0.1 - 10 µm which carry out micro filtration. Material: AISI 316 30". Flow rate: 1000 L/h. Pore size: 0.1 - 10 µm. Apparatus complying with CE safety standards. Cartridge not included.

Micro-filter Housing 30". These special filters consist of a 30" AISI 316 stainless steel housing, inside which a special cartridge is placed, allowing for thorough cleaning, cold sterilization, or polishing of wine, beer, and fruit juices. All parts in contact with the liquid are made of stainless steel and are completely removable for easy cleaning. Features: Material: AISI 316 30". Flow rate: 3000 L/h Pore size: 0.1 - 10 µm Apparatus complies with CE safety standards Cartridge not included.

The Housing 30" 2-bay filter with Bypass is an instrument used in the filtration stage preceding bottling to perform complete cleaning, sterilisation, and cold polishing of beer, wine, fruit juices, or other food liquids. Thanks to the integrated bypass system, it allows filtering the liquid with three different degrees of filtration simultaneously or excluding one or more bays as needed. The equipment structure consists of three 30" AISI 316 stainless steel bays, ensuring maximum hygiene and safety in beverage filtration, effectively removing yeast cells and bacteria while minimising alterations to the final product. The Housing 30" filter cartridges, with pore sizes ranging from 0.1 to 50 µm, offer a working capacity of up to 700 L/h. Compact and durable, the Housing 30" filter is designed to withstand severe operating conditions, ensuring high-quality performance. Additionally, the disassembly of components simplifies post-use cleaning. Characteristics: Material: Stainless steel AISI 316, Flow rate: 700 L/h, Number of bays: 2 with single cartridge, Cartridge size: 30" - connection 7 (to be purchased separately), Integrated bypass system, Cartridge filtration degree: 0.1 to 50 µm, Conforms to CE safety standards, Overall dimensions: 1600x560x1570 mm, Filter cartridges not included.

The Housing 30" 3-bay filter with Bypass is a device used in the filtration stage before bottling to carry out complete cleaning, sterilisation, and cold polishing of beer, wine, fruit juices, or other food liquids. Thanks to the integrated bypass system, it allows filtering the liquid at the same time with three different filtration levels or excluding one or more bays as needed. The equipment features three 30" AISI 316 stainless steel bays, ensuring maximum hygiene and safety during beverage filtration and effectively removing yeast cells and bacteria while minimising any changes to the final product. Housing 30" filter cartridges have pore sizes ranging from 0.1 to 50 µm and a working capacity of up to 1000 L/h. Compact and durable even under severe operating conditions, the materials used ensure high quality. Additionally, the disassembly of various components simplifies cleaning after use. Characteristics: Material: AISI 316 Stainless steel. Flow rate: 1000 L/h. Number of bays: 3 with single cartridge. Cartridge size: 30" – connection 7 (to be purchased separately). Integrated bypass system. Cartridge filtration degree: 0.1 to 50 µm. Conforms to CE safety standards. Overall dimensions: 2400x560x1570 mm. Filter cartridges not included.

Stainless filter with 2mm openings, which is suitable for use in several purposes. When pre-filtering the pressed juice, place the filter in the container and fasten it. Then direct the juice to the filter, where the larger sediment remains in the filter and the juice flows through the filter into the container. Extraction of juice from crushed juice residues. Place the filter in the ee-crushed raw material container. The juice then seeps into the filter, where it is pumped out. In this way, the work of pressing is faster, since a part of the juice has already been removed. Filter dimensions: height 100cm and diameter 15cm. Perforated filter 2mmx3.5mm.

High-quality stainless steel filter with 2 elements from the German manufacturer - Maurer. The filter is suitable for pre-filtering juice. The filter is not suitable for removing suspended matter from the liquid, e.g. yeasts and various suspended particles. The device can be mounted on the wall. Additional equipment: device on legs, stainless mesh filter elements with a density of 0.5mm or 0.25mm

High-quality stainless steel filter with 1 element. The stainless mesh filter element has a density of 0.1 mm (100 microns). The filter is not suitable for removing suspended matter from the liquid, e.g. yeasts and various suspended particles. Ask for DIN connectors..

Cartridge suitable for filtration with Filter Housing. With this cartridge you can clean, cold sterilize or polish wine, beer and fruit juices. Characteristics: Material: Polyethersulfone (PES). Length: 30". Micron: 0.22. Connection: 7.

Cartridge holder to store the 30" filter cartridge and maintain its efficiency for a long time. Features: Mirror polished. Length 30".
