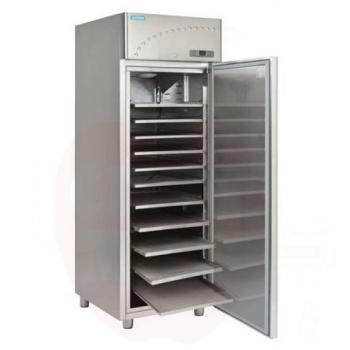

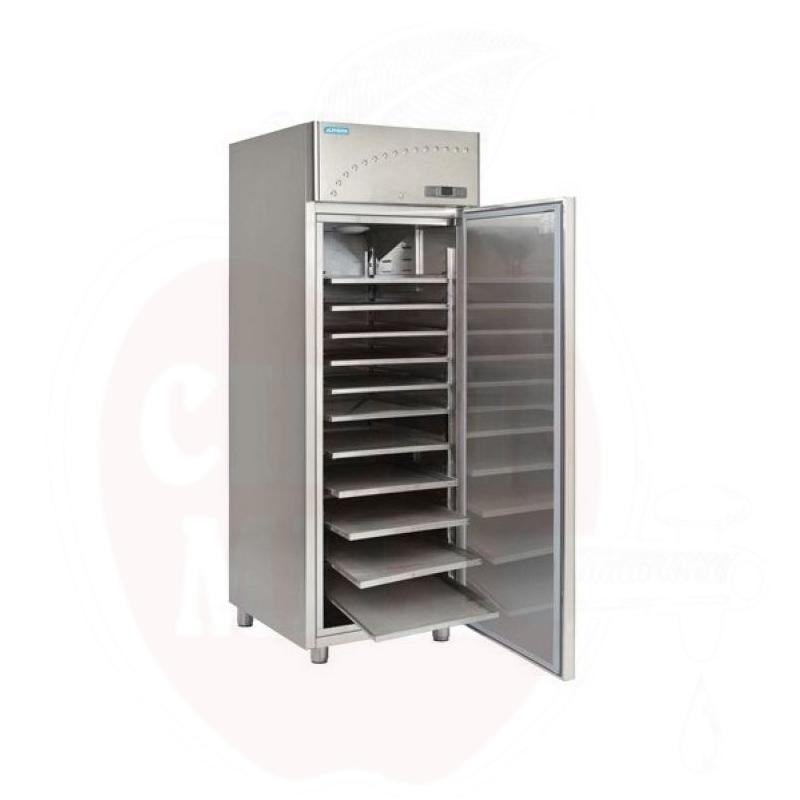

Dryer 3,6m2 CFD700SS

AlpFrico condensing dryers save 30-35% energy compared to conventional fan dryers. It is possible to increase the drying area up to 2x by purchasing additional grates max. 22 grid. Technical data: Volume 550L and weight 130kg. The effective surface of the dryer is 3.6m2. 11-plate with stainless frame and mesh (65x53cm and net size 495x635mm). Codens drainage at a height of 175 cm on a device with a pipe opening of 15 mm (in addition, a hose is required). External dimensions: 710x800x2000mm and internal dimensions: 570x660x1470mm. Drying temperature range +35C /+50C. Energy consumption: 10 kwh/24h; 450W; 10.6A (2.5A). Drying time/cost, example: 22 kg of apples (at max. filling), cut into 1/8 pieces, dries in 40 hours, i.e. total energy consumption of 16.6 kwh / 1 kg=750 W. When putting the device into operation, you need a 220V electrical connection and connecting the condensing water drain to the sewer or collecting vessel. EXAMPLE: Adjusting the setting values for use at 30 °C: If the dryer is intended for use at 30 °C, we recommend setting SET1 to 28 °C and SET2 to 30 °C. 1. To change the setpoint value, press and hold the SET1 (SET2) key for 2 seconds. 2. The setpoint value will be displayed and LED1 and 2 will flash. 3. To change the set value, press the o or n arrow within 10 seconds. 4. To memorize the new setpoint value, press the SET1 (SET2) key again or wait 10 seconds.  .
