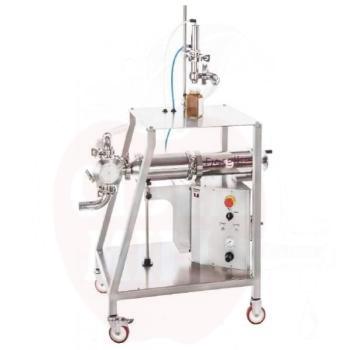

DOSELITE VOLUMETRCI FILLER ON FRAME WITH WHEELS WITH RANGE FROM 50 to 1300 cc,

.

The high-quality CE-certified DOSELITE dispenser made in Italy allows dosing of 5-250ml volumes. It is possible to dose oil, creams and various viscous and less viscous liquids such as honey. KIT: dosing device 5-250ml + 3D valve + stainless steel bottling nozzle Ø20/25mm (stainless funnel of suitable size is added to the product price). DESCRIPTION OF THE WORKING PROCESS: When filling the funnel of the device, the product to be dosed pours into the measuring chamber, and when the specified dose is reached, the product is pushed out of the output nozzle with compressed air. A hand crank is installed on the back side of the product, which determines the exact volume of dosing. All seals are made of materials that comply with food standards, and the rest of the material that comes into contact with the substance to be bottled is made of stainless steel. When cleaning the bottling device, it is not necessary to have special tools - everything is easy and fast. The flow and speed of the substance to be bottled can be adjusted with 2 air pressure regulators. Warranty 12 months. The working process of the product requires a 6bar compressed air compressor, preferably with a 50-100L hydrophore, which is not included in the product price (orient.market price 150EUR+km). WORKING PROCESS: 1. Fill the 30L funnel and connect the device to the electrical network 2. Set the bottling volume using the hand crank on the back of the device 3. Place the tare under the bottling nozzle and press the ON button.

Crown cap and ice cap removal, hand dispenser and bottler all in one device. For small volume production..

The high-quality CE-certified doser DOSELITE, made in Italy, allows you to dose volumes of 20-700ml. It is possible to dose various viscous and hot puree-like raw materials. SET: adjustable dosing flask 20-700ml + 3D valve (viscous liquid) + stainless bottling nozzle Ø20/25mm and 15l raw material funnel (the price of the funnel is added to the product cost). DESCRIPTION OF THE WORKING PROCESS: Connect the hose and place the liquid (if it is very viscous, we recommend using a funnel that is filled with the raw material), when you press the button, the device creates a negative pressure and sucks the liquid into the flask, and then the liquid is forced out of the measuring flask through the outlet nozzle with the help of compressed air. A hand crank is installed on the rear side of the product, which determines the exact volume of the dosing or piston. All seals are made of materials that comply with food standards, and the rest of the material that comes into contact with the substance to be bottled is made of stainless steel. When cleaning the bottling device, it is not necessary to have special tools - everything opens easily and quickly. The flow and speed of the substance to be bottled can be adjusted with 2 air pressure regulators. Warranty 12 months. The working process of the product requires a 6bar compressed air compressor, preferably with a 50-100L hydrophore, which is not included in the product price..

Dispenser made in Italy, suitable for bottling liquid or viscous raw materials. The device with easy-to-open and close clamps is easy to maintain and clean. Dispenser: 2-100ml (plunger size adjustable with crank), container 15l, viscous raw material. Works with compressed air. Max. working temperature +50C. Extras: Working temperature +90C..
