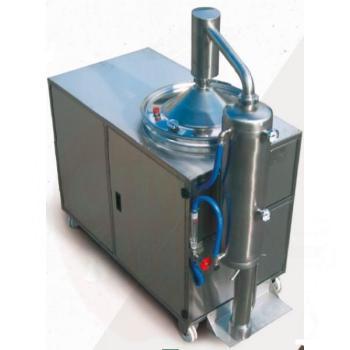

DISTILLER DRAGON PRO 150

PIREX glass separator sheet with holder. Suitable for extracting essential oils. The purpose of this accessory is to separate the essential oil from the aromatic - pre-extracted product..

High-quality stainless distillation-extractor 250L. Made in Italy. With the device, it is possible to produce various essential and vegetable oils very easily and quickly. Available in sizes 12 - 250L. The bottom of the unit is filled with water up to the grate and plant material is added and heated to boiling on a gas or electric stove. As a result of distillation, water vapor is released together with vegetable oils, which are captured in a glass flask, which in turn is cooled with water (the cooling process must start at approx. +50C). Since oil is lighter than water, oil and water separate from each other in the glass flask. The whole process takes approx. 60-70 min depending on the power of the heater. The devices can use fresh or dried plant material such as lavender, mint, rosemary, thyme, bay leaves, sage, oregano, chamomile, rose, eucalyptus, lemon balm, peppermint, wormwood, basil, verbena grass, cypress, mountain pines, helichrysum, geranium, eucalyptus, juniper, mastic, marjoram, parsley, rue, turpentine, valerian, etc. Packaging: Weight 48 kg, Size (LxWxH) 80x60x120 cm HOW TO USE? 1 ° Place the water in the boiler. The water must not exceed the level established by the grid previously placed at the bottom. 2 ° Place the plants in the still, avoiding blockages in the steam outlet pipes. 3 ° Place the upper grate and close the still lid 4 ° Attach the steel tube and the Pyrex glass burette 5 ° Turn on the heat source. Use the cooling system when the temperature has reached 50 °C. 6 ° When a temperature of about 100 ° C is reached, the steam grabs the essence from the plants due to the difference in the specific gravity of water and oils 7 ° After about one hour, check the rise of the oil level in the collection cylinder 8 ° Turn off the heat source if the rise is negligible 9 ° Collect the extracted oil through the tap placed at the bottom of the burette. Clean the still..

Ultrasonic extraction uses a frequency range of 16-100 KHz and requires a liquid that allows the ultrasonic wave to propagate up to the plant product. Ultrasonic technology allows the complete extraction of the plant material, preserving its integrity of all the molecules contained in the plant, thermolabile, thermostable, water-soluble or fat-soluble. The result is a stable mixture of the total number of molecules in the plant cell within a few minutes. In general, extraction is more efficient by pre-grinding the plant material, which is then kept in suspension by gently shaking the plant material throughout the extraction cycle. Ultrasound for extraction allows to significantly reduce the production time because ultrasound, by breaking the cell walls, reduces the transfer times of the active ingredients. This extraction technique is considered organic because the process is only physical. You do not use or add chemicals. The achieved result is very good, which breaks down the plant almost completely. Power: 170 W - 230 V - 50Hz.

Steamer-oil extractor glass burette 100ml for 125l model.

It comes equipped with a pot , stainless steel Tri clamp seal , the column with helmet attached, and a side condenser with water inlet at the bottom and water outlet at the top, as well as a copper spout where the distillate will come out of. It also comes with 2 internal sieves, one at the bottom of the column, which is removable, and a top sieve on the helmet to prevent the passage of plants into the tube and condenser. With the tri clamp seal, you will not have to use an additional sealing method. Plastic hoses / heat source not included.
