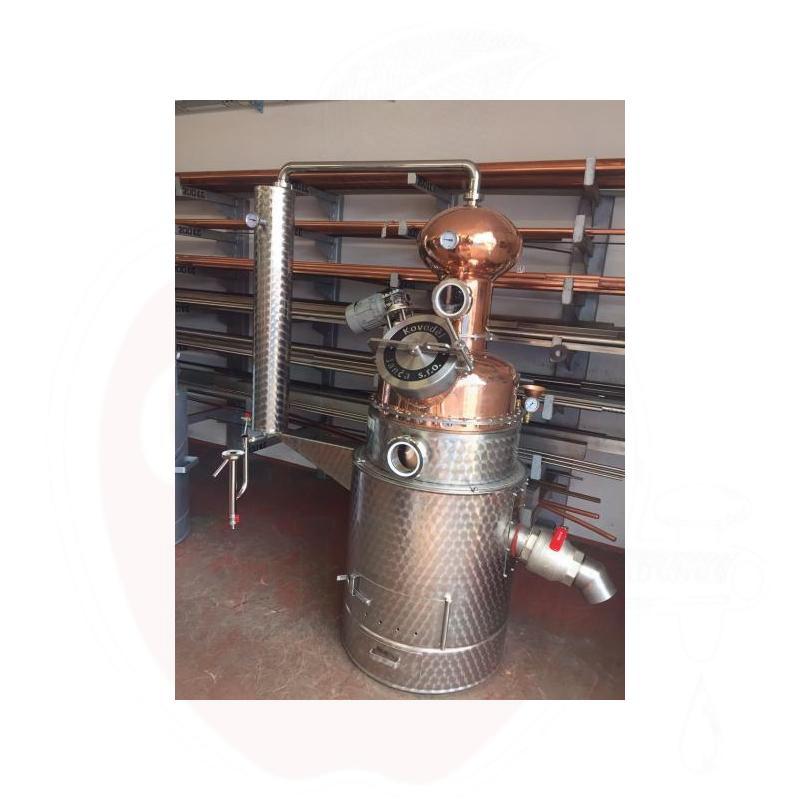

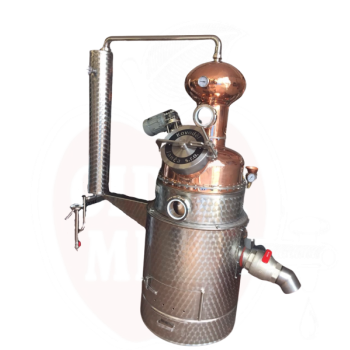

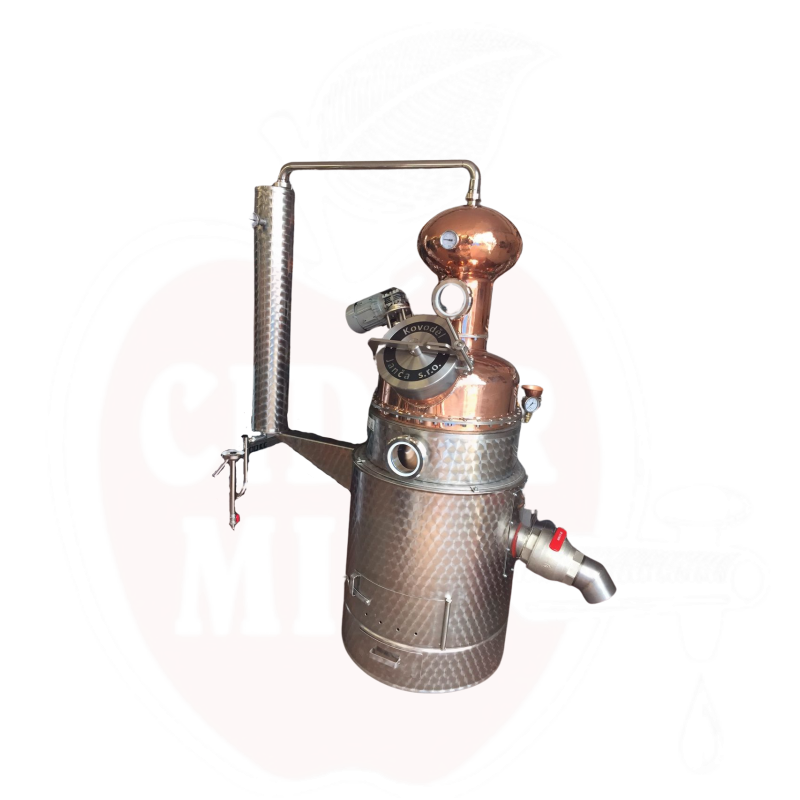

Distilator 500l of gas heating with a spherical tip

High-quality copper and handmade distiller from a Portuguese manufacturer. Tank 100l, dimensions 125x135x60cm, copper thickness 1.4mm, weight 35kg Ps. Dimensions and weight may differ from those indicated above, as it is a handmade product..

High-quality copper and handmade distiller from a Portuguese manufacturer. Tank 200l, dimensions 155x176x91cm, copper thickness 1.4mm, weight 55kg Ps. Dimensions and weight may differ from those indicated above, as it is a handmade product..

High-quality copper and handcrafted distiller from a Portuguese manufacturer. Tank 300l, dimensions 185x195x110cm, copper thickness 1.6mm, weight 70kg Ps. Dimensions and weight may differ from those indicated above, as it is a handmade product..

High-quality copper and handmade distiller from a Portuguese manufacturer. Tank 100l, dimensions 150x140x90cm, copper thickness 1.5mm, weight 58kg Ps. Dimensions and weight may differ from those indicated above, as it is a handmade product..

Distillers with a capacity of up to 200 liters It is possible to order distillation devices of 100L, 150L, ​​​​170L and 200 liters. The device is self-powered, i.e. second burning is excluded. Distillation blocks are one-, two- and three-stage, each block has a deflector, which can be equipped with a catalyst if necessary. All block parts have laundry, view windows (DN 100) and lighting. Distillation blocks can be heated in several ways. Most often with a gas burner (natural gas or propane-butane). Heating is also possible with electric heating or solid fuel (wood). In some versions, combined heating of the boiler (electricity + solid fuels) is possible. Recommended power for distillers of the above capacity: electricity approx. 21-40 kW/h and gas burners approx. 40-75 kW/h. The distillation block boiler is always double-walled and therefore has a pressure control valve and a non-return valve, which maintains a constant operating pressure in the cooler and prevents damage during heating or cooling of the boiler (maximum operating pressure in the cooler is 0.4 bar). The body of the boiler is completely stainless (tank and body) and the outlet valve is 4 " Distillation blocks can be placed on one unit above each other or next to the boiler (this option is not very common, but it is used in cases where the customer has a low ceiling in the working areas). The transfer pipes are stainless with a large performance and low water consumption.Basic dimensions: - height of distillation blocks 3100 mm (3300 mm with catalytic converter) - minimum installation space 2000 x 2800 mm - width of distillation blocks - 2800 mm - inlet or filling opening - 250 mm If the customer has sufficient ceiling height (at least 3.1 m). + cleanliness - stronger aroma of the brand - saving time and energy Accessories: - control unit thermostat (automatic cooling control) - gas burners (natural gas or propane-butane) - digital thermostat (for electric heating) - catalyst (copper wire bundle) - lighting of valves and boilers - catalyst (ceramic beads) - steam mixer - mixer with motor - heat exchanger.

High-quality copper and handmade distiller from a Portuguese manufacturer. Tank 200l, dimensions 155x176x91cm, copper thickness 1.4mm, weight 55kg Ps. Dimensions and weight may differ from those indicated above, as it is a handmade product..

Distillers with a capacity of up to 200 liters It is possible to order distillation devices of 100L, 150L, ​​​​170L and 200 liters. The device is self-powered, i.e. second burning is excluded. Distillation blocks are one-, two- and three-stage, each block has a deflector, which can be equipped with a catalyst if necessary. All block parts have laundry, view windows (DN 100) and lighting. Distillation blocks can be heated in several ways. Most often with a gas burner (natural gas or propane-butane). Heating is also possible with electric heating or solid fuel (wood). In some versions, combined heating of the boiler (electricity + solid fuels) is possible. Recommended power for distillers of the above capacity: electricity approx. 21-40 kW/h and gas burners approx. 40-75 kW/h. The distillation block boiler is always double-walled and therefore has a pressure control valve and a non-return valve, which maintains a constant operating pressure in the cooler and prevents damage during heating or cooling of the boiler (maximum operating pressure in the cooler is 0.4 bar). The body of the boiler is completely stainless (tank and body) and the outlet valve is 4 " Distillation blocks can be placed on one unit above each other or next to the boiler (this option is not very common, but it is used in cases where the customer has a low ceiling in the working areas). The transfer pipes are stainless with a large performance and low water consumption.Basic dimensions: - height of distillation blocks 3100 mm (3300 mm with catalytic converter) - minimum installation space 2000 x 2800 mm - width of distillation blocks - 2800 mm - inlet or filling opening - 250 mm If the customer has sufficient ceiling height (at least 3.1 m). + cleanliness - stronger aroma of the brand - saving time and energy Accessories: - control unit thermostat (automatic cooling control) - gas burners (natural gas or propane-butane) - digital thermostat (for electric heating) - catalyst (copper wire bundle) - lighting of valves and boilers - catalyst (ceramic beads) - steam mixer - mixer with motor - heat exchanger.

The essential oil extractor consists of a 120 liter heating tank, equipped with a removable internal filter; a lid with clamp closure, and a cooling tank with a capacity of 25 litres, equipped with tube and coil; the equipment also includes an analogue thermometer and an integrated safety valve. The operation of the essential oil extractor is simple: fill the tank with water up to the edge of the filter and insert the plants, compacting them to avoid spaces for steam outlet. Fill the cooling tank with cold water. Close the clamp cover and insert the pipe for the cooling circuit. Heat the water in the plant collection tank. Once reached the temperature of 100° C, the steam begins to capture the essence contained in the plant; crossing the serpentine circuit it cools and physically separates from the essential oil. In the last phase the essential oil extractor releases the finished product directly from the cooling tank pipette. After about an hour from the start of the extraction, check the quantity of essential oil coming out and, in case of absence, stop water heating. Heating tank features: Material: 18/10 AISI 304 stainless steel. Capacity: 120 L. Internal diameter: 500 mm. Height: 750 mm. Conical clamp closed lid. Analog thermometer. Safety valve. Bottom: flat, rounded and welded. Wall and bottom thickness: 1.2 mm. External tank finish: flower-patterned. Internal tank finish: Mirror polished. External tank welding finish: Satin. Cooling tank features: Material: 18/10 AISI 304 stainless steel. Capacity: 25 L. Internal diameter: 302 mm. Height: 365 mm. Wall thickness: 1 mm. Bottom thickness: 1.5 mm. Cooling coil. Handles. Water overflow pipette. Mirror polished internal finishes. Flower-patterned external finish. Dimensions: mm 1200x540x870h
