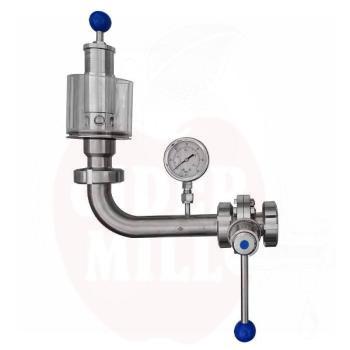

DIN32 stainless steel airlock for isobaric fermenter

Stainless steel isobaric tank for beer fermentation and storage, pressure holding 3 Bar, ideal for maturation and dry-hopping. Thanks to the pressure seal, it is ideal for all companies and breweries requiring isobaric fermentation. The natural carbonation of the beer is caused by the carbon dioxide produced by the yeasts during a leavening process taking place in an airtight container without the addition of sugars. Provided with: upper manhole cover Ø 400, frame height 80 mm, hooks closure, side and flag opening. Complete with no. 2 stainless steel lifting and handling handles. AISI 304 stainless steel Din 50 vacuum breaker vent valve. Predisposition for safety valve with 1/2" female threaded connection in AISI 304 stainless steel. AISI 304 stainless steel 500 mm ladder support. Internal spray ball Ø 65 AISI 316 completely removable. Removable Din 32 AISI 304 washing hose. AISI 304 cross-shaped connection, 0-5 bar pressure gauge housing, CO2 inlet butterfly Din 32 valve male-swivel / 32 Din female, predisposition for bubbler connection Din 32 female. Inwards going level indicator with stainless steel protection complete with upper and lower level holder Din 15 x tube Ø 12, connected to the washing tube for easy sanitization. AISI 304 stainless steel cylinder cooling jacket h 750 mm, in/out sleeves for cooling liquid Ø 1" gas, max. operating pressure 1.5 bar. Cooling jacket on the molded cone h 300 mm in AISI 304 stainless steel, in/out sleeves for refrigerant liquid Ø 1" gas, max. operating pressure 1.5 bar. Cylinder and bottom insulation with 60 mm of Armaflex-type adhesive insulation. Bimetallic thermometer in AISI 304 stainless steel, scale -10/+50°C, stem length 200 mm. Additional stainless steel probe holder. Probe holder in AISI 304 stainless steel, length 300 mm. Take Din 15 sample in AISI 304 stainless steel. Total discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Partial discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel for dry-hopping. Nr. 4 legs with adjustable M 20 feet in AISI 304 stainless steel. 3 bar safety valve with 1/2" threaded connection in AISI 304 stainless steel. Technical features: made of AISI 304 25/10 mm thick stainless steel. BA glossy internal finish with satin welds, flower-patterned external finishing with satin welds. Conical bottom 60° - 10° conical lid. Capacity: 650 L +/- 3%. Internal diameter: 800 mm. External diameter: 930 mm. Cylinder height: 1000 mm. Leg height: 1210 mm. Total height: 2570 mm.

Stainless steel isobaric tank for beer fermentation and storage, pressure holding 3 Bar, ideal for maturation and dry-hopping. Thanks to the pressure seal, it is ideal for all companies and breweries requiring isobaric fermentation. The natural carbonation of the beer is caused by the carbon dioxide produced by the yeasts during the fermentation process in an airtight container without the addition of sugars. Provided with: upper manhole cover Ø 400, frame height 80 mm, hooks closure, side, and flag opening. Equipped with two stainless steel lifting and handling handles. AISI 304 stainless steel Din 50 vacuum breaker vent valve. Predisposition for a safety valve with 1/2" female threaded connection in AISI 304 stainless steel. AISI 304 stainless steel 500 mm ladder support. Removable internal spray ball Ø 65 AISI 316. Removable Din 32 AISI 304 washing hose. AISI 304 cross-shaped connection, 0–5 bar pressure gauge housing, CO2 inlet butterfly valve Din 32 male-swivel / 32 Din female, predisposition for bubbler connection Din 32 female. Inwards level indicator with stainless steel protection, complete with upper and lower level holders Din 15 x tube Ø 12, connected to the washing tube for easy cleaning. AISI 304 stainless steel cylinder cooling jacket, height 750 mm, with in/out sleeves for cooling liquid Ø 1" gas, max. operating pressure 1.5 bar. Cooling jacket on the molded cone, height 300 mm, in AISI 304 stainless steel, with in/out sleeves for refrigerant liquid Ø 1" gas, max. operating pressure 1.5 bar. Cylinder and bottom insulation with 60 mm Armaflex-type adhesive insulation. Bimetallic thermometer in AISI 304 stainless steel, scale -10/+50°C, stem length 200 mm. Additional stainless steel probe holder, length 300 mm. Sample tap Din 15 in AISI 304 stainless steel. Total discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Partial discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel for dry-hopping. Four adjustable legs with M 20 feet in AISI 304 stainless steel. 3-bar safety valve with 1/2" threaded connection in AISI 304 stainless steel. Technical features: made of AISI 304 stainless steel, 25/10 mm thick. BA glossy internal finish with satin welds, flower-patterned external finish with satin welds. Conical bottom 60° and conical lid 10°. Capacity: 950 L +/- 3%. Internal diameter: 930 mm. External diameter: 1150 mm. Cylinder height: 1000 mm. Leg height: 1420 mm. Total height: 2850 mm.

Stainless steel isobaric tank for beer fermentation and storage, pressure holding 3 Bar, ideal for maturation and dry-hopping. Thanks to the pressure seal, it is suitable for all companies and breweries requiring isobaric fermentation. The natural carbonation of the beer is caused by carbon dioxide produced by yeasts during fermentation in an airtight container without the addition of sugars. Provided with: upper manhole cover Ø 400, frame height 80 mm, hooks closure, side, and flag opening. Two stainless steel lifting and handling handles. AISI 304 stainless steel Din 50 vacuum breaker vent valve. Predisposition for safety valve with 1/2" female threaded connection in AISI 304 stainless steel. AISI 304 stainless steel 500 mm ladder support. Removable internal spray ball Ø 65 AISI 316. Removable Din 32 AISI 304 washing hose. AISI 304 cross-shaped connection, 0–5 bar pressure gauge housing, CO2 inlet butterfly valve Din 32 male-swivel / 32 Din female, predisposition for bubbler connection Din 32 female. Inwards level indicator with stainless steel protection, complete with upper and lower level holders Din 15 x tube Ø 12, connected to the washing tube for easy cleaning. AISI 304 stainless steel cylinder cooling jacket, height 750 mm, with in/out sleeves for cooling liquid Ø 1" gas, max. operating pressure 1.5 bar. Cooling jacket on the molded cone, height 300 mm, in AISI 304 stainless steel, with in/out sleeves for refrigerant liquid Ø 1" gas, max. operating pressure 1.5 bar. Cylinder and bottom insulation with 60 mm Armaflex-type adhesive insulation. Bimetallic thermometer in AISI 304 stainless steel, scale -10/+50°C, stem length 200 mm. Additional stainless steel probe holder, length 300 mm. Sample tap Din 15 in AISI 304 stainless steel. Total discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Partial discharge with butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel. Butterfly valve Din 32 male-swivel / 32 Din female in AISI 304 stainless steel for dry-hopping. Four adjustable legs with M 20 feet in AISI 304 stainless steel. 3-bar safety valve with 1/2" threaded connection in AISI 304 stainless steel. Technical features: made of AISI 304 stainless steel, 25/10 mm thick. BA glossy internal finish with satin welds, flower-patterned external finish with satin welds. Conical bottom 60° and conical lid 10°. Capacity: 1100 L +/- 3%. Internal diameter: 930 mm. External diameter: 1150 mm. Cylinder height: 1250 mm. Leg height: 1420 mm. Total height: 3100 mm.

Tank accessories for fermentation or airtight storage. The set includes a floating cover, a hand pump, a seal, a water lock and an outer dust cover seal..The size of the tank can vary up to max. +/-10%

A rubber seal is necessary if you want to make the top lid of the container airtight for the purpose of fermentation. An airlock is placed on the top cover..The size of the tank can vary up to max. +/-10%

500l container on wheels with ready mixer connection on the side. The mixer is not included in the price. The container has a diameter of 796 mm and a height of 1700 mm. Additional options: moving with a forklift, mixer.The size of the tank can vary up to max. +/-10%

Plastic cap with internal thread and seal.

Plastic cap with internal thread and seal.
