Cooling Tube Coolossus Gen2 1.5" TC Wort Connection, 1/2" Water Connection, Counterflow
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 20000000540463
Brand:
Unit: tk
Stock qty: On special order
Leveranstid inom Estland för lagervaror ca 3-5 arbetsdagar. OBS! På grund av den snabba prisökningen kan priser för icke-lagervaror ändras utan föregående meddelande! Standardpriser med 22% moms.
Price:
269,00 €

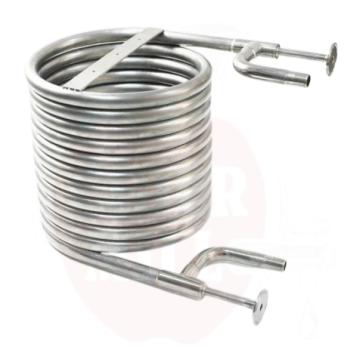

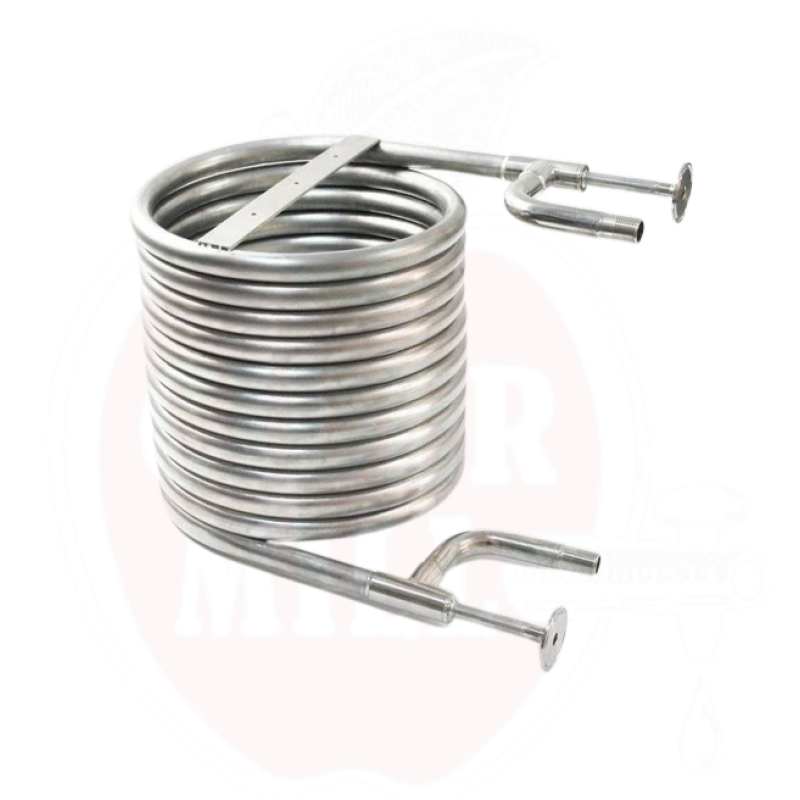

Coolossus Gen2 Professional Counterflow Chiller
Coolossus Gen2 is an industrial-grade 9.5-meter passivated stainless steel counterflow chiller equipped with 1.5" Tri Clover wort connections and 1/2" water connections.
This powerful cooling tube is specifically designed for professional beer brewing, offering maximum performance and reliability. Thanks to its 304 stainless steel construction, the device is perfectly suited for making hop-enriched beers.
Key Features:
- Fully passivated 304 stainless steel construction
- Professional 1.5" Tri Clover connections
- Clog-resistant design
- Compatible with StellarSoda products
Technical Specifications:
- Cooling tube dimensions: 21 mm (inner diameter) × 22 mm (outer diameter) × 9 m
- Wort tube dimensions: 11.9 mm (inner diameter) × 12.7 mm (outer diameter) × 9.5 m
- Device height: 280 mm
- Device diameter: 180 mm
- Connections: 1/2" BSPT water connections, 1.5" Tri Clover wort connections
- Transfer capacity 300w per ΔT_lC when cooling/heating water speed is 3x faster 394W/ΔT_1
Operating Principle:
The chiller uses counterflow technology, where hot wort and cooling water flow in opposite directions through separate channels. This technology ensures maximum heat transfer and efficient cooling process while maintaining beer quality.
Updates:
Gen 2.1 version includes reinforced 3 mm steel plate with three 4 mm mounting holes, ensuring even better durability and ease of use.
Coolossus Gen2 is the ideal choice for both professional brewers and demanding home brewers who want to achieve the best possible cooling results.
Keywords: cooling tube, beer brewing, counterflow chiller, stainless steel, brewing equipment, brewing device, tri clover connections, brewing supplies
| Weight (kg) | 0.000000 |
| High (m) | 0.28 |
| Width (m) | 0.18 |
| Length (m) | 0.18 |
