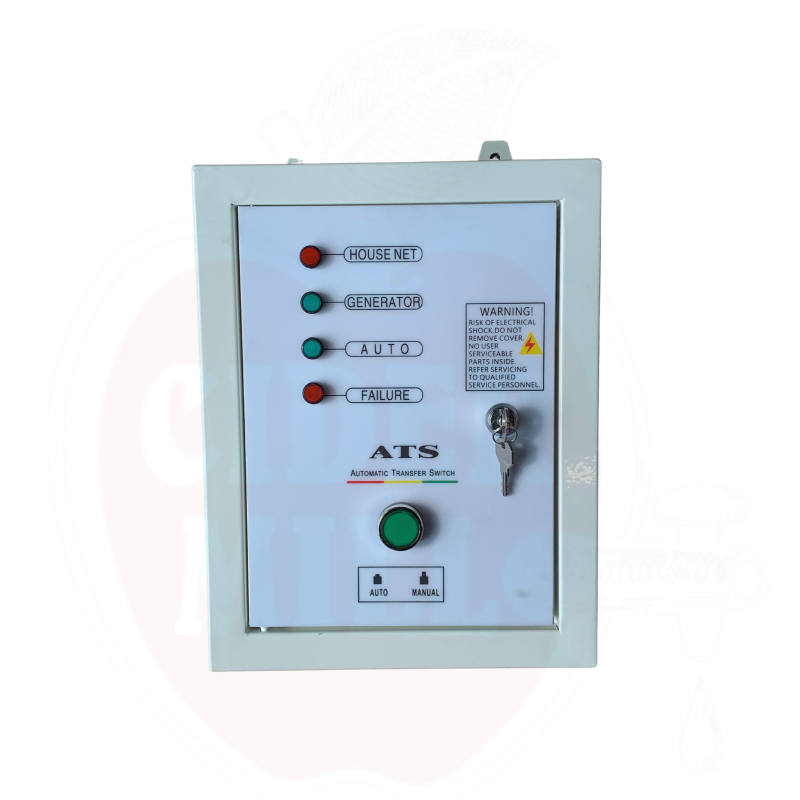

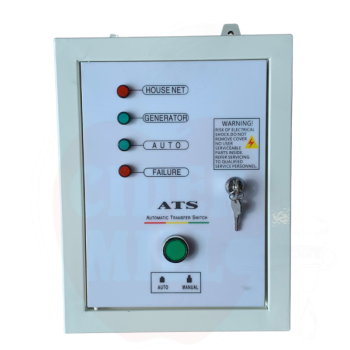

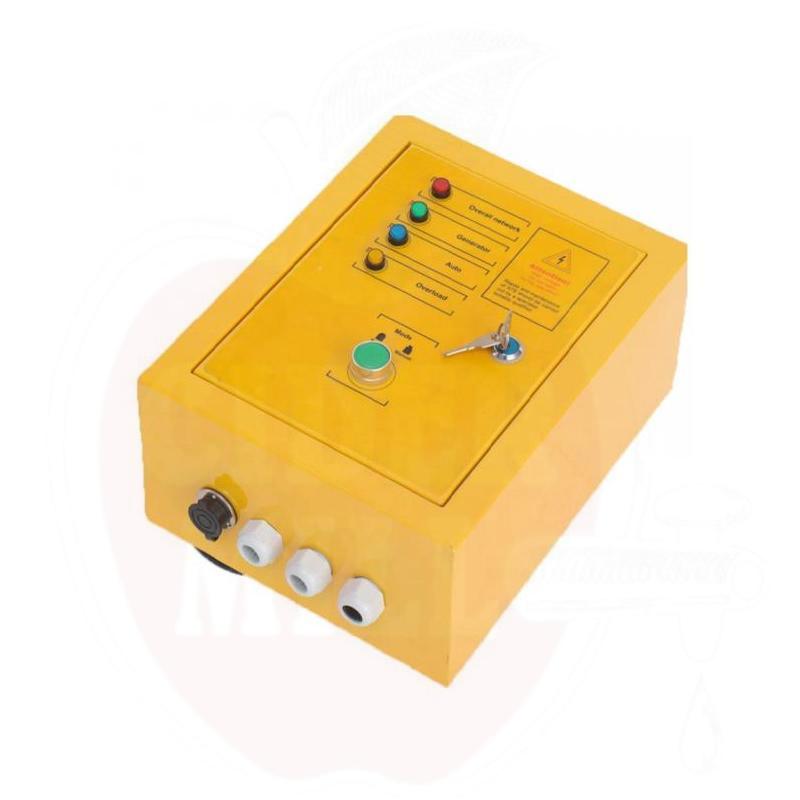

Control box ATS 8-15 KW 3Phase 400V

Automatic Control Panel for Power Outage Management A reliable automatic control panel ensures smooth operation of your equipment even during power outages. The device activates immediately during a power failure, ensuring the continuity of your production process. Key features: Quick startup time during power outage, fully automatic system, independent off-grid operation, easy installation and maintenance. The control panel is ideal for industrial equipment and production lines where operational continuity is critical. The device ensures automatic switching to backup power, preventing potential production downtime and equipment damage.

6.5kW Diesel Generator - Quality Power for Industry and Home

Reliable synchronous generator with precise voltage regulation - ideal solution for both professional and home use

Main Features: High-quality electricity (THD <5%, equivalent to grid power), Economical diesel engine with low fuel consumption, Electric start system with battery, Integrated oil pressure protection system, Digital hour meter, Anti-vibration base frame, Protection system BSB1-30-P7

Technical Specifications: Maximum power: 6.5 kW (400V) / 2.1 kVA (230V), Rated power: 6.0 kW (400V) / 2.0 kW (230V), Voltage stabilization: ±2%, Frequency accuracy: ±0.5 Hz, Power quality: THD <5%, Equipped with 400V and 230V sockets

Engine Specifications: 418cc single-cylinder diesel engine, Air cooling system with direct injection, Fuel tank capacity: 12.5 L, Fuel consumption: 1.95 L/h at maximum power, Operating time with full tank: 6.5 hours

Equal Power Advantages: 3-phase operation: 6.5 kVA maximum power, 1-phase operation: 5.5 kVA (85-90% of power), Optimized phase load distribution, Compliant with EU Stage V emission standards

Service and Warranty: 12-month or 3000 operating hours warranty

Average power: 1.8 kW (petrol) / 1.5 kW (LPG). Maximum power: 2.0 kW (petrol) / 1.7 kW (LPG). Average voltage: 230V. Average frequency: 50 Hz. Current: 7.8A (petrol) / 6.6A (LPG). Mobility: Portable handle. Displacement: 79.7cc. Sine wave fluctuation: <3%. Starting system: manual start. Fuel tank volume: 5L. Fuel consumption ratio @100%: 1.1L/H. Fuel consumption ratio @50%: 0.6L/H. Fuel: petrol / liquefied petroleum gas (LPG). Recommended oil: SAE 10W-40. Protection: overload warning. Dimensions (L×W×H) mm: 605 × 350 × 510 mm. Net weight: 20 kg. The ECO throttle increases fuel efficiency, long operating times and engine life.

Average power: 3.0 kW (petrol) / 2.6 kW (LPG). Maximum power: 3.5 kW (petrol) / 3.0 kW (LPG). Average voltage: 230V. Average frequency: 50 Hz. Current: 13.1A (petrol) / 11.4A (LPG). Mobility: Portable handle. Displacement: 141cc. Sine wave fluctuation: <3%. Starting system: manual start and electronic start. Fuel tank capacity: 6L. Fuel consumption ratio @100%: 1.8L/H. Fuel consumption ratio @50%: 1.1L/H. Fuel: petrol / liquefied petroleum gas (LPG). Recommended oil: SAE 10W-40. Protection: overload warning. Dimensions (L×W×H) mm: 590 × 365 × 530 mm. Net weight: 28 kg. The ECO throttle increases fuel efficiency, long operating times and engine life.

Automatic Control Panel for Power Outage Management A reliable automatic control panel ensures smooth operation of your equipment even during power outages. The device activates immediately during a power failure, ensuring the continuity of your production process. Key features: Quick startup time during power outage, fully automatic system, independent off-grid operation, easy installation and maintenance. The control panel is ideal for industrial equipment and production lines where operational continuity is critical. The device ensures automatic switching to backup power, preventing potential production downtime and equipment damage.

6.5kW Diesel Generator - Quality Power for Industry and Home

Reliable synchronous generator with precise voltage regulation - ideal solution for both professional and home use

Main Features: High-quality electricity (THD <5%, equivalent to grid power), Economical diesel engine with low fuel consumption, Electric start system with battery, Integrated oil pressure protection system, Digital hour meter, Anti-vibration base frame, Protection system BSB1-30-P7

Technical Specifications: Maximum power: 6.5 kW (400V) / 2.1 kVA (230V), Rated power: 6.0 kW (400V) / 2.0 kW (230V), Voltage stabilization: ±2%, Frequency accuracy: ±0.5 Hz, Power quality: THD <5%, Equipped with 400V and 230V sockets

Engine Specifications: 418cc single-cylinder diesel engine, Air cooling system with direct injection, Fuel tank capacity: 12.5 L, Fuel consumption: 1.95 L/h at maximum power, Operating time with full tank: 6.5 hours

Equal Power Advantages: 3-phase operation: 6.5 kVA maximum power, 1-phase operation: 5.5 kVA (85-90% of power), Optimized phase load distribution, Compliant with EU Stage V emission standards

Service and Warranty: 12-month or 3000 operating hours warranty

Average power: 1.8 kW (petrol) / 1.5 kW (LPG). Maximum power: 2.0 kW (petrol) / 1.7 kW (LPG). Average voltage: 230V. Average frequency: 50 Hz. Current: 7.8A (petrol) / 6.6A (LPG). Mobility: Portable handle. Displacement: 79.7cc. Sine wave fluctuation: <3%. Starting system: manual start. Fuel tank volume: 5L. Fuel consumption ratio @100%: 1.1L/H. Fuel consumption ratio @50%: 0.6L/H. Fuel: petrol / liquefied petroleum gas (LPG). Recommended oil: SAE 10W-40. Protection: overload warning. Dimensions (L×W×H) mm: 605 × 350 × 510 mm. Net weight: 20 kg. The ECO throttle increases fuel efficiency, long operating times and engine life.

Average power: 3.0 kW (petrol) / 2.6 kW (LPG). Maximum power: 3.5 kW (petrol) / 3.0 kW (LPG). Average voltage: 230V. Average frequency: 50 Hz. Current: 13.1A (petrol) / 11.4A (LPG). Mobility: Portable handle. Displacement: 141cc. Sine wave fluctuation: <3%. Starting system: manual start and electronic start. Fuel tank capacity: 6L. Fuel consumption ratio @100%: 1.8L/H. Fuel consumption ratio @50%: 1.1L/H. Fuel: petrol / liquefied petroleum gas (LPG). Recommended oil: SAE 10W-40. Protection: overload warning. Dimensions (L×W×H) mm: 590 × 365 × 530 mm. Net weight: 28 kg. The ECO throttle increases fuel efficiency, long operating times and engine life.

15.5kW Diesel Generator - Professional Industrial Power Solution Reliable synchronous generator with innovative Wava alternator system - ideal solution for industrial use Key Features High-quality electricity (THD <5%, equivalent to grid quality) Innovative Wava alternator technology Reliable 2V95 diesel engine Convenient electric start system Precise HJ502 digital control panel Integrated pre-heating function ATS-ready for automatic startup Advanced liquid-cooled magnetic circuit breaker Easy to transport with two rotating and two fixed wheels Technical Specifications Continuous power: 15.0 kW Peak power: 15.5 kW Precise voltage regulation: ±2% Frequency accuracy: ±0.5 Hz Low harmonic distortion (THD): <5% Versatile connections: Industrial 400V three-phase output Two 230V 16A sockets 230V terminal connection Automatic overload protection activates at 105-110% power Equal Power Technology Benefits Three-phase mode: full power 15.5 kVA Single-phase mode: optimized power 13.2-14 kVA Efficient power distribution technology in single-phase use Flexible phase load balance up to 30% difference Service and Warranty Terms
