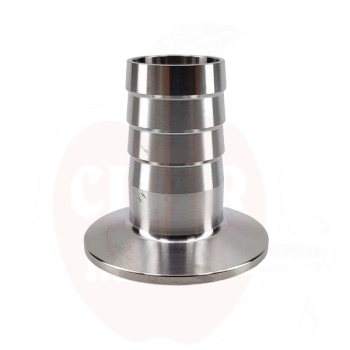

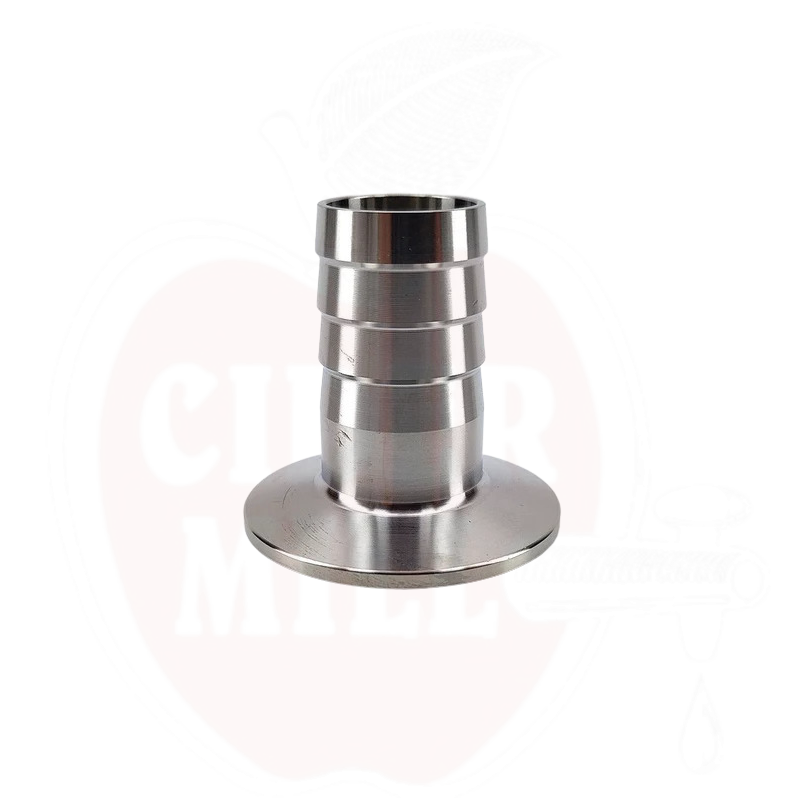

Clamp Coupling 1.5"/50.5mm for 25mm hose, tri-clamp

1.5 Inch Tri Clover with 25 mm Barb

The 1.5" (38.1 mm) Tri Clamp connection with a 25 mm barb fitting is a durable and efficient solution for fluid transport in both industrial and domestic applications. This connection is ideally suited for our braided, reinforced silicone hose with an inner diameter of 22 mm and outer diameter of 32 mm (available in 10-meter length rolls in bags).

Usage:
Tri Clover connections are widely used in the brewing industry, wine production, dairy industry, pharmaceuticals, and other fields where quick and hygienic connection/disconnection of fluids is important. The connection attaches firmly and tightly, ensuring a leak-proof system. The barb fitting allows for easy hose connection while providing a strong grip.

Features:
- Material: Stainless steel (compliant with food industry standards)
- Tri Clover diameter: 1.5" (38.1 mm)
- Barb fitting diameter: 25 mm
- Compatible with hoses with 22 mm inner diameter
- Easy to clean and maintain
- Resistant to rust and corrosion
- Suitable for use in food industry and other fields requiring hygienic environments

Installation:
1. Connect the hose to the 25 mm barb fitting
2. Secure the Tri Clover clamp between both parts to be connected
3. Tighten the clamp evenly to ensure a leak-proof connection
