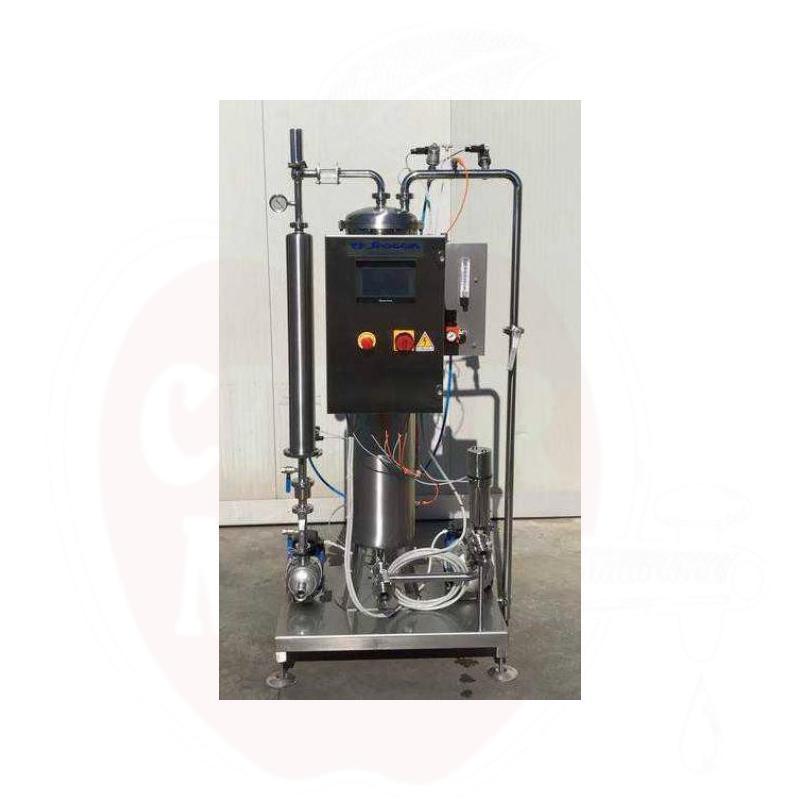

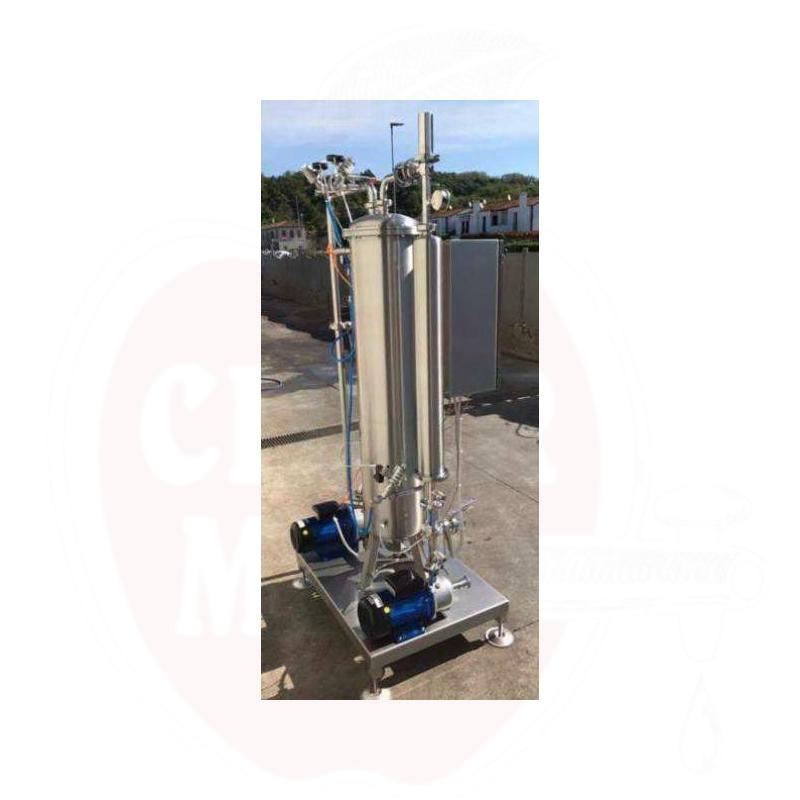

Carbonizer Eco Micro Line up to 500l/h

In-line carbonator for carbonation of cider, beer, wine or water up to 6bar. Technical information: stainless AISI 304 body 6bar, non-return valve at the inlet, pneumatic outlet valve, insulated container, drain valve, automatic pressure valve 6bar, pressure indicator, electronic pressure relay, electronic sensors min. and max. capacity. CO2 valves. CO2 unit: pressure valve manually adjustable and pressure indicator, automatic supply valve on the carbonation chamber, CO2 inflow indicator with adjustment. Beverage/raw feed unit: stainless pump, pressure valve with adjustment, non-return valve. Output unit: stainless pump, check valve, pneumatic valve. Control panel: stainless IP55, main switch, emergency switch, 7" LED touch screen. General information: device on wheels, DIN clamp connections, max. power 2kw. Accessories: stainless steel AISI 316, electronic raw material flow meter, CO2 preheating, pressure tank 500l  6bar, heat exchanger raw material with a separate cooling unit for cooling..
