Carbonisator Ribagas 4

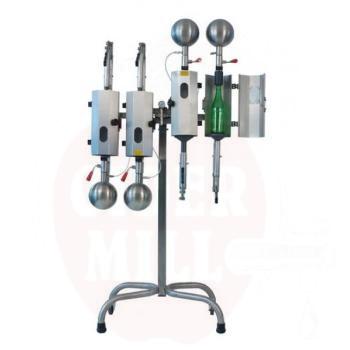

Professional Beverage Carbonation Device An innovative stainless steel carbonation device efficiently turns wines and ciders into sparkling beverages. The device operates with a productivity of up to 140 liters per hour, ensuring fast and high-quality results. Technical Specifications and Features: Material: stainless steel, Productivity: up to 140 l/h, Optimal carbonation temperature: +4°C, CO2 pressure: 2.6 bar (9.9 g/l), Dimensions: 450 x 500 x 1760 mm, Suitable bottle neck diameter: 21-29 mm, Minimum bottle height: 210 mm. Operating Instructions: Fill the pressure-resistant bottle with desired beverage, Place the bottle in the device, Close the device door, Turn the device twice for CO2 dosing, Remove the bottle with carbonated beverage. The device is ideal for carbonating wine and cider, enhancing the beverage's aroma and taste. Note! The device is not intended for beer carbonation.

Industrial Carbonator for Beverage Carbonation. Professional stainless steel carbonation equipment for processing cider, beer, wine, and water. Enables efficient carbonation at pressures up to 4 bar. Technical Specifications: Tank capacity: 25 liters. Material: 10mm stainless steel AISI 304. Maximum working pressure: 3-4 bar. CO2 dosing: 5-10g. Connections and Installation: DIN40 standard connections. Triclamp 52 output. Electrical connection: 400V. Power consumption: 2.5 kW/h. Operating Conditions and Dimensions: Optimal operating temperature: +2°C to +7°C. Minimum operating temperature: +10°C. Dimensions: 80x80x160 cm. Weight: 165 kg. Equipment cleaning and disinfection is performed efficiently using a centrifugal pump, ensuring hygienic production process. Carbonation occurs through natural pressurization method, ensuring high-quality end result.

Professional carbonator for beverage carbonation The efficient flow-through carbonator is equipped with a high-quality carbonation stone and practical viewing window that allows process monitoring. The device is an ideal solution for carbonating chilled beverages using pump-circulation technology. Main features of the carbonator: Modern flow-through technology, built-in viewing window for process monitoring, includes high-quality carbonation stone, standard DIN40 connection, suitable for industrial use. The carbonator ensures uniform and controlled carbonation process in a single tank. The device construction allows efficient pump circulation, ensuring optimal CO2 mixing with the beverage. Thanks to the DIN40 standard connection, the device is compatible with most industrial tanks and pumps, ensuring easy installation and use.

Industrial Stainless Steel Carbonator for Chilled Beverages High-quality stainless steel carbonator ensures efficient and uniform addition of carbon dioxide to beverages. The device operates on a flow-through principle, enabling quick and effective carbonation process. Main Features of the Carbonator: Made from food-grade stainless steel, includes special carbonation stone, DIN40 connection ensures easy installation, suitable for pump-circulation tank systems. Application: Ideal solution for carbonating chilled beverages in tanks. Thanks to the pump-circulation system, you achieve uniform carbonation results throughout the beverage. Technical Specifications: Material: Stainless Steel, Connection type: DIN40, Package includes: Carbonator and 1 carbonation stone.

Carbonation Kit for Beverage Production Professional carbonation kit that enables efficient and safe addition of carbon dioxide to beverages. The kit is made of high-quality stainless steel, ensuring long-term durability and hygienic processing. Components included in the kit: Powerful circulation pump, Stainless steel carbonator with transparent sight glass, Integrated stainless steel diffuser, Pressure vessel connections (DIN standard compliant), Necessary fittings and hoses for circulation. The system is designed to ensure uniform and controlled carbonation process, where liquid circulates through the system, allowing optimal carbon dioxide mixing. All connections are equipped with quality seals and fixtures that ensure complete hermetic sealing during processing. Note: Product photo is illustrative

Flow-Through Beverage Carbonator - Professional Solution The efficient flow-through carbonator is equipped with a quality carbonation stone and practical viewing window that allows process monitoring. The device is ideal for carbonating chilled beverages using a pump circulation system in one tank. Main Features of the Carbonator: Includes 1 professional carbonation stone Triclamp 1.5" connection ensures secure attachment Transparent viewing window for process monitoring Suitable for industrial use This carbonation device is particularly suitable for small producers and beverage industries who want to carbonate their products efficiently and with high quality. The flow-through system ensures uniform carbonation and long-term reliability of the device. Technical Advantages: Uniform CO2 distribution Easy to clean and maintain Durable construction Efficient pump circulation

In-line Carbonator for Beverage Carbonation - Professional Solution. Fully automatic carbonation unit for processing cider, beer, wine, and water, enabling precise CO2 addition with pressure up to 6 bar. Main Features and Construction: Durable AISI 304 stainless steel housing, insulated tank for optimal temperature control, built-in check valves and pneumatic valves, 7-inch touch-sensitive LED screen for convenient control. Technical Equipment: Electronic pressure switch for precise pressure control, automatic level sensors for min/max volume, adjustable CO2 system with flow indicator, stainless steel pumps for raw material handling. Safety and Control: IP55 standard compliant control panel, integrated safety systems, automatic 6-bar pressure control, DIN-standard clamp connections. Additional Options: AISI 316 stainless steel special components, electronic flow meter for precise dosing, CO2 pre-heating system, 500-liter pressure vessel (6 bar), heat exchanger with separate cooling unit. Maximum power consumption 2kW. Unit is equipped with wheels for easier relocation.

Blichmann™ QuickCarb™ - Rapid Carbonation Device for Beer and Cider The revolutionary Blichmann™ QuickCarb™ allows carbonation of a 19L KEG pressure vessel content in less than an hour. This patented device ensures precise and quick results for both beer and cider production. Main features: High-quality stainless steel diffusion stone Quiet and reliable operation process 10-micron porous structure ensures effective carbonation QuickConnector™ fittings for easy cleaning Kit includes: Stainless steel diffusion stone Circulation pump DC transformer QuickConnector™ fittings Additionally requires a CO2 cylinder and regulator for use (not included in the kit).

Industrial Carbonator for Beverage Carbonation. Professional stainless steel carbonation equipment for processing cider, beer, wine, and water. Enables efficient carbonation at pressures up to 4 bar. Technical Specifications: Tank capacity: 25 liters. Material: 10mm stainless steel AISI 304. Maximum working pressure: 3-4 bar. CO2 dosing: 5-10g. Connections and Installation: DIN40 standard connections. Triclamp 52 output. Electrical connection: 400V. Power consumption: 2.5 kW/h. Operating Conditions and Dimensions: Optimal operating temperature: +2°C to +7°C. Minimum operating temperature: +10°C. Dimensions: 80x80x160 cm. Weight: 165 kg. Equipment cleaning and disinfection is performed efficiently using a centrifugal pump, ensuring hygienic production process. Carbonation occurs through natural pressurization method, ensuring high-quality end result.

Three-Tank Industrial Carbonator for Carbonated Beverage Production The fully automatic carbonator is equipped with three special tanks ensuring an efficient production process: Syrup tank for concentrate, Mixing tank for component homogenization, Final product tank for carbonated beverage. Precise dosing is performed by an automatic pump that adds syrup directly into the water flow. The mixture then passes through the carbonator where carbon dioxide (CO2) is added. The finished product moves through a closed system directly to the filling machine. Technical Specifications: Production capacity: 1000 liters per hour, Maximum closed tank pressure: 10 bar, Operating cycle pressure: 2-4 bar, Electrical system: 400V, 50Hz, 3kW, Water connection: ½-inch, 1500 l/h, 3-6 bar, Device dimensions: 1500x500x1690 mm, Weight: approximately 150 kg. Usage Instructions: Water used must be pre-cooled, System needs syrup addition only periodically, Mixing ratio is determined upon ordering.

ULTIMATE Growler 2L - Professional Beverage Container Made of High-Quality Stainless Steel Enhanced MK2 model double-walled vacuum-insulated beverage container, made of durable 304 stainless steel. Perfect for storing and transporting craft beer and other beverages. Key Features: Enhanced reliable lid sealing system, Premium quality 304 stainless steel, Effective double-wall vacuum insulation, Durable spring wire lid, Option to add tap head (sold separately). Technical Advantages: Double-wall vacuum insulation keeps beverages cold for hours, eliminating the need for a cooler. Spring wire lid withstands pressure up to 40 psi, ensuring beverage freshness and carbonation. Safety and Quality: The spring-loaded lid also functions as a safety valve, automatically releasing excess pressure and preventing device damage. 304 stainless steel provides complete protection against oxygen and UV radiation. Applications: Perfect for transporting and storing craft beer, soft drinks, and other beverages. Compatible with Drafto kit, enabling creation of a mobile keg system. Note: Kit does not include regulator, tap head, or 16-gram cartridges - these are available separately as accessories. Thanks to innovative MK2 design and durable construction, this growler is one of the most reliable and highest quality beverage containers available on the market.
