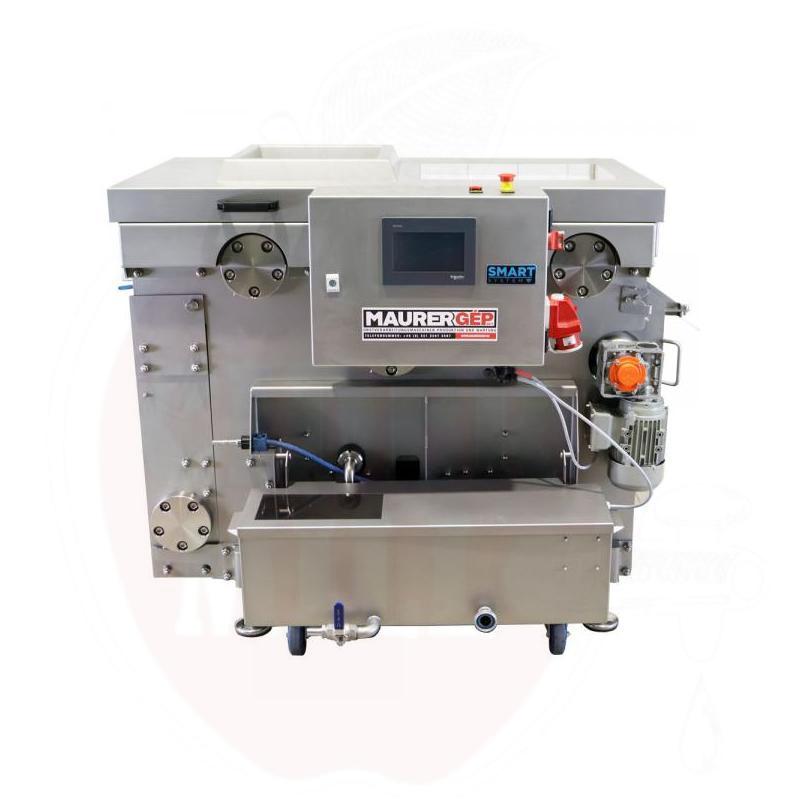

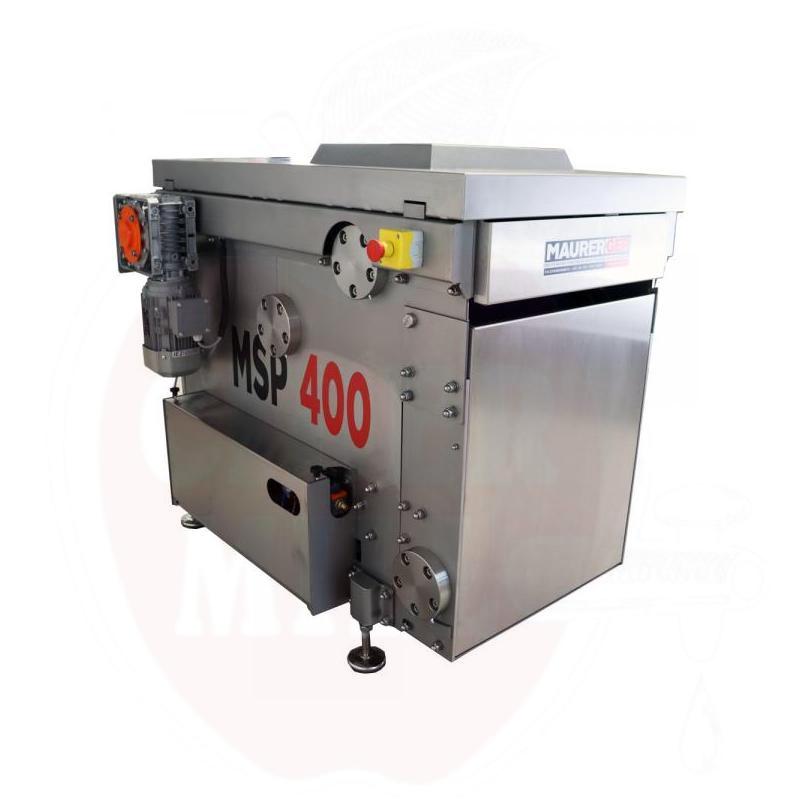

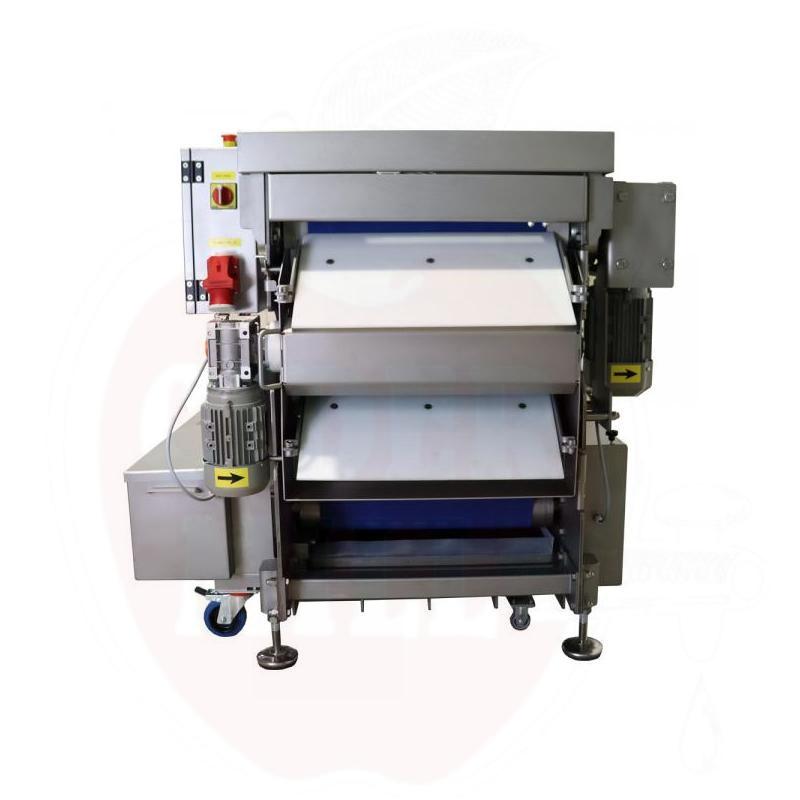

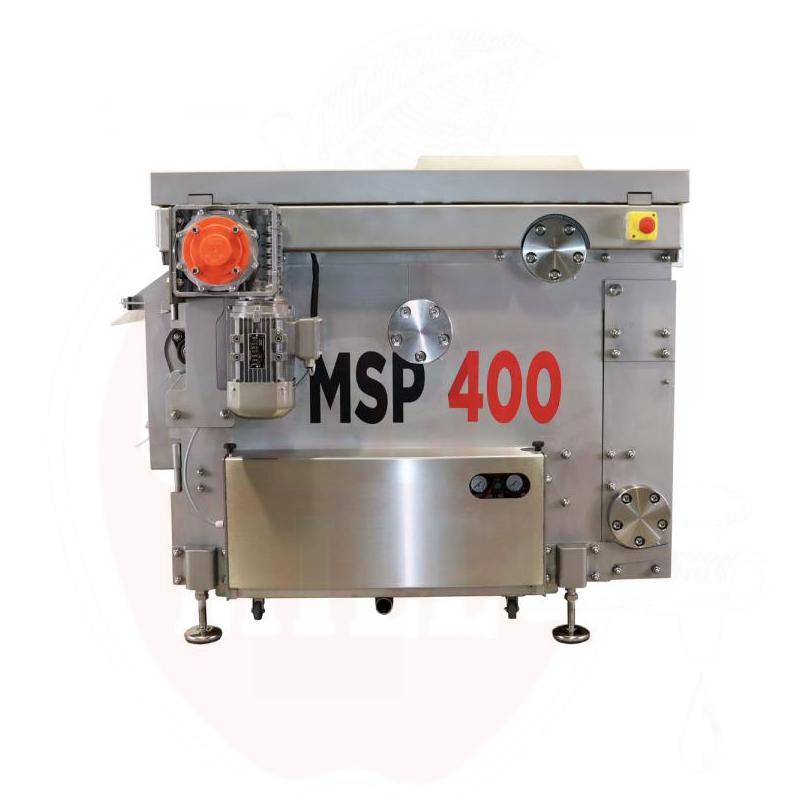

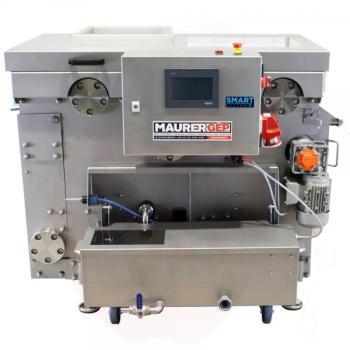

Beltpress Maurer MSP 400kg

Made in Italy. Collecting tank with stainless pre-filter. Material: stainless steel AISI 304. On lockable wheels. Dimensions: 600x700x390mm. Manufacturer: Enoitalia (Italy)..

Made in Italy. Collecting tank with stainless pre-filter. Material: stainless steel AISI 304. On lockable wheels. Dimensions: 600x700x390mm..

Fruit Washing and Crushing Device. The fruits get via the input hopper to the soaking stage. From there the elevator towards the fruit under the secondary clearwater sprays. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both directions. Mounted on 2ea. swivel, 2ea. lockable wheels or on adjustable Anti-vibration feet. Requires minimal maintenance. Specifications: Performance: 1000-2000 kg/h. Electric demands: 3 kW, 400 V, 16 A, triphase. Material: WNr. 1.4301, AISI 304 stainless steel. Dimensions: 710x3200x2120 mm. Output height: 1270 mm. Weight: 205 kg. Tub water capacity: 280 L/shift. Washing water supply: (20-100 L/h depending on the setting). Water connection: 3/4" quick connector. IP65 certified electronics. Grinder with a massive crushing hammer (also suitable for beetroot and quince). Noise emission: 60-70 dB. Available options: Changeable diameter sieve: for changing the texture of the mash. Stop 'n' Go system: membrane sensor, which synchronizes the fruit washer/grinder and the belt press to work together. Adaptive freshwater spray - fresh water spray nozzles are active only when the elevator is going. Air-blow module - built-in air nozzles in the tub area powered by a turbo-fan for the intense washing or sinking fruits. Air-knife module - the air-knife removes the water droplets on the surface of the fruits, thus reducing the amount of water reaching the end product. Circulating water pump with raw filter. The principle of the device is to clean and crush fruits before juice pressing, ensuring a cleaner and higher quality end product. The device is designed for professional use in the food industry and juice production.

Stop-and-start system with a sensor to control the washing machine..

Fruit Washing and Crushing Device. The fruits go to the input hopper, then after soaking move via elevator towards the secondary clear water spray system. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both ways, with 2 rotating, 2 fixed wheels or vibration-free feet. Requires minimal maintenance. Technical details: Performance: 1500-2000 kg/h. Electric demands: 4 kW, 400 V, 16 A. Material: Wnr. 1.4301, AISI 304 stainless steel. Weight: 275 kg. Tub water capacity: 280 L. Washing water supply: 100-200 L/h (depending on the setting). Water connection: ¾" quick connector. IP65 certified electronics. Grinder with a massive crushing hammer (available for beetroot and quince). The grinder can be by-passed and turned, this way the machine is capable of processing stone-fruits. Noise emission: 60-70 dB. 4 pcs of strong, counter-rotating brushes for intense cleaning. Requires minimal maintenance. Adjustable belt speed. Options: Changeable diameter sieve: for changing the texture of the mash. Stop 'n' Go system: membrane sensor that allows the fruit washer/grinder and the belt press to work together. Dosing module: sliding door with end-switch that allows safe dosing from the grinder to the pack press. The principle of the device is to clean and crush fruits before juice pressing, ensuring a cleaner and higher quality end product. The device is designed for professional use in the food industry and juice production.

Stainless fruit and vegetable washing and crushing device with auger lifting device. Immediately after cleaning, the product is transported to the crusher by means of an auger. Pre-cleaning of products using water pressure valves and pre-cleaning brushes. Material: stainless (1.4301); Crusher productivity: 2000kg/h. Manufacturer: Maurer Additional price: belt baler start/stop automation, bale baler dispenser.

Belt press accessory: press belt for MKSP 300 model..

High-quality pressure washer in a stainless case for industrial and everyday use. Max pressure 220 bar. Rated power 4kW. Working pressure 200bar. The maximum temperature of the incoming water is 50°C. The piston of the pump is covered with a durable ceramic coating and the motor is set to low revolutions to ensure long durability.. With adjustable pressure and flow. Hose length 10m. Weight (without accessories) 72kg. IP55. Max flow 756 l/h. Package dimensions (width x length x height) 740 x 450 x 500 mm Voltage, electric 380V/50Hz./3F..

Productivity: 740 L/h - 180 bar - 1450 rpm

The juice flowing from the belt press passes through a pre-filter and is collected in a 100L container. A collection tank with a stainless pre-filter with a pump, level sensor and control center works automatically by pumping the juice forward into the pipeline. Dimensions 546x1075x350mm, weight 50kg, pump 0.5kw/230V/6A.

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating..Technical details:- Performance: 700 kg/h- Electric demands: 1.5 kW, 400 V, 16 A- Material: Wnr. 1.4301, AISI 304 stainless steel- Weight: 890 kg Dimensions: Length:  2200 mm, Width:    1280 mm, Height:   1180 mm- IP65 certified electronics- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 360 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Food industrial, massive polyester belt, Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- Easy to clean- It requires minimal maintenanceWith adjustable vibration-free machine feet.

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating.Technical details:- Performance: 1400 kg/h- Electric demands: 1 kW, 400 V, 6 A, triphase- Material: WNr. 1.4301, AISI 304 stainless steelDimensions: Length: 2500 mm, Width:   1330 mm, Height:  1230 mm- Input height: 1250 mm- Output height: 370 mm- Weight: 760 kg- IP65 certified electronics- Food industrial, massive polyester belt- Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 500 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Easy to clean- It requires minimal maintenance- With adjustable vibration-free machine feetMKSP 1400 Belt size :Length:  8,00 mWidth:   0,65 m

Our belt presses can be disassembled without tools in minutes! Fully automatic operation with enclosed working area minimizes oxidation. Two rotating wash heads at the machine bottom ensure optimal cleaning during operation. Distance between press cylinder and juice collection tray reduces foaming. Very easy to clean. 4 vibration-free legs. Requires minimal maintenance. High-pressure washer and air compressor are essential for operation.

Technical details:
- Capacity: 1100 kg/h
- Power requirement: 1.5 kW, 400 V, 16 A
- Material: Wnr. 1.4301, AISI 304 stainless steel
- Weight: 950 kg
- Dimensions: Length: 2170 mm, Width: 1330 mm, Height: 1200 mm
- IP65 certified electronics
- High yield: 75% – depends on fruit freshness and quality
- High-pressure washer requirement: 360 L/h
- Compressed air requirement: 50 L/h 6 bar
- Built-in inverter: steplessly adjustable belt speed
- Food-grade massive polyester belt, belt: 2 mm thick, density: 6 × 16 filaments/cm^2, ½ speed (suitable for high pulp-free juice)
- Easy to clean
- Requires minimal maintenance

Keywords: juice press, belt press, fruit juice equipment, industrial juice press, stainless steel juice press, automatic juice press

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating..Technical details:- Performance: 700 kg/h- Electric demands: 1.5 kW, 400 V, 16 A- Material: Wnr. 1.4301, AISI 304 stainless steel- Weight: 890 kg Dimensions: Length:  2200 mm, Width:    1280 mm, Height:   1180 mm- IP65 certified electronics- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 360 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Food industrial, massive polyester belt, Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- Easy to clean- It requires minimal maintenanceWith adjustable vibration-free machine feet.

Our belt presses can be disassembled without any tools in few minutes! Fully automatic operation, with closed work area, reduces the oxidation to the minimum. In the bottom of the machine, there are two spinning washer heads guarantees optimal cleaning during the process. The distance between the press cylinder and the juice collector tray reduced against foaming. Very easy to clean. With 4pcs vibration-free feet. Requires minimal maintenance. High-pressure washer and air compressor are essential for operating.Technical details:- Performance: 1400 kg/h- Electric demands: 1 kW, 400 V, 6 A, triphase- Material: WNr. 1.4301, AISI 304 stainless steelDimensions: Length: 2500 mm, Width:   1330 mm, Height:  1230 mm- Input height: 1250 mm- Output height: 370 mm- Weight: 760 kg- IP65 certified electronics- Food industrial, massive polyester belt- Belt: 2mm thick, density: 6×16 filament/cm^2, ½ rate (suitable for large fiber-free juice)- High yield: 75% – depends on the freshness and quality of the fruits- High-pressure washer demand: 500 L/h- Compressed air demand: 50 L/h 6 bar- Built-in inverter: steplessly adjustable belt speed- Easy to clean- It requires minimal maintenance- With adjustable vibration-free machine feetMKSP 1400 Belt size :Length:  8,00 mWidth:   0,65 m

Pasteurizers are equipped with spiral heat exchangers and a hot water circulation pump. The juice tube is located inside the hot water tube with a larger diameter - hot water and the juice to be pasteurized move in opposite directions to each other, ensuring even heating of the juice. The power of the pasteurizer is stepwise adjustable according to the number of working heaters. The thermostat ensures the maintenance of the hot water temperature set by the user, which should be 4-5 degrees warmer than the temperature of the juice coming out. In the case of EHA18, EHA27 and EHA45 models, setting the juice temperature is by changing the flow rate using a manually adjustable valve, an external pump is required to feed the raw juice. EHA18E, EHA27E and EHA45E are equipped with a juice pump and the ability to automatically adjust the temperature of the juice. Pasteurizer EHA-18E productivity up to 200l/h and power is 18kw (2x9kw) 400V/32A. Warm-up time approx. 15 min. Dimensions 750x500x1150 mm, weight 150 kg. Complete device with juice pump and automatic juice/raw temperature control.

Belt press accessory: press belt for MKSP 300 model..

Productivity: 740 L/h - 180 bar - 1450 rpm
