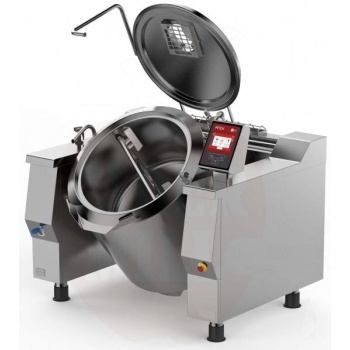

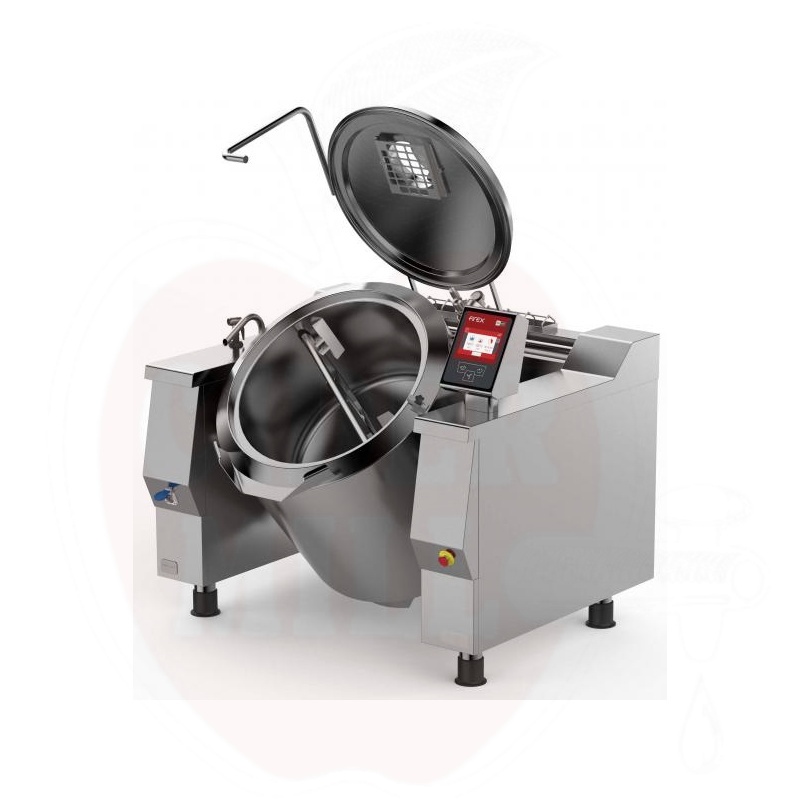

BASKETT - PRIEM_V1 - INDIRECT TITLING PANS WITH MIXER, ELECTRIC TYPE "FIREX TOUCH CONTROL"

The inner part of the boiler is made of stainless steel AISI 316 (thickness 25-40/10 and the outer shell AISI 304) on a tilting frame - specially designed for processing acidic nutrients. Adjustable legs with electric tilt and satin finish. Automatic two-pronged mixing device, fully removable blades (easy cleaning), work in both directions, in a continuous working process or according to regulation (12-40rpm) and set time (with pauses) - controlled from the control panel. The device is equipped with an overpressure valve (0.5bar), which optimizes the overpressure in the water jacket that occurs during heating. Automatic filling of the water jacket from the water supply. The electronic control panel allows you to control two temperatures: the product and the bottom temperature. Technical data: size 130l useful and total size 145 liters, mixing speed 12-40r/min, dimensions 1250x1355mm, height 950/1950mm, water jacket 0.5bar, electric power 24.6kw/400V. Additional equipment: device on wheels, outlet valve below DN50, cooling connections..
