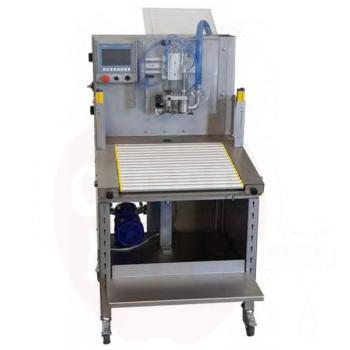

Automatic filling BB30 - with pump capacity 4500 lt/h
.png){kind=small}
Professionals recommend - producers prefer!
EAN: 2000000006840
Brand:
Unit: pc
Stock qty: On special order
Delivery time: 2025-01-31
Transport time inside Estonia for stock products approx. 3-5 working days. NOTE! Due to the rapid price increase, non stock products prices are subject to change without notice! Default prices with 22% VAT.
Video
Automatic valve removal, bottling and valve installation. Possibility of vertical bags (pouch-up) min. 1 l. Productivity 3l 380pcs, 5l 240pcs/h, 10l 210pcs and 20l 140pcs. Dimensions 800x1000x1500mm, weight 110kg. Control with touch screen PLC SIEMENS, multi-language and multi-program, Induction flow meter, Vacuum system and nitrogen injection, Automatic opening / closing of bags in Vitop standard set, Volumetric pump with self-cleaning rubber wheel impeller 900 rpm with bypass and total drain valve, Vacuum-proof filling system, Possibility to fill flexible bags or bag ( higher type) since then, min. bottling with 1L capacity, 4-wheel stainless steel frame, Inox fitting for CIP cleaning, automatic cleaning program, Safety guard, Adjustable stainless support when filling boxes. Max. bottling temperature +90C. Bottling capacity up to 4500l/h. Induction meter accuracy class 0.2% and disinfection up to +120C. It is possible to save 10 different programs when bottling pre-calibrated liquids, which means that once a liquid/program has already been calibrated and saved, it is not necessary to perform a new calibration, but to retrieve the corresponding program from the memory Extras: electronic bottling speed control, intermediate tank with automation, compressed air compressor, automatic additional tool for special bag for caps, oil bottling accessories, filter 10" or 30", air filter..
| Weight (kg) | 0.000000 |
| High (m) | 0 |
| Width (m) | 0 |
| Length (m) | 0 |
Similar products
Fully automatic bottling device with productivity 5l bags 450pcs/h, 10l 300pcs/h, 20l 200pcs/h. Dimensions 1700x1400x2100mm. Weight 300 kg..
SKU: 8999576
, EAN: 2000000006857
, Stock qty: On special order
, Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
, Pakend: , Hulgipakend:
High-quality and semi-automatic bottling device for juice storage bags. Fully automatic bottling cycle: vacuum->fill->finish->+CO2. Productivity; 3L - 350 pcs/h; 5L-300pcs/h; 10L-180pcs/h; 20L-130pcs/h; Accuracy +/- 5cl. Power: 1.1kw + 1.5kw (220V or 380V). Air pressure: 6bar; CO2 pressure: 1bar; Dimensions: 60x82x150cm; Weight: 70 kg. Made in Italy. Included: PLC panel control with touch screen and multi-language program / Electromagnetic gauge-sensor (Burkert type), for cold liquid (such as wine / water) / vacuum system and nitrogen system / automatic piston to block the filling head / pump HP 1.5 with bypass, model EURO 30 capacity 4500lt/h / double start switch / tank filler, setting range from 1l to 30 liters / semi-automatic handle used to open/close the filling head with adjustable height / choice of open and close taps. VITOP standard (others on request) / stainless steel work table with 4 wheels / equipment cleaning fittings (CIP) / Automatic cleaning program / non-return valve in the pump system / connecting pipes and fittings (triclamp 1.5"). Complete with intermediate tank, pouch-up bags bottling option, pneumatic buffer tank shut-off valve Accessories: stainless control panel, CO2 pressure reduction valve, oil bottling accessory, bottling speed control, , compressed air compressor..
SKU: 8999383
, EAN: 2000000004815
, Stock qty: On special order
, Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
, Pakend: , Hulgipakend:
7695,00 €
High-quality and semi-automatic bottling device for bottling juice storage bags and bottles. Fully automatic bottling cycle (bags): vacuum->filling->closing->+CO2. Productivity; 3L - 350 pcs/h; 5L-300pcs/h; 10L-180pcs/h; 20L-130pcs/h; Accuracy +/- 5cl. Power: 1.1kw + 1.5kw (220V or 380V). Air pressure: 6bar; CO2 pressure: 1bar; Dimensions: 60x82x150cm; Weight: 70kg. Made in Italy. Included: PLC panel control with touch screen and multilingual program / Electromagnetic gauge-sensor (Burkert type), for cold liquid (such as wine / water) / vacuum system and nitrogen system / automatic piston to block the filling head / pump HP 1.5 with bypass capacity 4500lt /h / double start switch / bottler, setting range from 1l to 30 liters / semi-automatic handle for opening/closing the filling head with adjustable height / selection of open and close taps. VITOP standard (other on request) / stainless steel work table with 4 wheels / device cleaning fittings (CIP) / Automatic cleaning program / non-return valve in the pump system / connecting pipes and fittings (triclamp 1.5"). On the other side of the device, bottle bottling nozzles 4pcs with adjustable level. Extras : stainless control panel, CO2 pressure reduction valve, oil bottling accessory, bottling speed control, filters, pouch-up bag bottling, bag->box mounting accessory..
SKU: 29580
, EAN: 2000000029580
, Stock qty: On special order
, Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
, Pakend: , Hulgipakend:
8850,00 €
Similar products
Doselite dispenser has a stainless device that allows you to bottle liquid into doy-pack bags and close the valve. Range of dispensers (specify when ordering) 5-260ml / 20-680ml (extra +550eur) / 50-1300ml (extra +750eur). Enables bottling liquid and more viscous liquids with lumps at temperatures up to +100C. Operating operations: the operator places the bag into the slot of the device, then mechanically removes the valve using the lever of the device, at the same time the bottling tip is placed into the bag. It is possible to adjust the bottling speed and quantity. After the bag is filled, it is possible to remove excess air from the bag using a vacuum and close the valve mechanically using a lever. Working pressure 2-6bar. Extras: bottling dispensers 20-680ml (extra +550eur) / 50-1300ml (extra +750eur); conical raw material containers 15l (+600eur) and 30l (+750eur)..
SKU: 9000173
, EAN: 2000000012872
, Stock qty: On special order
, Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
, Pakend: , Hulgipakend:
.
SKU: 36915
, EAN: 2000000036915
, Stock qty: 1
99,00 €
Volumetric pump with frequency inverter. PLC for manual or automatic working. Inducion flowmeter Endress. Dosing program. Counter program. Timer program. Radiocontrol. Touchscreen da 7”. Stainless steel panel control. Inox trolley. Engine kw: 4. Power: MF/TF. Fitting: Triclover 1,5". Capacity LT/H: 0-24000.
SKU: 48797
, EAN: 487955
, Stock qty: On special order
, Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
, Pakend: , Hulgipakend: , Kuumale +95C:
Manual filler with 3F pump.• Volumetric pump EURO 30, connection DIN25• Stainless steel trolley• Stainless steel pressure tank, with no foam valve• One way stainless steel valve• Filling gun with adjustable ending DIN25• 5 meters of rubber hose diameter 20 mm• Flow meter ENO 24
SKU: 1287
, EAN: 20000000538491
, Stock qty: On special order
, Delivery time: Eritellimustoode / Please contact / Ota yhteyttä
1690,00 €
Pool-automaatne villimise seade. Eel-seadistatav dosaator-automaatika (elektromagneetiline eelseadistatav mõõdik). Villimine toimub rõhu all. Tööprotsess: operaator eemaldab korgi -> automaatne täitmine -> operaator sulgeb korgi.Lisainfo: minimaalne doseerimine 1L kalibreerimisel. Täpsus +/- 5...10cl ; sobib ka kanistrite villimiseks (max. D85mm) ; max. töötemperatuur +80C ; Lisad: pump. Tootja: Enoitalia (Itaalia).
SKU: 1359
, EAN: 20000000539207
, Stock qty: On special order
, Pakend: , Hulgipakend: , Kuumale +95C:
2290,00 €
